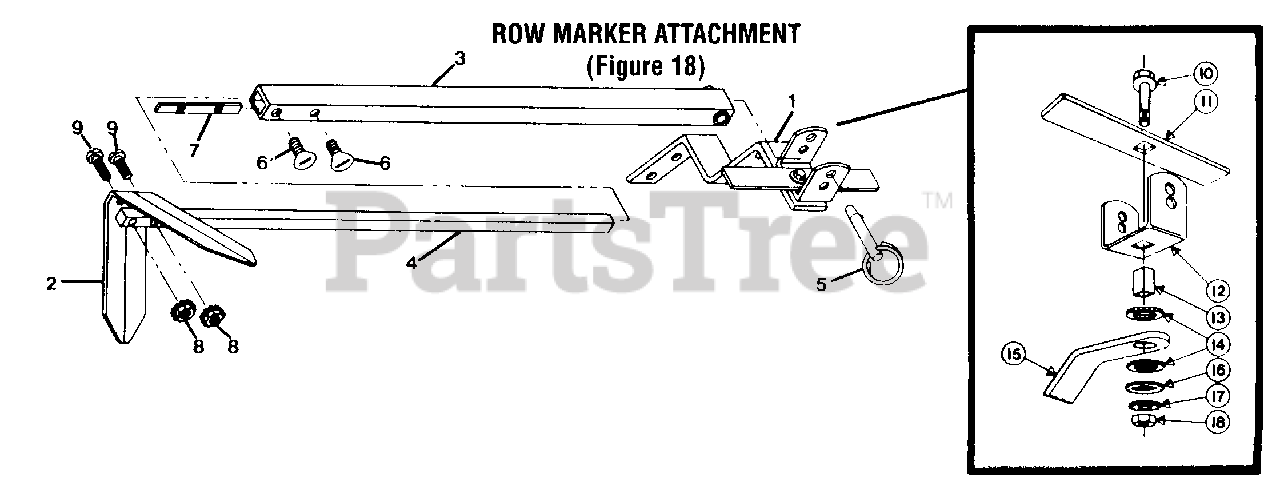

12089 (21A-550-081) - Troy-Bilt Horse Rear-Tine Tiller Row Marker Attachment Parts Diagram

Horse Rear-Tine Tiller

Row Marker Attachment Parts Diagram

  • Title

1

Troy-Bilt 1904522001

Main Support & Yoke Assy-complete

Note: (Incl. Ref. No. 10 through 18)

$

$

Currently unavailable

2

MTD 1594

Marker blade-blade only

$

$

Not available

3

MTD 1904524001

Marker arm-main arm

$

$

Not available

4

MTD 1904523001

Marker arm-extension arm with stop pin

$

$

Not available

5

Troy-Bilt 9347

Hitch Pin
(Superseded to GW-9347)

Note: (Incl. in #1837 hardware package)

$13.99

$

Usually ships in 3-6 days

0

6

MTD 9781

Thumbscrew-1/4-20 x 1/2"

Note: (Incl. in #1837 hardware package)

$

$

Not available

7

MTD 1596

Nut Bar

Note: (Incl. in #1837 hardware package)

$

$

Not available

8

MTD 9828

Nut-hex, #10-24 with star washers

Note: (Incl. in hardware pkg. #1837)

$

$

Not available

9

Troy-Bilt 1100135

Screw-round hd., #10-24 x 1

Note: (Incl. in hardware pkg. #1837)

$

$

Not available

MTD 1837

Hardware Pkg

Note: (Incl. one each Ref. No., and No. 7, and two each Ref. No.'s 6, 8 and 9.)

$

$

Not available

Troy-Bilt 1850

Row Marker & Hiller/Furrower Attachment Combination-complete

Note: (Incl. #2638 Hiller/Furrower & #1832 Row Marker.)

$

$

Currently unavailable

ROW MARKER MAIN SUPPORT & YOKE ASSEMBLY

$

$

Not available

10

Troy-Bilt 1186349

Bolt-flanged, self-locking, 3/8-16 x 1-1/2"

$3.49

$

Usually ships in 3-6 days

0

11

MTD 1593

Stop Bar

$

$

Not available

12

MTD 1592

Yoke

$

$

Not available

13

MTD 1591

Tube Key-square

$

$

Not available

14

Troy-Bilt 1590

Washer - friction
(Superseded to GW-1590)

$7.49

$

Usually ships in 3-6 days

0

15

MTD 1588

Main Support

$

$

Not available

16

MTD 1589

Washer - square hole

$

$

Not available

17

MTD 9925

Washer-disc spring

$

$

Not available

18

Troy-Bilt 1186231

Nut-hex, 3/8"-16
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0
