1210 (148-620-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Engine Mounting Parts Diagram

Garden Tractor

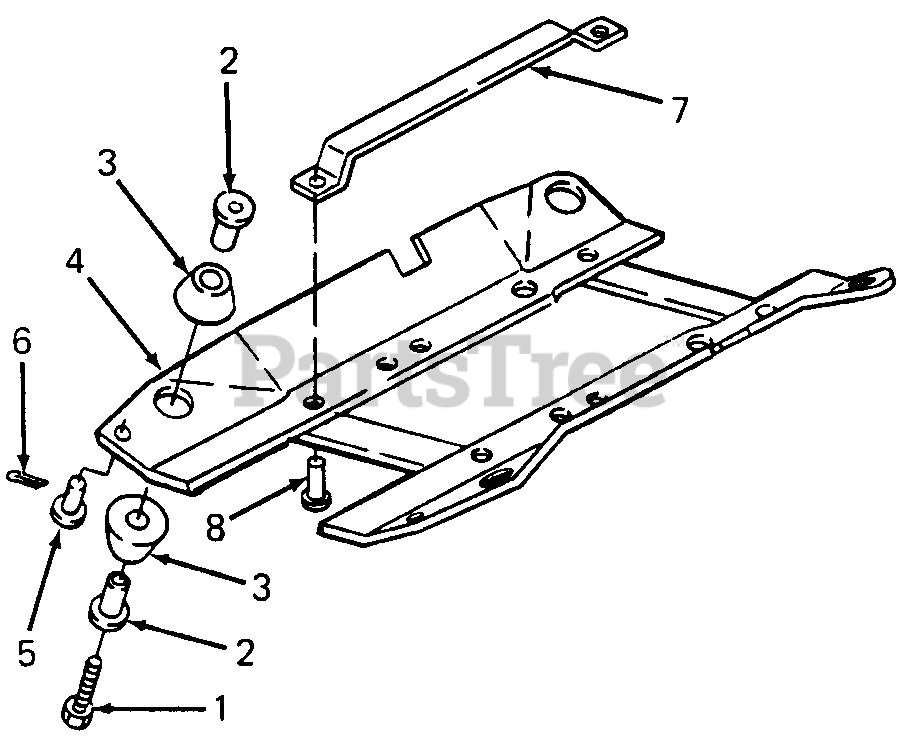

Engine Mounting Parts Diagram

  • Title

1

Cub Cadet 710-3011

Screw, Hex Cap, 3/8-16 X 2.25 Lg GR5

$7.49

$

In Stock, Qty 7

0

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 722-3003

Insert, Rubber Mount

$

$

Not available

3

Cub Cadet 722-3002

Mount, Rubber

$

$

Currently unavailable

4

Cub Cadet 703-0559

Cradle, Engine Mount

$

$

Not available

5

Cub Cadet 722-3004

Bumper, Snubbing
(Superseded to IH-61510-C1)

$29.99

$

In Stock, only 1 left!

0

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 9

0

6

Cub Cadet 703-0044

Shim, Snubbing Mount

$

$

Not available

7

Cub Cadet 703-0565

Bar, Engine Mounting

$

$

Not available

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, only 4 left!

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 11

0

8

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 16

0

Cub Cadet 712-3005

Nut, Hex Flange Lock, 3/8-16 GR5

$7.49

$

In Stock, only 4 left!

0
