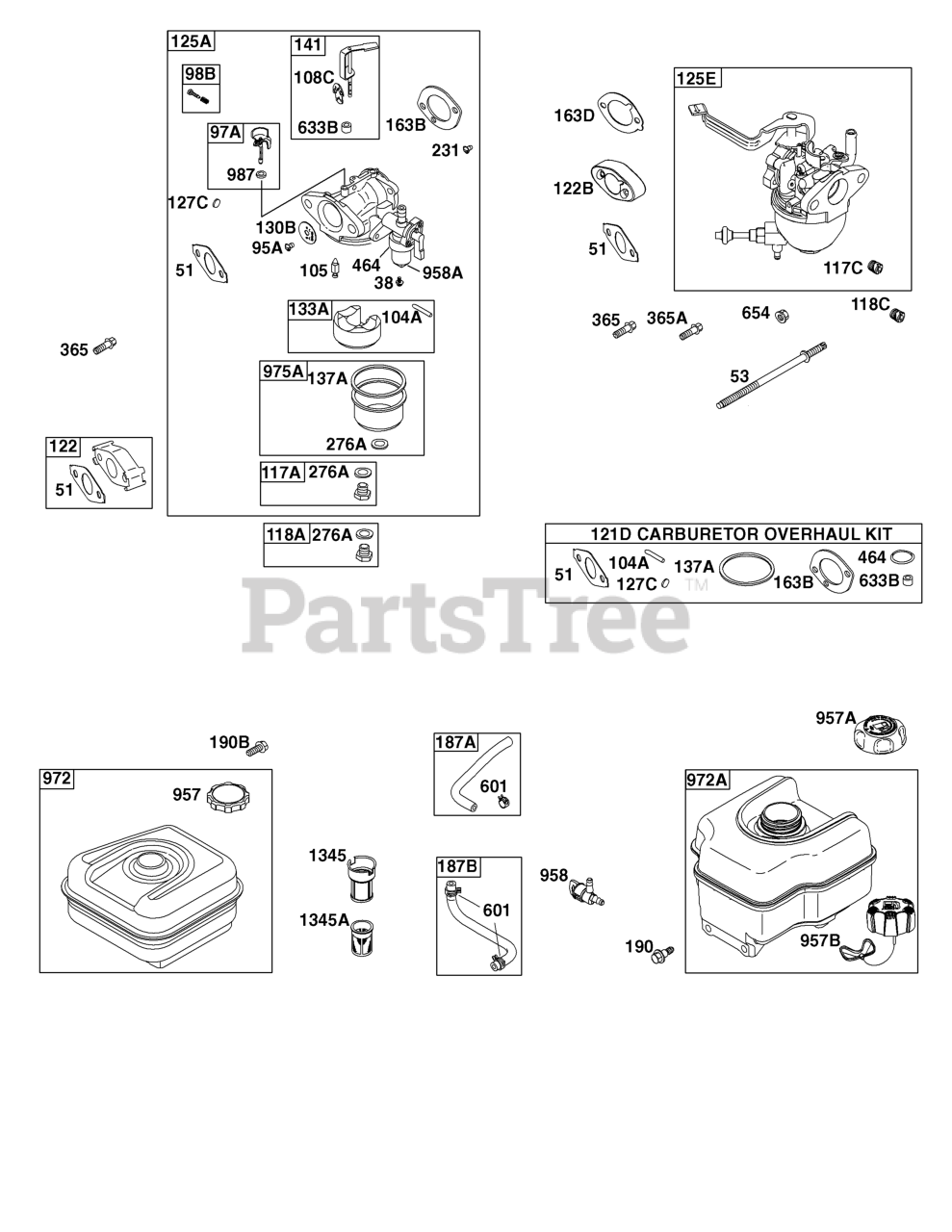

121162-0111-B8 - Briggs & Stratton Horizontal Engine Carburetor, Fuel Supply Parts Diagram

Horizontal Engine

Carburetor, Fuel Supply Parts Diagram

  • Title

38

Briggs & Stratton 698557

SCREW

Note: (Fuel Shut Off Valve)

$3.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 797174

Gasket-Intake

$4.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 797172

Stud

Note: (Carburetor)

$6.99

$

Usually ships in 2-12 days

0

95A

Briggs & Stratton 698544

Screw

Note: (Throttle Valve)

$3.49

$

Usually ships in 2-12 days

0

97A

Briggs & Stratton 698542

Shaft-Throttle

$14.99

$

Usually ships in 2-12 days

0

98B

Briggs & Stratton 698551

Kit-Idle Speed

$7.99

$

Usually ships in 2-12 days

0

104A

Briggs & Stratton 698536

Pin-Float Hinge

$5.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 698537

VALVE, Float Needle

$15.99

$

In Stock, only 1 left!

0

108C

Briggs & Stratton 698546

Valve-Choke

$4.99

$

Usually ships in 2-12 days

0

117C

Briggs & Stratton 797577

Jet-Main

Note: (Standard)

$14.99

$

Usually ships in 2-12 days

0

118C

Briggs & Stratton 797578

Jet-Main

Note: (High Altitude)

$16.99

$

Usually ships in 2-12 days

0

121D

Briggs & Stratton 797634

Kit-Carburetor Overhaul

$57.99

$

Usually ships in 2-12 days

0

122B

Briggs & Stratton 797170

Spacer-Carburetor

$11.99

$

Usually ships in 2-12 days

0

125E

Briggs & Stratton 797576

Carburetor

Note: (NO LONGER AVAILABLE)

$88.99

$

Usually ships in 2-12 days

0

127C

Briggs & Stratton 690727

PLUG, Welch

$4.49

$

In Stock, only 1 left!

0

130B

Briggs & Stratton 698543

Valve-Throttle

$7.99

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 698539

Float-Carburetor

$16.99

$

Usually ships in 2-12 days

0

137A

Briggs & Stratton 698538

Gasket-Float Bowl

$6.49

$

In Stock, only 1 left!

0

141

Briggs & Stratton 698545

Kit-Choke Shaft

$28.99

$

Usually ships in 2-12 days

0

163D

Briggs & Stratton 797171

Gasket-Air Cleaner

$7.49

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 791867

Line-Fuel

Note: (Molded)

$15.99

$

In Stock, only 1 left!

0

187B

Briggs & Stratton 791874

Line-Fuel

Note: (Molded)

$16.99

$

In Stock, Qty 8

0

190

Briggs & Stratton 699220

Screw
(Superseded to 597133)

Note: (Fuel Tank)

$4.99

$

In Stock, Qty 13

0

190B

Briggs & Stratton 795047

Screw

Note: (Fuel Tank)

$3.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

In Stock, only 1 left!

0

276A

Briggs & Stratton 698540

Washer-Sealing

$5.99

$

Usually ships in 2-12 days

0

365A

Briggs & Stratton 797173

Screw

Note: (Carburetor)

$4.49

$

Usually ships in 2-12 days

0

464

Briggs & Stratton 698550

SEAL, O-Ring

Note: (Fuel Shut-off Valve)

$7.49

$

In Stock, only 1 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

633B

Briggs & Stratton 690998

SEAL, Choke/Throttle Shaft

$7.99

$

In Stock, only 1 left!

0

654

Briggs & Stratton 690939

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 2 left!

0

957

Briggs & Stratton 794641

CAP, Fuel Tank

$20.99

$

In Stock, only 4 left!

0

957A

Briggs & Stratton 795027

Cap-Fuel Tank

Note: (Text Free)

$10.99

$

In Stock, only 2 left!

0

957B

Briggs & Stratton 799719

CAP, Fuel Tank

Note: (Carbon In Cap)

$40.99

$

In Stock, only 1 left!

0

958

Briggs & Stratton 698180

Valve-Fuel Shut Off

$11.99

$

In Stock, Qty 8

0

958A

Briggs & Stratton 698549

Valve-Fuel Shut Off

$

$

Not available

972

Briggs & Stratton 795832

Tank-Fuel

$119.99

$

Usually ships in 2-12 days

0

972A

Briggs & Stratton 799863

Tank-Fuel

$89.99

$

In Stock, Qty 18

0

975A

Briggs & Stratton 698541

Bowl-Float

$45.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 698556

Seal-Throttle Shaft

$4.99

$

Usually ships in 2-12 days

0

1345

Briggs & Stratton 699887

Filter-Filler Neck

$3.99

$

Usually ships in 2-12 days

0

1345A

Briggs & Stratton 792917

FILTER, Filler Neck

$5.49

$

In Stock, only 1 left!

0
