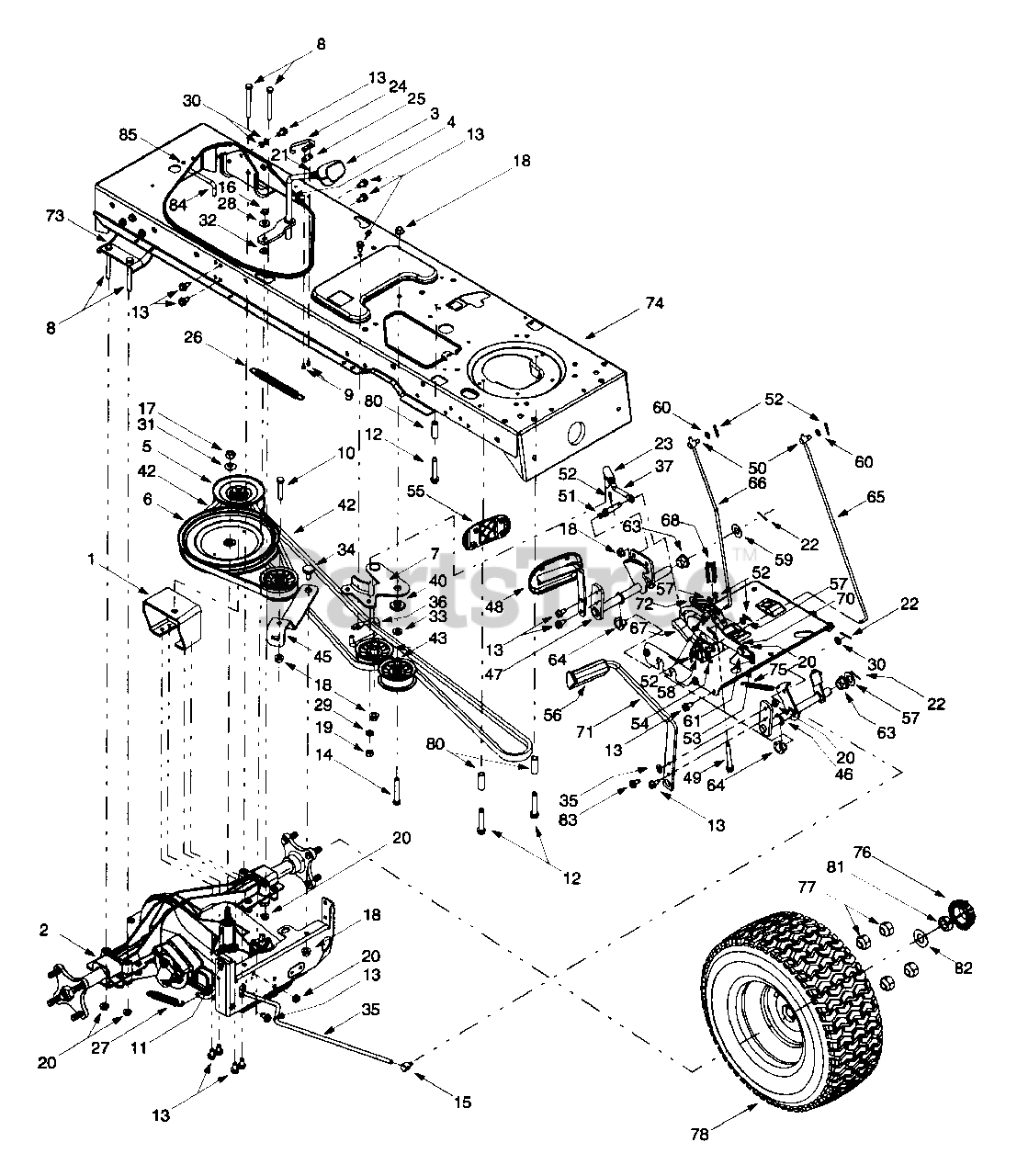

1212 (14AJ808H101) - Cub Cadet Lawn Tractor (SN: 1H019H - 1H310H) Drive System & Rear Wheels Parts Diagram

Lawn Tractor

Drive System & Rear Wheels Parts Diagram

  • Title

1

Cub Cadet 618-0375

Variable-speed Bracket Assembly
(Superseded to 918-0375)

$

$

Not available

2

Cub Cadet 618-0376

Two-speed Transmission Assembly
(Superseded to 753-05002)

$2299.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 631-0009

Shifter Knob
(Superseded to 931-0009A)

$13.99

$

In Stock, Qty 5

0

4

Cub Cadet 647-0037

Shift Lever

$

$

Not available

5

Cub Cadet 656-0050

Variable-speed Pulley Assembly

$

$

Not available

6

Cub Cadet 656-0051

Transmission Pulley, 8.5 x .5 - 36
(Superseded to 656-0051A)

$86.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 683-0251

Double-idler Bracket

$

$

Not available

8

Cub Cadet 710-0189

Hex Cap Screw, 5/16-18 x 3

$5.99

$

In Stock, Qty 5

0

9

Cub Cadet 710-0227

Self Tapping Screw, #8-18 x .5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0778

Self-tapping Screw, 1/4-20 x 1.5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0604A

Self Tapping Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3011

Hex Cap Screw, 3/8-16 x 2.25

$6.49

$

In Stock, Qty 20+

0

15

Cub Cadet 711-0677

Ferrule, 5/16 x .312 Dia.
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

16

Cub Cadet 712-0181

Hex Jam Nut, 3/8-16

$3.99

$

In Stock, Qty 5

0

17

Cub Cadet 712-0378

Hex Nut, 7/16-20

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0798

Hex Nut, 3/8-16

$3.99

$

In Stock, only 2 left!

0

20

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3008

Hex Jam Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 714-0111

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 723-3018

Ball Joint, 3/8-24
(Superseded to 923-3018)

$15.99

$

In Stock, Qty 20+

0

24

Cub Cadet 725-1713

Spring Switch

$12.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.49

$

In Stock, Qty 10

0

26

Cub Cadet 732-0384

Extension Spring, .62 Dia. x 6.12
(Superseded to 932-0384)

$13.99

$

In Stock, Qty 20+

0

27

Cub Cadet 732-0716

Extension Spring, .59 OD x 4.0
(Superseded to 732-0716D)

$12.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0105

Bell Washer, .401 x .870 x .063

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0169

Lock Washer, 3/8

$3.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0275

Flat Washer, 5/16

$6.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 7

0

32

Cub Cadet 736-0642

Flat Washer, .44 x .75 x .06

$3.99

$

In Stock, only 1 left!

0

33

Cub Cadet 736-3010

Flat Washer, .407 x .812 x .135

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 738-0322

Shoulder Screw, .625 Dia. x .21
(Superseded to 738-0322A)

$6.49

$

In Stock, Qty 5

0

35

Cub Cadet 747-1122

Brake Rod

$

$

Not available

36

Cub Cadet 747-1123A

Belt Guard

$

$

Not available

37

Cub Cadet 747-1127

Idler Adjustment Rod, 3/8

$39.99

$

Usually ships in 3-6 days

0

?38

Cub Cadet 710-1026

Self-tapping Screw, 1/4-20 x 1.75

$6.49

$

In Stock, Qty 20+

0

?39

Cub Cadet 747-1185

Transmission Belt Guard Rod

$

$

Not available

40

Cub Cadet 748-0416

Shoulder Spacer, .380 ID

$

$

Not available

?41

Cub Cadet 754-0467

Variable-speed Belt
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

42

Cub Cadet 754-0468

Drive Belt
(Superseded to 954-0468)

$30.99

$

In Stock, Qty 20+

0

43

Cub Cadet 756-0981

Flat Idler, 2.75 OD
(Superseded to 756-04224)

$24.99

$

In Stock, Qty 20+

0

?44

Cub Cadet 783-0667

Transmission Torque Bracket
(Superseded to 783-0667A-0637)

Variations

Cub Cadet 783-0667-0637

USE 783-0667A-0637 BRACKET-TR - POWDER BLACK (0637)

$

$

Not available

$

$

45

Cub Cadet 783-0669

Idler Bracket
(Superseded to 783-0669-0637)

Variations

Cub Cadet 783-0669-0637

Idler Bracket - POWDER BLACK (0637)

$18.99

$

In Stock, only 3 left!

0

$18.99

$

In Stock, only 3 left!

0

46

Cub Cadet 647-0031

Brake Control Shaft Assembly
(Superseded to 753-05606)

$

$

Not available

47

Cub Cadet 647-0032

Speed Control Shaft Assembly
(Superseded to 647-0032A-0637)

$

$

Not available

48

Cub Cadet 683-0266

Drive Pedal Assembly

$84.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 710-1135

Self Tapping Screw, 5/16-18 x 2.5

$

$

Not available

50

Cub Cadet 711-0736

Ferrule, 1/4-20

$13.99

$

In Stock, only 2 left!

0

51

Cub Cadet 711-1363

Pin, 3/8-16 x 2.43

$4.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 732-0437

Compression Spring, .34 OD x 1.0

$9.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 732-0955

Extension Spring, .5 OD x 1.41

$8.99

$

In Stock, only 1 left!

0

55

Cub Cadet 735-0662

Drive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 735-3049

Brake Pedal Pad
(Superseded to 735-3049A)

$11.99

$

In Stock, Qty 7

0

57

Cub Cadet 736-0140

Flat Washer, .281 x .5 x .0625

$6.99

$

In Stock, Qty 9

0

58

Cub Cadet 736-0142

Flat Washer, 9/32 x 1/2 x 1/16

$4.49

$

Usually ships in 3-6 days

0

59

Cub Cadet 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 736-0204

Flat Washer, .344 x .062 x .03

$3.99

$

In Stock, Qty 20+

0

61

Cub Cadet 738-0155

Shoulder Screw, .437 x 1.62
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

?62

Cub Cadet 738-0507B

Shoulder Screw, .5 x .434

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

64

Cub Cadet 741-3065A

Split Hex Flange Bearing
(Superseded to 741-3065B)

$7.49

$

In Stock, Qty 20+

0

65

Cub Cadet 747-1137

Cruise Control Rod

$

$

Not available

66

Cub Cadet 747-1138

Brake Lock Control Rod

$

$

Not available

67

Cub Cadet 748-0413

Cruise Latch

$30.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 748-0415A

Spacer, 5/16 x 1.54
(Superseded to 748-0415B)

$6.99

$

In Stock, Qty 14

0

?69

Cub Cadet 783-0653B

Steering Support Bracket
(Superseded to 783-04612-0637)

$83.99

$

In Stock, only 4 left!

0

70

Cub Cadet 783-0732

Drive Lockout Bracket
(Superseded to 783-0732A)

$31.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 783-0773

Brake Pedal

Variations

Cub Cadet 783-0773-0498

Service Kit - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0773-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0773-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0773-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0773-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0773-0716

Service Kit - CUB YELLOW-99 (0716)

$

$

Not available

$

$

72

Cub Cadet 783-0780A

Neutral Return Bracket
(Superseded to 753-04872)

Variations

Cub Cadet 783-0780A-0637

USE 753-04872 KIT-NEUT RTN BR - POWDER BLACK (0637)

$

$

Not available

$

$

73

Cub Cadet 783-0693

Axle Bracket

Variations

Cub Cadet 783-0693-0637

USE 783-0693A-0637 BRACKET-AX - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0693-4008

BRACKET-AXLE - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 683-0304

Lower Frame Assembly

Variations

Cub Cadet 683-0304-0637

LOWER FRAME - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 683-0304-0650

LOWER FRAME - RED METALLIC (0650)

$

$

Not available

Cub Cadet 683-0304-0665

LOWER FRAME - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 683-0304-0691

LOWER FRAME - BLACK JACK (0691)

$

$

Not available

Cub Cadet 683-0304-0716

LOWER FRAME - CUB YELLOW-99 (0716)

$

$

Not available

$

$

75

Cub Cadet 732-0963

Extension Spring, .5 OD x 6.37

$8.99

$

In Stock, Qty 20+

0

76

Cub Cadet 731-2290

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

77

Cub Cadet 712-3050

Lug Nut, 7/16-14

$9.49

$

In Stock, Qty 20+

0

78

Cub Cadet 634-0132

Wheel Assembly Complete, 23 x 9.5 x 12

Variations

Cub Cadet 634-0132-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$

$

Not available

Cub Cadet 634-0132-0941

WHEEL ASSEMBLY (23 x 9.5 x 12) (YELLOW) - Carlisle Yellow (0941)

$

$

Not available

$

$

Cub Cadet 634-0194

Rim Only
(Superseded to 634-04238)

Variations

Cub Cadet 634-0194-0662

USE 634-04238-0662 RIM ASM:12 - OYSTER GRAY (0662)

$184.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0194-0674

USE 634-04238-0674 RIM ASM:12 - YARDMAN YELLOW (0674)

$184.99

$

Usually ships in 3-6 days

0

$173.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 734-1728

Tire Only, Square Shoulder

Variations

Cub Cadet 734-1728-0901

Tire, Square Tread - Carlisle (0901)

$125.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1728-0904

Tire, Square Tread - Cheng (0904)

$125.99

$

Usually ships in 3-6 days

0

$125.99

$

Usually ships in 3-6 days

0

?79

Cub Cadet 750-0768

Split Spacer, .25 x .37 x 1.32

$

$

Not available

80

Cub Cadet 750-0566

Spacer, .372 x .26 x 1.03
(Superseded to 750-0566A)

$9.49

$

In Stock, Qty 8

0

81

Cub Cadet 712-3026

Jam Nut, 3/4-16

$4.99

$

In Stock, Qty 10

0

82

Cub Cadet 736-0316

Flat Washer, .78 x 1.59 x .06

$3.99

$

In Stock, Qty 20+

0

83

Cub Cadet 710-1260A

Hex Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

84

Cub Cadet 747-1185

Transmission Belt Guard Rod

$

$

Not available

85

Cub Cadet 710-0599

Self Tapping Screw,1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0
