1212 (14AJ808H101) - Cub Cadet Lawn Tractor (SN: 1H019H - 1H310H) Two Speed Transmission Parts Diagram

Lawn Tractor

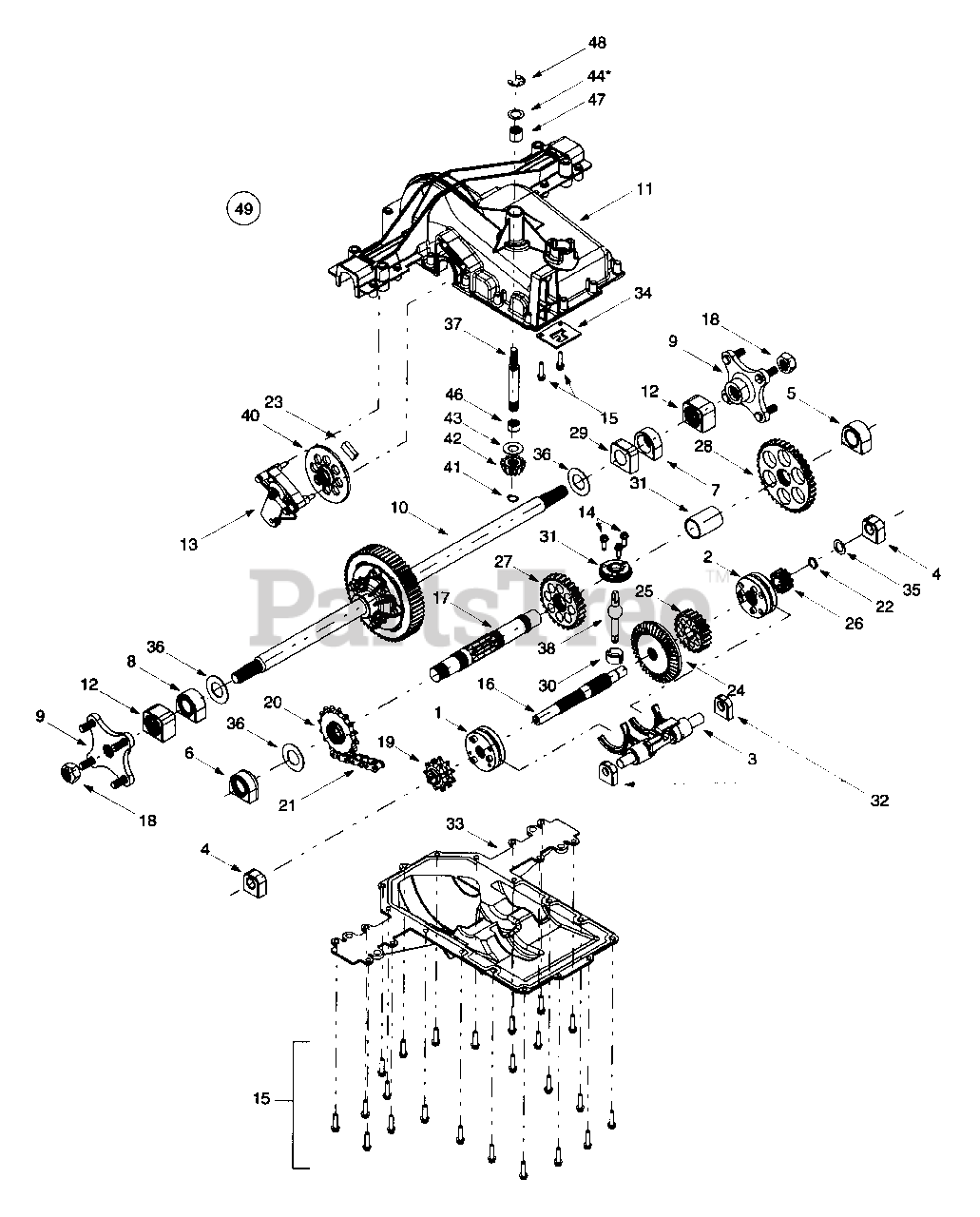

Two Speed Transmission Parts Diagram

  • Title

1

Cub Cadet 618-0225

Reverse Collar Assembly

$

$

Not available

2

Cub Cadet 618-0226

Hi-Lo Collar Assembly

$116.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-0227A

Shift Fork Assembly

$

$

Not available

4

Cub Cadet 618-0284

Detent Block Assembly

$

$

Not available

5

Cub Cadet 618-0285

Output Bearing Block Assembly

$

$

Not available

6

Cub Cadet 618-0286

Output Seal Bearing Block Assembly

$51.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 618-0287

Inboard Sealed Axle Block Assembly

$

$

Not available

8

Cub Cadet 618-0302

Inboard Sealed Axle Block Assembly

$

$

Not available

9

Cub Cadet 618-0365

Wheel Hub Assembly
(Superseded to 618P0579B)

$72.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 618-0368

Differential Axle Assembly
(Superseded to 918-0368A)

$

$

Not available

11

Cub Cadet 719-0379A

Upper Housing

$

$

Not available

12

Cub Cadet 641-0002A

Axle Bearing Block Assembly

$

$

Not available

13

Cub Cadet 661-0012

Brake Assembly
(Superseded to 961-0012)

$

$

Not available

14

Cub Cadet 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0788

Self-tapping Screw, 1/4-20 x 1.0

$6.99

$

In Stock, only 4 left!

0

16

Cub Cadet 711-1051A

Drive Shaft

$

$

Not available

17

Cub Cadet 711-1216

Output Shaft

$149.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-1329

Nut, 3/4-16

$11.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 713-0446

9-tooth Sprocket
(Superseded to 913-0446)

$

$

Not available

20

Cub Cadet 713-0447

16-tooth Sprocket

$

$

Not available

21

Cub Cadet 713-0448

22-link Chain, .625
(Superseded to 913-0448)

$

$

Not available

22

Cub Cadet 716-0131

External Snap Ring
(Superseded to 916-0131)

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 717-0678

Brake Pad
(Superseded to 917-0678)

$6.99

$

In Stock, Qty 20+

0

24

Cub Cadet 717-1438

41-tooth Bevel Gear
(Superseded to 917-1438A)

$

$

Not available

25

Cub Cadet 717-1439

20-tooth Spur Gear
(Superseded to 917-1439A)

$

$

Not available

26

Cub Cadet 717-1440

10-Tooth Spur Gear

$

$

Not available

27

Cub Cadet 717-1441

27-Tooth Spur Gear

$

$

Not available

28

Cub Cadet 717-1442

37-Tooth Spur Gear

$

$

Not available

29

Cub Cadet 718-0500

Inner Axle Bearing Block

$

$

Not available

30

Cub Cadet 718-0504

Shifter Insert

$4.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 718-0505

Shifter Cover

$19.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 718-0537

Shifter Bearing Block

$

$

Not available

33

Cub Cadet 719-0385

Lower Housing

$

$

Not available

34

Cub Cadet 718-0540

Lockout Plate

$

$

Not available

35

Cub Cadet 736-0337

Flat Washer, 5/8 x 1.0

$4.49

$

In Stock, Qty 15

0

36

Cub Cadet 736-3046A

Flat Washer, 1.01 x 1.86 x .060

$8.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 711-1235

Input Shaft

$

$

Not available

38

Cub Cadet 747-1140

Shift Lever

$52.99

$

In Stock, Qty 5

0

?39

Cub Cadet 750-1033A

Spacer, 1.13 x 1.38 x 1.968

$

$

Not available

40

Cub Cadet 761-0215

Disc Brake

$19.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 716-0114

Retaining Ring, .56
(Superseded to 916-0114)

$6.49

$

In Stock, Qty 11

0

42

Cub Cadet 717-1463

13-tooth Bevel Gear
(Superseded to 717-1463A)

$

$

Not available

43

Cub Cadet 736-0335

Flat Washer

$6.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 736-0336

Flat Washer, 5/8 x 1.0 x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0337

Flat Washer, 5/8 x 1.0 x .040

$4.49

$

In Stock, Qty 15

0

Cub Cadet 736-0349

Flat Washer,5/8 x 1.0 x .020

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 741-0335

Needle Bearing
(Superseded to 941-0335)

$16.99

$

In Stock, Qty 7

0

47

Cub Cadet 741-0696

Needle Bearing

$28.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 716-0231

E-ring, .75

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 618-0376

Transmission Assembly Complete
(Superseded to 753-05002)

$2299.99

$

Usually ships in 3-6 days

0
