1215 (137-220-100) - Cub Cadet Lawn Tractor (SN: 126001 - 147087) Engine Flywheel, Ring Gear, Blower Housing & Screens Parts Diagram

Lawn Tractor

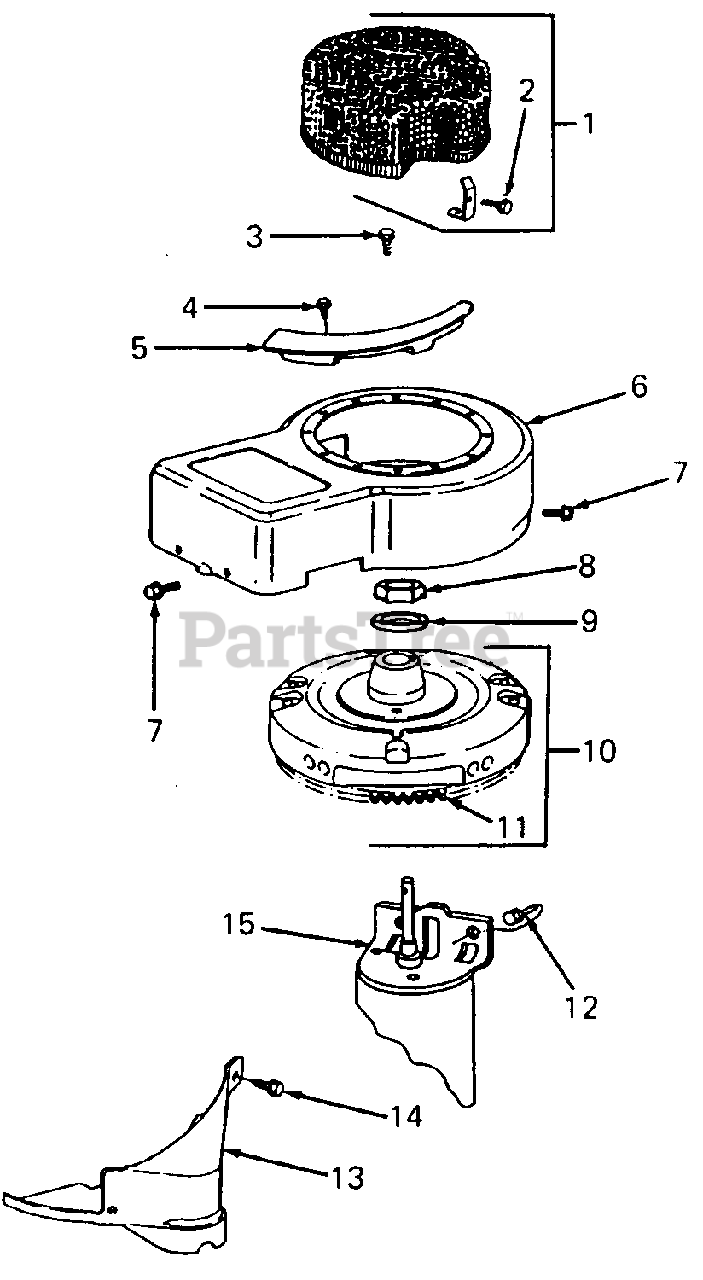

Engine Flywheel, Ring Gear, Blower Housing & Screens Parts Diagram

  • Title

1

Cub Cadet BS-398857

Guard, Debris

$80.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-223379

Bracket, Guard Mounting

$

$

Currently unavailable

2

Cub Cadet BS-94018

Screw, Hex Washer Head
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 9

0

3

Cub Cadet BS-93067

Screw, Hex Head Sem

$

$

Currently unavailable

4

Cub Cadet BS-93705

Screw, Hex Head
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-223752

Guard, Flywheel

$

$

Currently unavailable

6

Cub Cadet BS-490853

Housing, Blower

$

$

Currently unavailable

7

Cub Cadet BS-93158

Screw, Blower Housing Mtg Sem

$

$

Not available

8

Cub Cadet BS-92284

Nut, Hex
(Superseded to 712-3056)

$4.49

$

In Stock, Qty 11

0

9

Cub Cadet BS-220865

Washer, Spring

$

$

Currently unavailable

10

Cub Cadet BS-490604

Flywheel & Ring Gear Assy, Magneto
(Superseded to BS-693556)

Note: (Includes Ref No. 11)

$

$

Not available

11

Cub Cadet BS-392134

Gear, Ring
(Superseded to BS-696537)

Note: (Includes Mtg Parts)

$50.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-93535

Screw, Sem Starter Mtg

$

$

Not available

13

Cub Cadet BS-490324

Cover, Starter

Note: (Includes Ref No. 14)

$26.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-93984

Screw, Sem

$

$

Currently unavailable

15

See Starter Motor

$

$

Not available
