12153 - Troy-Bilt Horse Rear-Tine Tiller WHEELS/TINES/PTO DRIVE LEVER ASSEMBLY Parts Diagram

Horse Rear-Tine Tiller

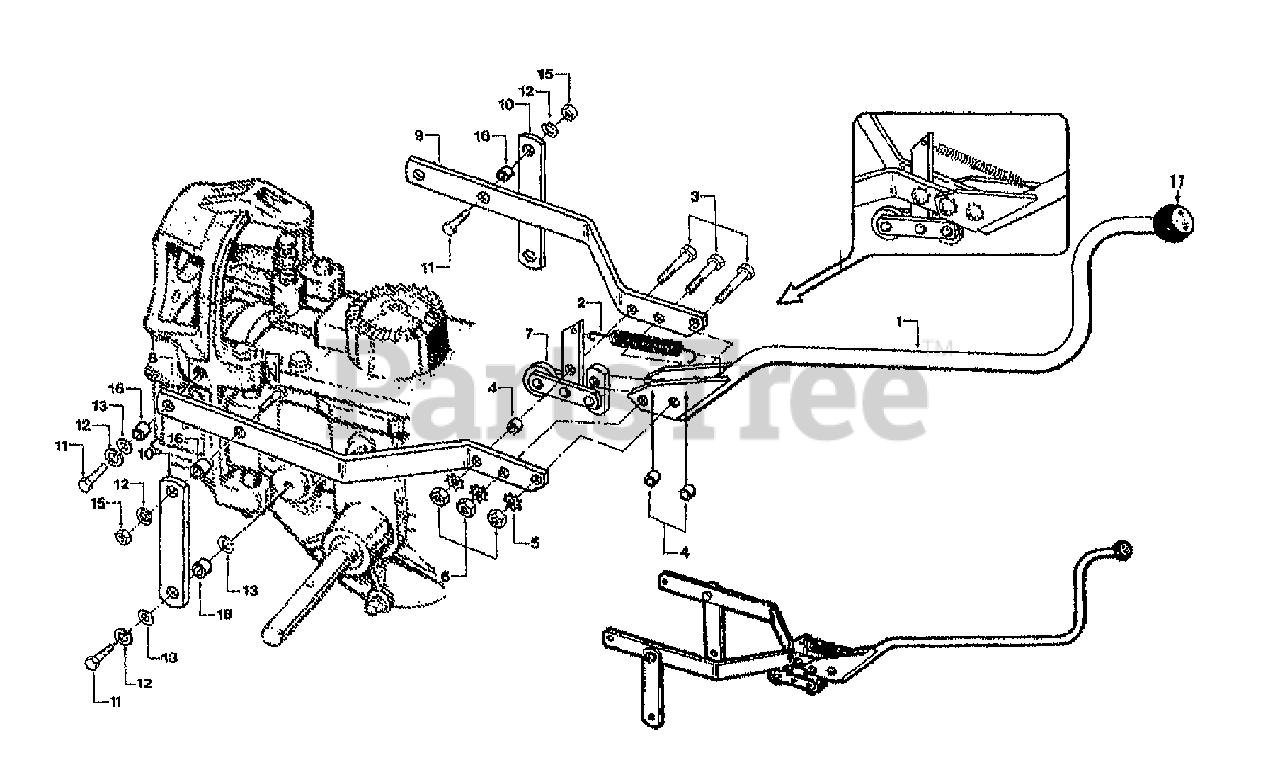

WHEELS/TINES/PTO DRIVE LEVER ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 2574

ASSM-FOR/REV LEVER (INCL. KNOB W/DECAL)
(Superseded to 647-04006)

$142.99

$

In Stock, Qty 5

0

2

Troy-Bilt 1908156

SPRING-.436 X 3.25

$16.99

$

In Stock, only 2 left!

0

3

Troy-Bilt GW-9466

SCR-HH 5/16-18X1.5 G5 ZP
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 7

0

4

Troy-Bilt 2447

BUSHING-.5X.316X.375 PM
(Superseded to GW-2447)

$6.99

$

In Stock, Qty 8

0

5

Troy-Bilt GW-9919

WASHER-LK .312 EXT TOOTH
(Superseded to 736-0607)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt GW-9801

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 2232

ASSM-ROLLER PAINT
(Superseded to 686-04006)

$98.99

$

In Stock, Qty 5

0

8

Troy-Bilt 1900468010

YOKE-LH RED

$50.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1900469010

YOKE-RH RED

$44.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1900860010

YOKE-RED 2164
(Superseded to 1900860001)

$17.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt GW-9710

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 16

0

12

Troy-Bilt GW-9913

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 11

0

13

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 9

0

14

0

THIS REF. NO. NOT USED

$

$

Not available

15

Troy-Bilt GW-9802

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 1113-1

BUSHING-.5X.375X.3 (.300")
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 12

0

17

0

KNOB - NOT AVAIL. SEPARATELY. SEE REF. NO. 1

$

$

Not available
