12155 (21A-510-081) - Troy-Bilt Tuffy Rear-Tine Tiller Bolo Tines & Wheels Parts Diagram

Tuffy Rear-Tine Tiller

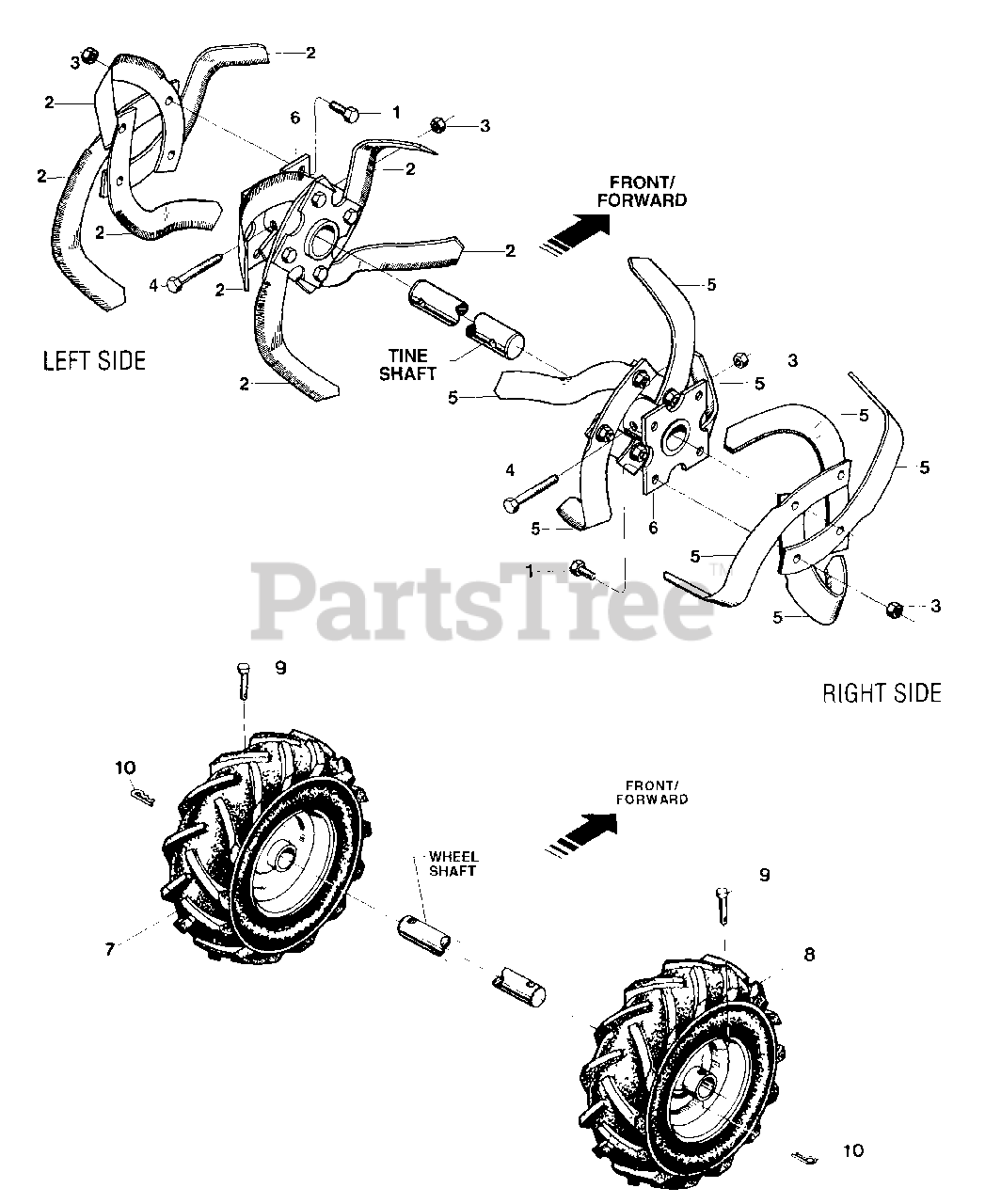

Bolo Tines & Wheels Parts Diagram

  • Title

1

Troy-Bilt 1100046

Bolt-Hex Head, 3/8-16 x 1", Grade 5, Tine Mounting
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 50049-01

Bolo Tine-Single,
(Superseded to 742-04226-0637)

Note: Right Hand tine used on left side of tiller

$16.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1733398

Locknut-Hex Hd, 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

4

MTD 9555

Bolt-Hex Hd, 3/8-16 x 1-3/4"

Note: (tine holder to tiller shaft)

$

$

Not available

Troy-Bilt 1901

Replacement Set of 16 Bolo Tines
(Superseded to GW-1901)

Note: Including eight right hand tines, eight left hand tines, and all required assembly hardware

$

$

Not available

5

Troy-Bilt 50049-02

Bolo Tine-Single
(Superseded to 742-04227-0637)

Note: Left Hand tine used on right side of tiller

$16.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1915075010

Tine Holder
(Superseded to 686-04066-0638)

Note: for bolo tines, left and right sides

$54.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 55095-01

Wheel & Tire Assy-Left Side
(Superseded to 734-04162)

$

$

Not available

8

Troy-Bilt 55095-02

Wheel & Tire Assy-Right Side
(Superseded to 734-04161)

$

$

Not available

9

Troy-Bilt 9380

Clevis Pin .312" x 1-3/4"
(Superseded to 711-04126)

Note: secures wheel hub to wheel shaft

$3.99

$

In Stock, Qty 15

0

10

Troy-Bilt 9338

Hair Pin Cotter
(Superseded to 714-04048)

$7.49

$

In Stock, only 3 left!

0
