12155 (21A-510-081) - Troy-Bilt Tuffy Rear-Tine Tiller Tine Hood, Depth Regulator & Drag Bar Parts Diagram

Tuffy Rear-Tine Tiller

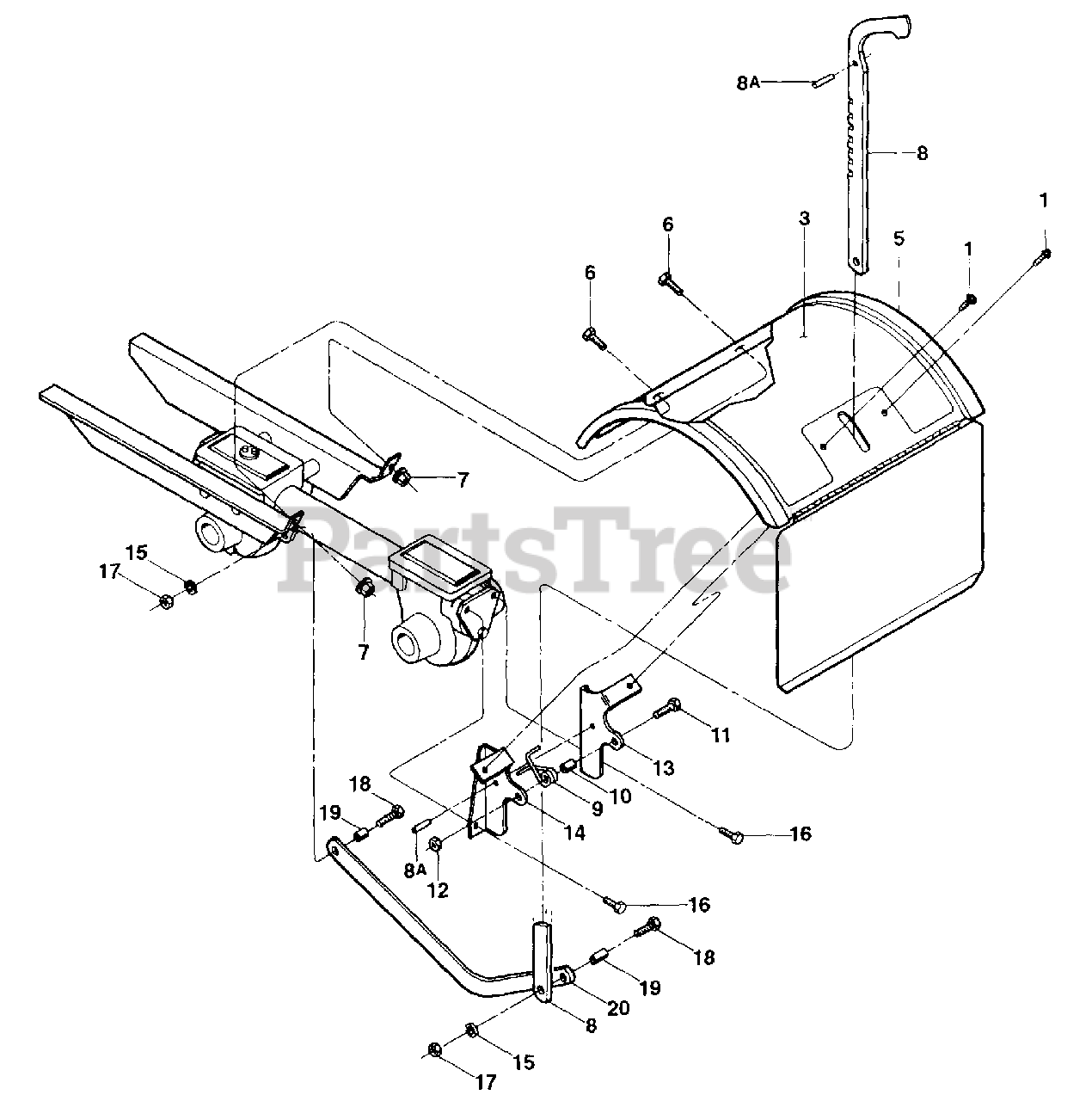

Tine Hood, Depth Regulator & Drag Bar Parts Diagram

  • Title

1

Troy-Bilt 9552

Bolt-Flanged Hd, Self-Tapping, 1/4-20 x 1/2"
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

3

MTD 1904547

Decal-Hood

Note: (Contains operating and safety instructions)

$

$

Not available

5

Troy-Bilt 1904572

Tine Hood
(Superseded to 686-04076A-0638)

Note: (Includes tine flap and decal 1904547)

$82.99

$

In Stock, only 4 left!

0

6

MTD 1100088

Bolt-Hex Hd, 5/16-18 x 1/2"

$

$

Not available

7

Troy-Bilt 1186391

Nut-Flange Lock, 5/16-18
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 55074

Depth Regulator Lever
(Superseded to 786-04292A-0638)

$62.99

$

Usually ships in 3-6 days

0

8A

Troy-Bilt 9308

Spiral Pin
(Superseded to 715-0108)

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 9384

Spring-Depth Regulator
(Superseded to 732-04320)

$4.49

$

In Stock, Qty 14

0

10

Troy-Bilt 9534

Spacer
(Superseded to GW-9534)

$3.99

$

In Stock, Qty 9

0

11

Troy-Bilt 1100069

Bolt-Hex Hd, 1/4-20 x 1"
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 19

0

12

Troy-Bilt 1817146

Locknut-Hex Hd, 1/4-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

13

MTD 55072-2

Bracket-Hood, Right Hand

$

$

Not available

14

MTD 55072-1

Bracket-Hood, Left Hand

$

$

Not available

15

Troy-Bilt 1100242

Lockwasher, 5/16"
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 1186331

Bolt-Flanged Hd, 5/1 6-18 x 1"
(Superseded to 710-04048)

$4.49

$

In Stock, Qty 7

0

17

Troy-Bilt 1186230

Nut-Hex Hd, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

18

MTD 1100808

Bolt-Hex Hd, 5/1 6-18 x 1-1/4"

$

$

Not available

19

Troy-Bilt 55088

Bushing-Drag Bar
(Superseded to GW-55088)

$

$

Not available

20

Troy-Bilt 55073

Drag Bar
(Superseded to 786-04104-0638)

$34.99

$

In Stock, only 1 left!

0
