12180 (21A-520-081) - Troy-Bilt Bronco Rear-Tine Tiller Bumper Guard Attachment Parts Diagram

Bronco Rear-Tine Tiller

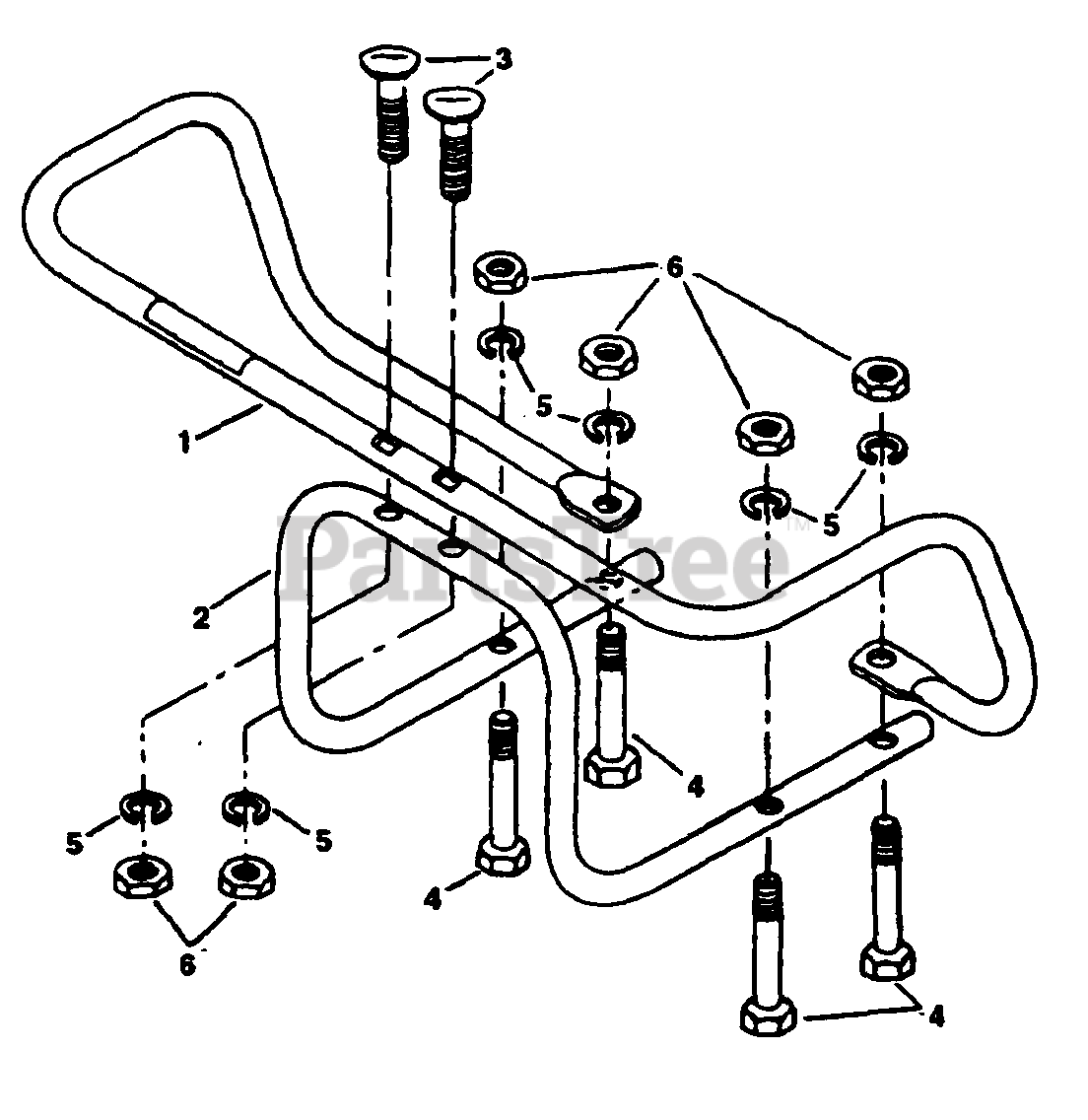

Bumper Guard Attachment Parts Diagram

  • Title

1

Troy-Bilt 1904757001

Bumper, Top Section
(Superseded to 749-04193-0637)

$50.99

$

In Stock, Qty 7

0

2

Troy-Bilt 1904758001

Bumper, Bottom Section
(Superseded to 749-04193-0637)

$50.99

$

In Stock, Qty 7

0

3

Troy-Bilt 1731025

Curved Hd. Screw, 5/16-18 x 2 (special)
(Superseded to 710-1174)

Note: (Also see Hardware Kit #1915811)

$6.99

$

In Stock, Qty 20+

0

4

MTD 1111608

Hex Screw, 5/16-18 x 2-1/2, Grade 5

Note: (N/A separately, order Hardware Kit #1915811)

$

$

Not available

5

Troy-Bilt 1100242

Lockwasher, 5/16
(Superseded to 936-0119)

Note: (N/A separately, order Hardware Kit #1915811)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 1186230

Hex Nut, 5/16-18
(Superseded to 912-3010)

Note: (N/A separately, order Hardware Kit #1915811)

$4.49

$

In Stock, Qty 20+

0

MTD 1915811

Hardware Kit

$

$

Not available
