12181 (21A-530-081) - Troy-Bilt Pony Rear-Tine Tiller (SN: 1100101 - 1199999) Bolo Tines, Wheels, Custom Tilling Tines (Extra Long-Wearing) Parts Diagram

Pony Rear-Tine Tiller

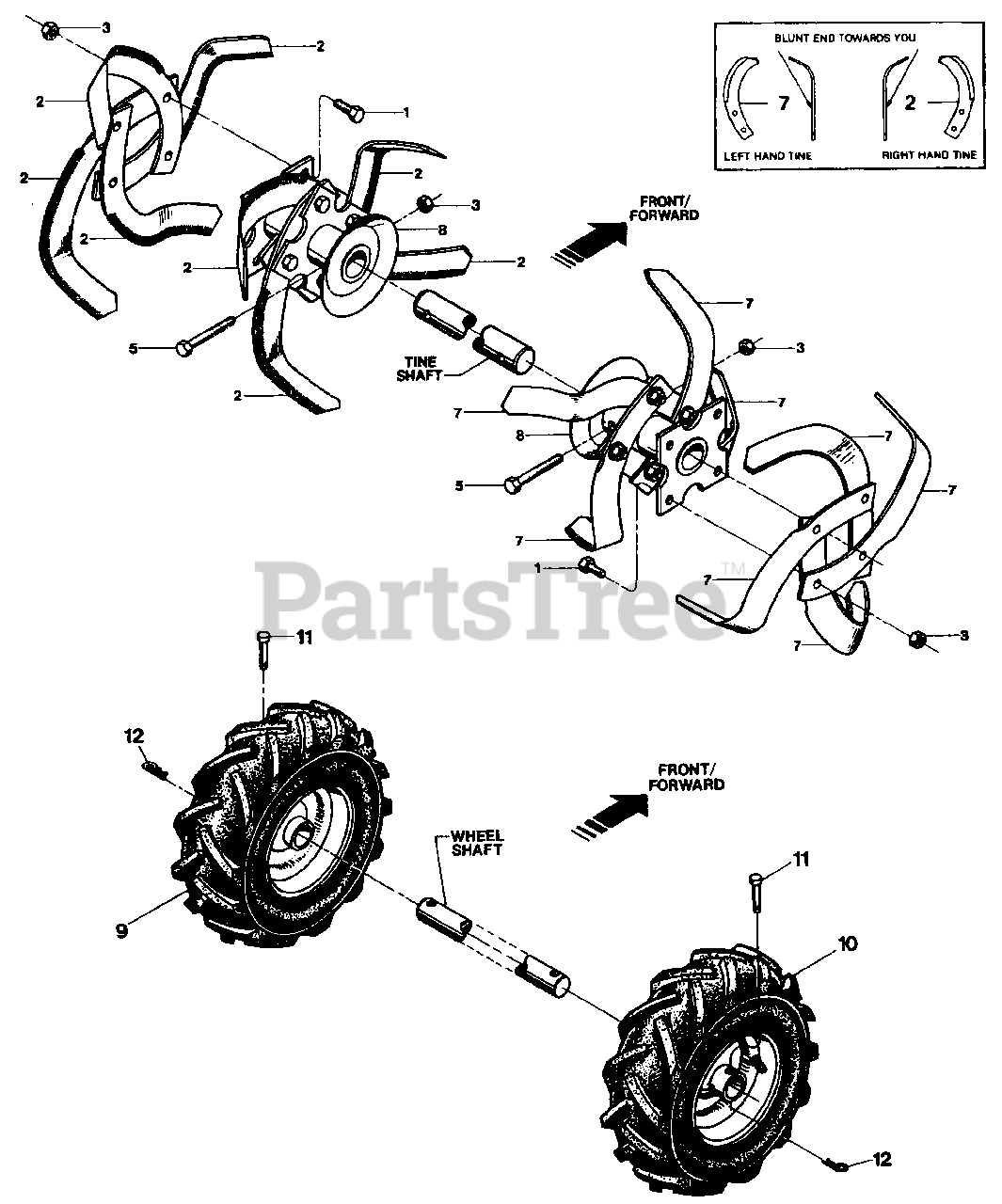

Bolo Tines, Wheels, Custom Tilling Tines (Extra Long-Wearing) Parts Diagram

  • Title

1

Troy-Bilt 1100043

Screw-hex hd., 3/8-16 x 1-1/4
(Superseded to 710-3005)

Note: (Specify GRADE 5 if ordering part locally)

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 1270-2A

Bolo Tine-single, right hand tine used on left side of tiller
(Superseded to 742-04118-0637)

Note: (Incl. two of each Ref. No.'s 1 and 3).

$

$

Not available

3

Troy-Bilt 1733398

Hex Locknut, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 19

0

5

Troy-Bilt 1982612

Screw-hex hd., 3/8-16 x 2, GRADE 8
(Superseded to 710-3096)

$8.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 1270-1A

Bolo Tine-single, left hand tine used on right side of tiller
(Superseded to 742-04119-0637)

Note: (Incl. two of each Ref. No.'s 1 and 3).

$

$

Not available

8

Troy-Bilt 1902154010

Tine Holder-for bolo tines, left and right sides
(Superseded to 686-04067-0638)

$102.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1901118

Replacement set of 16 Bolo Tines
(Superseded to 1901118A)

$

$

Not available

9

MTD 2706-01

Wheel & Tire Assy-left side, 4.10 x 6 tire

$

$

Not available

10

MTD 2706-02

Wheel & Tire Assy-right side

Note: (Same specs. as above, Ref. 9)

$

$

Not available

11

Troy-Bilt 9380

Clevis Pin -.312 x 1-3/4 long
(Superseded to 711-04126)

$4.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 9338

Hitch Pin
(Superseded to 714-04048)

$8.99

$

In Stock, only 3 left!

0

Troy-Bilt 10802

Custom Tilling Tine Kit
(Superseded to GW-10802)

$

$

Not available

Troy-Bilt 2475-1

Bolo Tine, custom tilling, left hand
(Superseded to GW-2475-1001)

$54.99

$

In Stock, only 2 left!

0

Troy-Bilt 2475-2

Bolo Tine, custom tilling, right hand
(Superseded to GW-2475-2001)

$62.99

$

In Stock, only 1 left!

0
