12181 (21A-530-081) - Troy-Bilt Pony Rear-Tine Tiller (SN: 1100101 - 1199999) Bumper Attachment Parts Diagram

Pony Rear-Tine Tiller

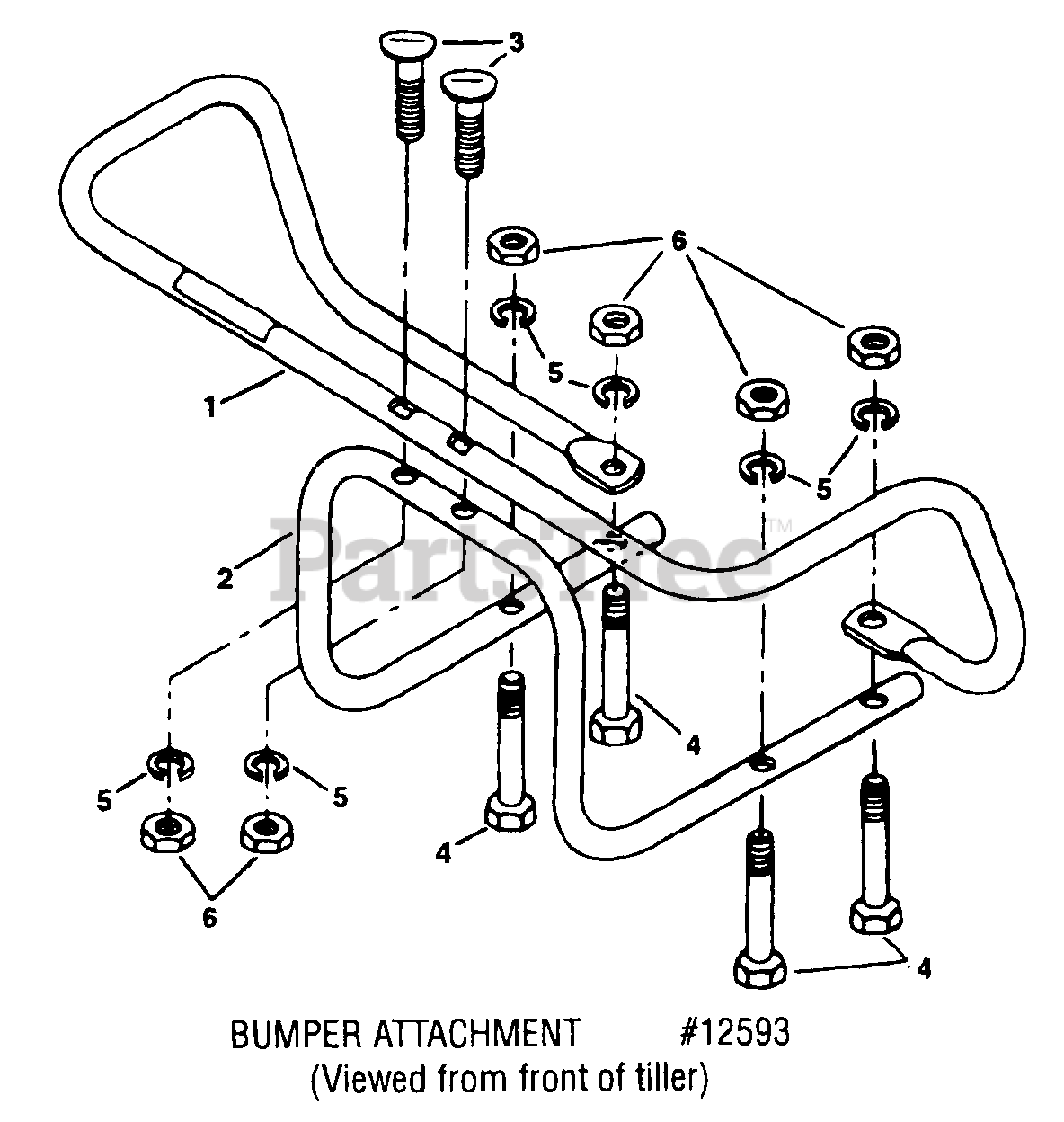

Bumper Attachment Parts Diagram

  • Title

1

UNKNOWN

$

$

Not available

2

UNKNOWN

$

$

Not available

3

UNKNOWN

$

$

Not available

4

UNKNOWN

$

$

Not available

5

UNKNOWN

$

$

Not available

6

UNKNOWN

$

$

Not available

Troy-Bilt 12593

Bumper Attachment

$

$

Currently unavailable

?19

Troy-Bilt 1904757001

Bumper-top section
(Superseded to 749-04193-0637)

$50.99

$

In Stock, Qty 7

0

?20

Troy-Bilt 1904758001

Bumper-bottom section
(Superseded to 749-04193-0637)

$50.99

$

In Stock, Qty 7

0

?21

Troy-Bilt 1731025

Bolt-curved head, 5/16-18 x 2 (special bolt)
(Superseded to 710-1174)

Note: (Also see #1915811 hardware kit)

$6.99

$

In Stock, Qty 20+

0

?22

MTD 1111608

Bolt-hex hd., 5/16-18 x 2-1/2

Note: (Specify GRADE 5 if ordering part locally) (Not avail. separately) (Order #1915811 hardware kit)

$

$

Not available

?23

Troy-Bilt 1100242

Lockwasher-5/16,
(Superseded to 936-0119)

Note: (Not avail. separately) (Order #1915811 hardware kit)

$4.49

$

In Stock, Qty 20+

0

?24

Troy-Bilt 1186230

Nut-hex, 5/16-18,
(Superseded to 912-3010)

Note: (Not avail. separately) (Order 11915811 hardware kit)

$4.49

$

In Stock, Qty 20+

0

MTD 1915811

Hardware Kit

$

$

Not available
