12185 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: 121851100101 - 121851199999) Forward/Reverse Idler Assembly Parts Diagram

Econo-Horse Rear-Tine Tiller

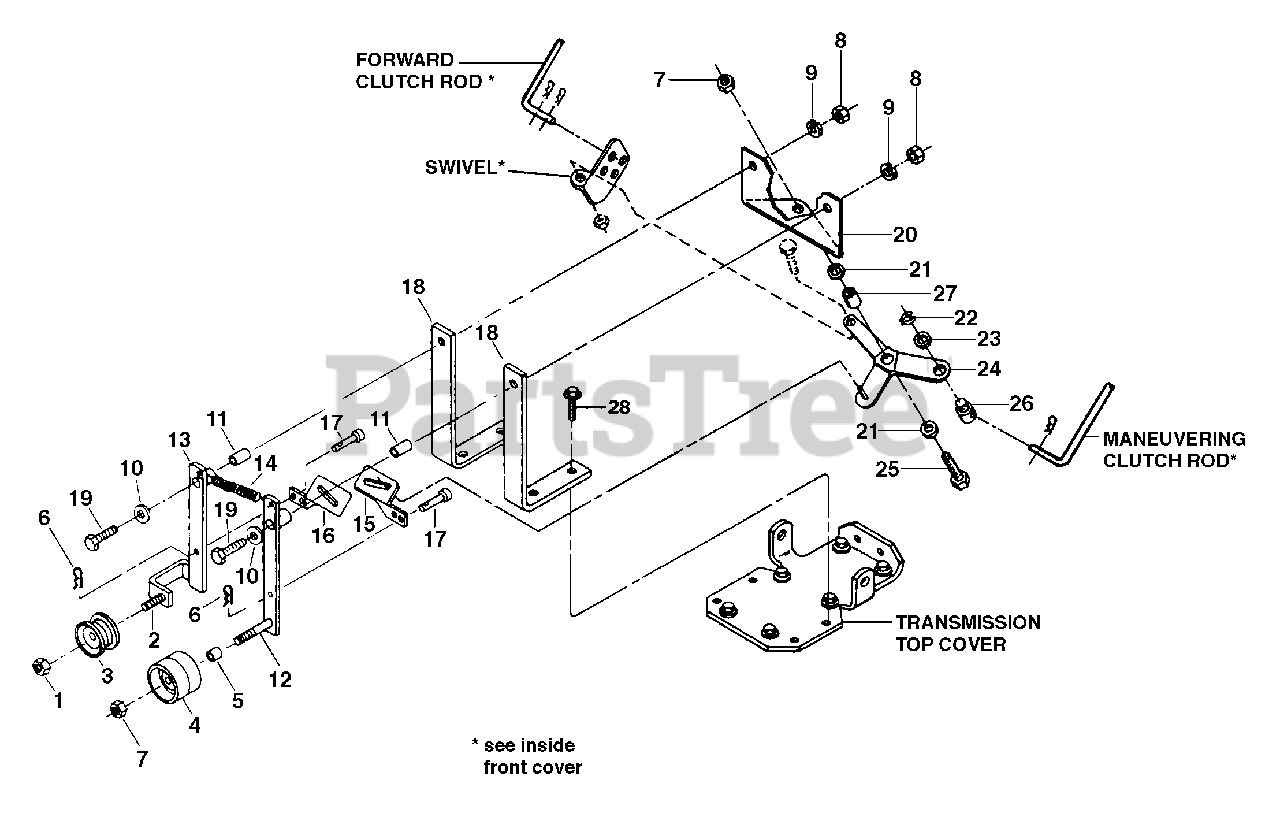

Forward/Reverse Idler Assembly Parts Diagram

  • Title

1

Troy-Bilt 9837

Locknut, hex, 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 1110043

Screw, hex hd., 3/8-16 x 1-1/4 Grade 5
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1909266

Pulley, idler, reverse
(Superseded to 756-0199)

$23.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 9193

Pulley, idler, forward

$

$

Currently unavailable

5

Troy-Bilt 1113-1

Spacer
(Superseded to GW-1113-1099)

$4.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 9338

Hairpin cotter
(Superseded to 714-04048)

$7.49

$

In Stock, only 3 left!

0

7

Troy-Bilt 1110108

Locknut, hex, 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

8

Troy-Bilt 1186230

Nut, hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 1100242

Lockwasher, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

10

MTD 20545

Washer, plain, 5/16

$

$

Not available

11

MTD 9479

Pivot, bushing

$

$

Not available

12

MTD 20899

Idler Arm, left, forward tiller direction

$

$

Not available

13

MTD 1909682010

Idler Arm, right, reverse tiller direction

$

$

Not available

14

Troy-Bilt 1492

Spring
(Superseded to GW-1492099)

$9.99

$

In Stock, Qty 12

0

15

MTD 20517-01

Forward Link

$

$

Not available

16

Troy-Bilt 20517-02

Reverse Link

$

$

Currently unavailable

17

MTD 9340

Pin

$

$

Not available

18

MTD 20751

Mounting Bar

$

$

Not available

19

Troy-Bilt 1111607

Screw, hex hd., 5/16-18 x 2-1/4", Grade 5
(Superseded to 710-0395)

$4.49

$

In Stock, Qty 8

0

20

MTD 20842

Shifting base
(Superseded to GW-20842)

$

$

Not available

21

Troy-Bilt 20553

Spacer, bushing
(Superseded to GW-20553)

$

$

Not available

22

Troy-Bilt 9532

Klip Ring
(Superseded to GW-9532)

$3.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 20546

Washer, pivot
(Superseded to GW-20546)

$

$

Not available

24

Troy-Bilt 20838

Bellcrank
(Superseded to 1916196001)

$40.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 1100043

Screw, hex hd., 3/8-16 x 1-1/4
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

26

MTD 20506

Pivot

$

$

Not available

27

Troy-Bilt 20532

Bushing, bellcrank
(Superseded to GW-20532)

$7.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 1186331

Screw, flanged hex hd., 5/16-18 x 1
(Superseded to 710-04048)

$4.49

$

In Stock, Qty 7

0
