12190 - Troy-Bilt Tuffy Rear-Tine Tiller (SN: 121901100101 - 121901199999) Wheel And Tiller Shaft Assemblies Parts Diagram

Tuffy Rear-Tine Tiller

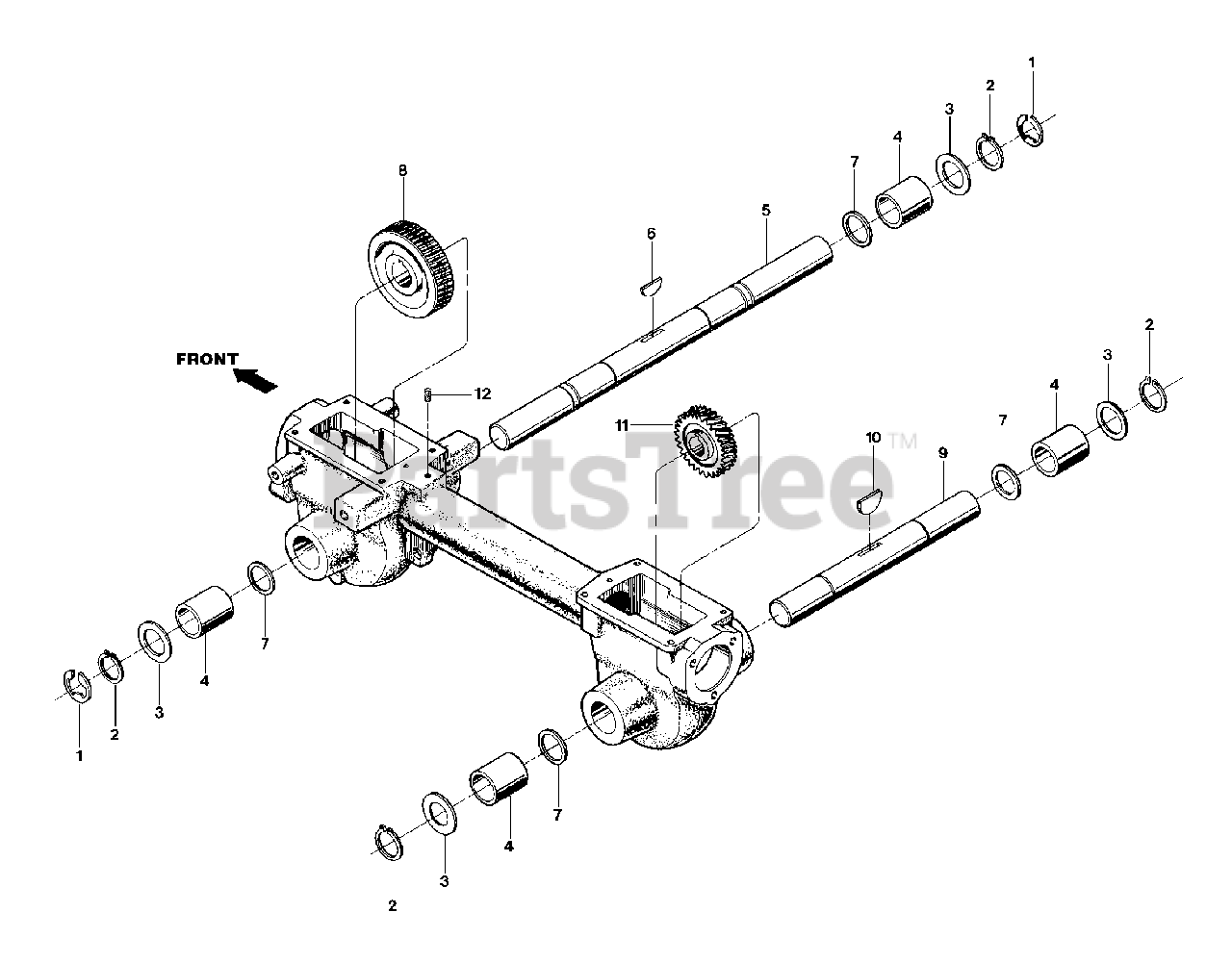

Wheel And Tiller Shaft Assemblies Parts Diagram

  • Title

1

Troy-Bilt 9512

Retainer, Snap Ring, "E" Type
(Superseded to GW-9512)

$3.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 9511

Retainer, Snap Ring
(Superseded to 716-04104)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1166-1

Shim, 0.062" Thick
(Superseded to 736-04309)

Note: AS Required

$3.99

$

In Stock, Qty 18

0

Troy-Bilt 1166-2

Shim, 0.030" Thick
(Superseded to 736-04260)

Note: AS Required

$6.49

$

In Stock, Qty 20+

0

Troy-Bilt 1166-3

Shim, 0.015" Thick
(Superseded to 736-04259)

Note: AS Required

$6.49

$

In Stock, Qty 19

0

Troy-Bilt 1166-4

Shim, 0.010" Thick
(Superseded to 736-04258)

Note: AS Required

$3.99

$

In Stock, Qty 20+

0

Troy-Bilt 1166-5

Shim, 0.005" Thick
(Superseded to 736-04257)

Note: AS Required

$3.99

$

In Stock, Qty 10

0

4

Troy-Bilt 1086

Bushing, Bronze
(Superseded to 941-04300)

$15.99

$

In Stock, Qty 20+

0

5

MTD 1916722

Wheel Shaft

Note: Model 12190 - 3HP

$

$

Not available

5

Troy-Bilt 1916741

Wheel Shaft
(Superseded to 753-05578)

Note: Model 12191 - 5HP

$378.99

$

Usually ships in 3-6 days

0

5

MTD 1916739

Wheel Shaft

Note: Model 12193 - 6.5HP

$

$

Not available

6

Troy-Bilt 9305

Key, Hi Pro, 1/4 x 1
(Superseded to 714-04059)

$6.49

$

In Stock, Qty 8

0

7

Troy-Bilt 1132-2

Spacer
(Superseded to 736-04310)

$3.99

$

In Stock, Qty 18

0

8

Troy-Bilt 1904278

Worm Gear, Wheel Shaft
(Superseded to 917-04380)

$146.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 1915074

Tiller Shaft
(Superseded to 911-04078)

$132.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 1104

Woodruff Key, Tiller Shaft
(Superseded to GW-1104)

$8.99

$

In Stock, only 3 left!

0

11

Troy-Bilt 1916542

Worm Gear, Tiller Shaft
(Superseded to 917-04381)

$135.99

$

In Stock, Qty 5

0

12

UNKNOWN

$

$

Not available
