12193 - Troy-Bilt Econo-Horse Rear-Tine Tiller Wheel And Tiller Shaft Assemblies Parts Diagram

Econo-Horse Rear-Tine Tiller

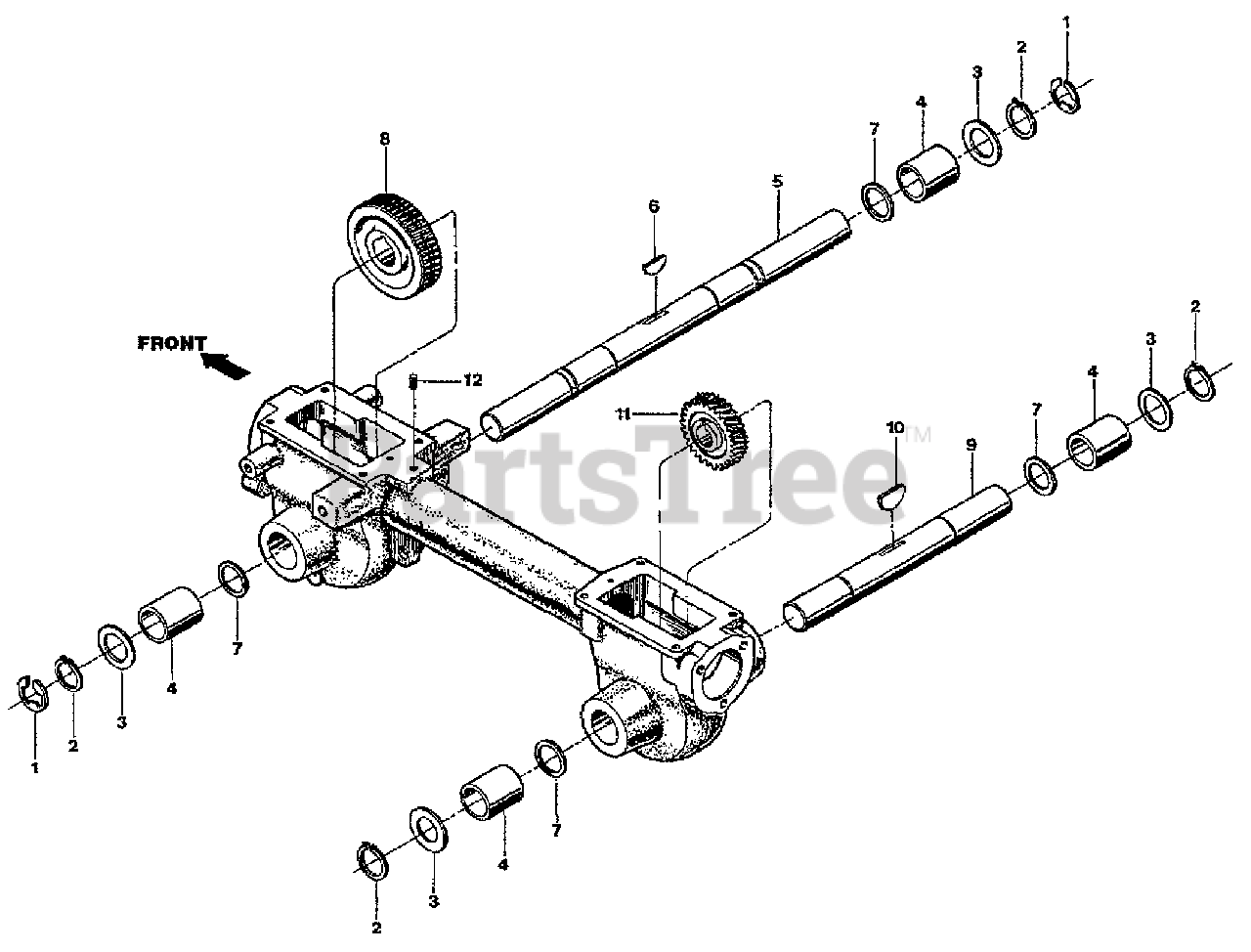

Wheel And Tiller Shaft Assemblies Parts Diagram

  • Title

1

Troy-Bilt 9512

Retainer, Snap Ring, "E" Type
(Superseded to GW-9512)

$3.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 9511

Retainer, Snap Ring
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 1166-1

Shim, 0.062 Thick
(Superseded to 736-04309)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1166-2

Shim, 0.030" Thick
(Superseded to 736-04260)

$7.49

$

In Stock, Qty 20+

0

Troy-Bilt 1166-3

Shim, 0.015" Thick
(Superseded to 736-04259)

$7.49

$

In Stock, Qty 18

0

Troy-Bilt 1166-4

Shim, 0.010" Thick
(Superseded to 736-04258)

$4.49

$

In Stock, Qty 6

0

Troy-Bilt 1166-5

Shim, 0.005" Thick
(Superseded to 736-04257)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 1086

Bushing, Bronze
(Superseded to 941-04300)

$17.99

$

In Stock, Qty 16

0

5

Troy-Bilt 1916741

Wheel Shaft
(Superseded to 753-05578)

$430.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 9305

Hi-Pro Key, 1/4 x 1
(Superseded to 714-04059)

$7.49

$

In Stock, only 4 left!

0

7

Troy-Bilt 1132-2

Spacer
(Superseded to 736-04310)

$4.99

$

In Stock, Qty 18

0

8

Troy-Bilt 1904278

Worm Gear, Wheel Shaft
(Superseded to 917-04380)

$167.99

$

In Stock, only 3 left!

0

9

Troy-Bilt 1915074

Tiller Shaft
(Superseded to 911-04078)

$150.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1104

Woodruff Key
(Superseded to GW-1104)

$10.99

$

In Stock, Qty 18

0

11

Troy-Bilt 1916542

Worm Gear
(Superseded to 917-04381)

$154.99

$

In Stock, only 4 left!

0

12

UNKNOWN

$

$

Not available

$

$

Not available
