12194 - Troy-Bilt Horse Rear-Tine Tiller (SN: 121941100101 - 121941199999) Hood, Bracket And Depth Regulator Parts Diagram

Horse Rear-Tine Tiller

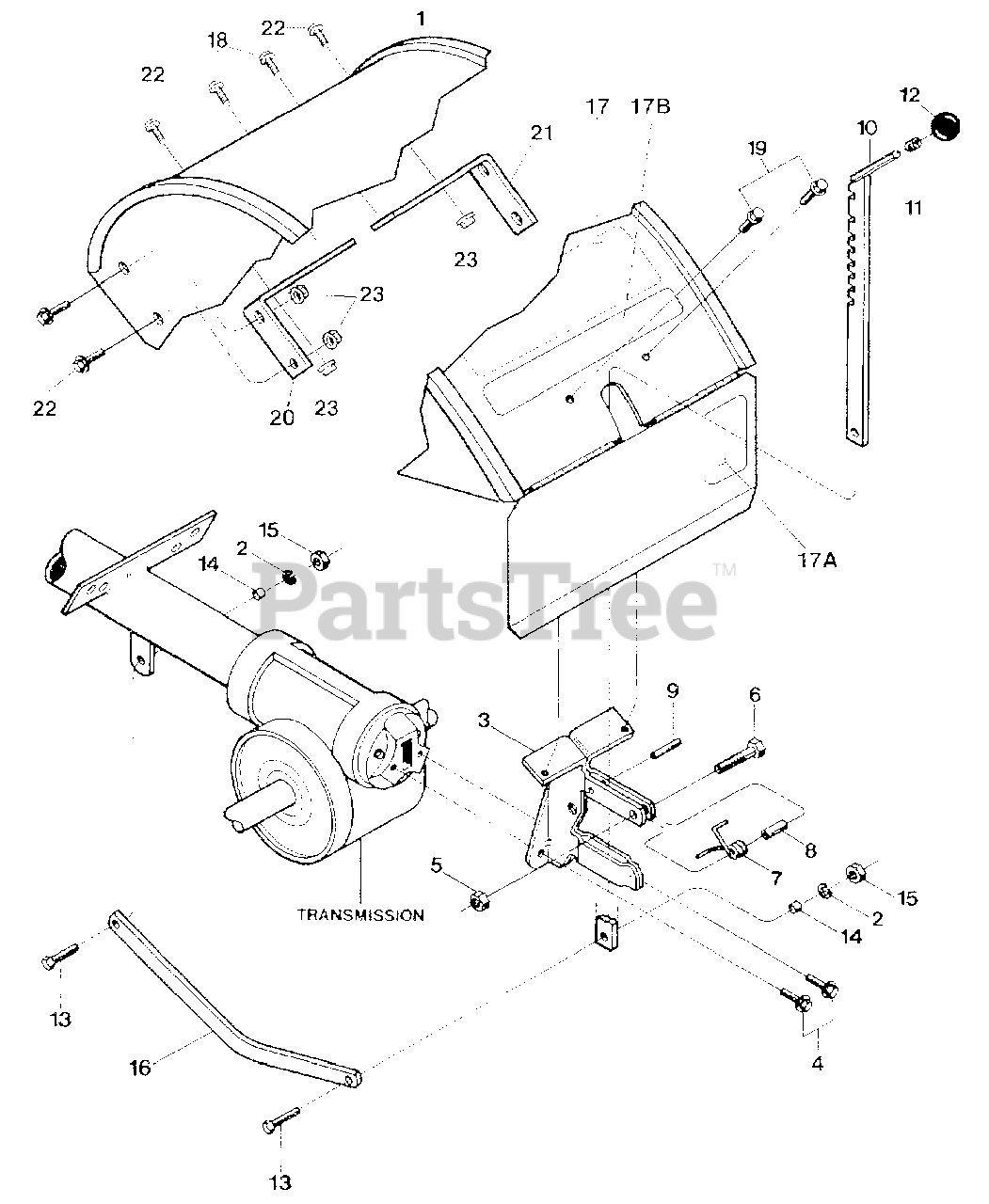

Hood, Bracket And Depth Regulator Parts Diagram

  • Title

1

Troy-Bilt 1917118

Hood-tine cover, with hinged flap
(Superseded to 986-04021)

Note: (Incl Ref No 17, 17A and 17B)

$

$

Not available

2

Troy-Bilt 1100243

Lockwasher-3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

3

MTD 1916184001

Bracket-hood & depth regulator

$

$

Not available

4

Troy-Bilt GW-90038

Screw-flanged hex hd, 5/16-18 x 5/8
(Superseded to 710-04049)

$4.99

$

In Stock, Qty 8

0

5

Troy-Bilt GW-9811

Locknut-hex, 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 1100069

Screw-hex hd , 1/4-20 x 1
(Superseded to 710-0597)

$4.49

$

In Stock, Qty 11

0

7

Troy-Bilt 9384

Spring-depth regulator plunger
(Superseded to 732-04320)

$4.99

$

In Stock, only 3 left!

0

8

Troy-Bilt GW-9438

Spacer
(Superseded to GW-9534)

$4.49

$

In Stock, Qty 6

0

9

Troy-Bilt 9308

Roll Pin-1/4 x 1 (spiral)
(Superseded to 715-0108)

$5.49

$

In Stock, Qty 15

0

10

MTD 1916186001

Bar Assembly-depth adjustment

$

$

Not available

11

Troy-Bilt 9120

Ring-retaining, tolerance ring
(Superseded to GW-9120)

$7.49

$

In Stock, Qty 6

0

12

Troy-Bilt 9119

Knob-depth regulator
(Superseded to GW-9119)

Note: (Incl. Ref. No 11)

$12.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 1100043

Screw-hex hd, 3/8-16 x 1-1/4
(Superseded to 710-3005)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 1113-1

Bushing-spacer, drag bar
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 1186231

Nut-hex, 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 13

0

16

Troy-Bilt 1916185001

Drag Bar-depth regulator

$25.99

$

Usually ships in 3-6 days

0

17

MTD 1916805

Decal-tiller operating instructions

$

$

Not available

17A

MTD 1911361

Decal- Warning

$

$

Not available

17B

MTD 1916919

Decal- Logo

$

$

Not available

18

Troy-Bilt 1766984

Screw-hex hd, self-tapping, 5/16-18 x 1/2

$3.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 9552

Screw-flanged hex hd, self-tapping, 1/4-20 x 1/2
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

20

MTD 1916700001

Bracket- support, left

$

$

Not available

21

MTD 1916701001

Bracket- support, right

$

$

Not available

22

Troy-Bilt 1186328

Bolt- hex hd , 5/16"-18 x 5/8"
(Superseded to 710-04049)

$4.99

$

In Stock, Qty 8

0

23

Troy-Bilt 1186391

Nut- hex, 5/16"-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0
