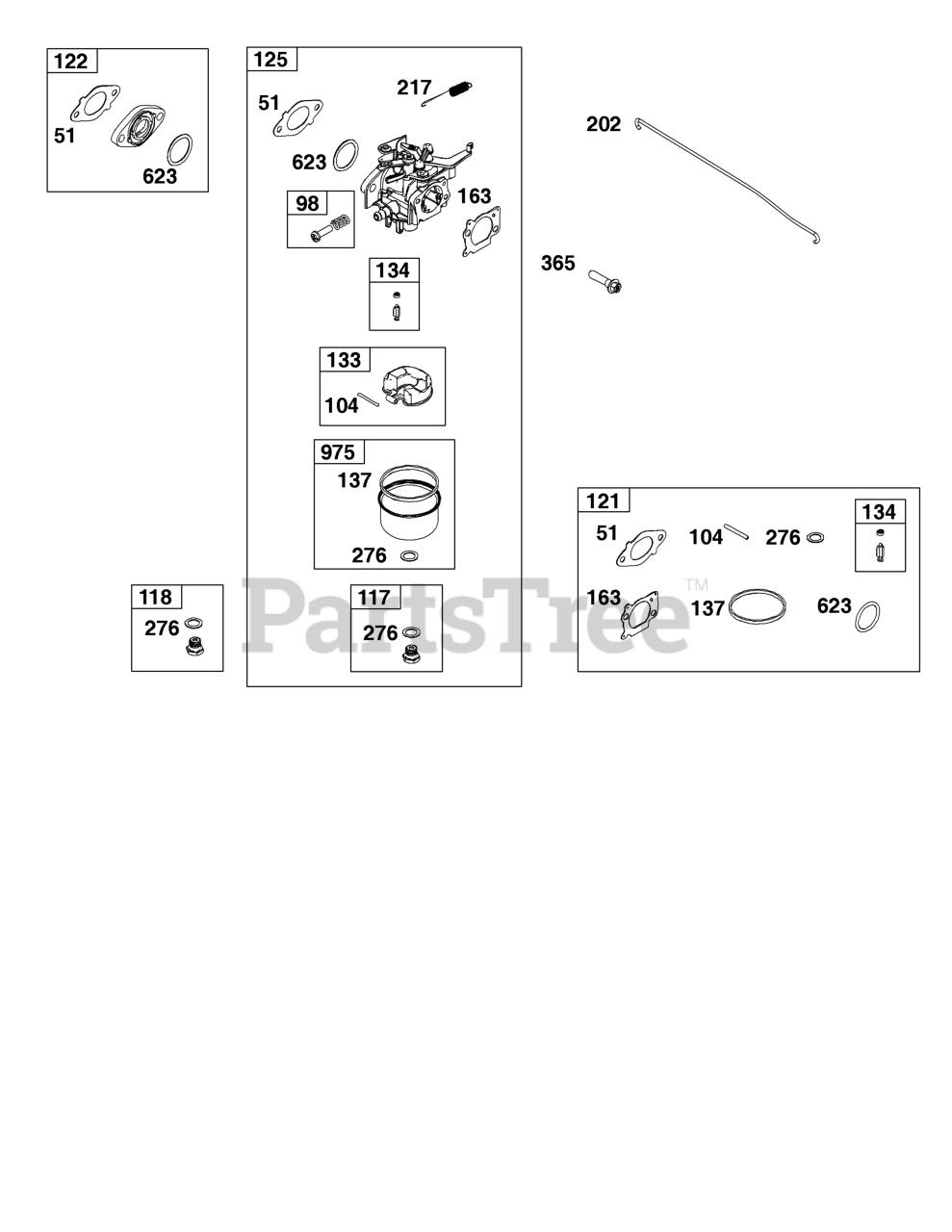

121S02-0037-F1 - Briggs & Stratton Vertical Engine Carburetor Group Parts Diagram

Vertical Engine

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

98

Briggs & Stratton 797156

Kit-Idle Speed

$14.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 797622

Pin-Float Hinge

$4.49

$

In Stock, Qty 10

0

117

Briggs & Stratton 798661

Jet-Main

Note: (Standard)

$21.99

$

In Stock, only 2 left!

0

118

Briggs & Stratton 798660

Jet-Main

Note: (High Altitude)

$21.99

$

In Stock, only 3 left!

0

121

Briggs & Stratton 592172

Kit-Carburetor Overhaul

$33.99

$

In Stock, Qty 8

0

122

Briggs & Stratton 796595

Spacer-Carburetor

$11.99

$

In Stock, only 2 left!

0

125

Briggs & Stratton 591137

Carburetor

$71.99

$

In Stock, Qty 8

0

133

Briggs & Stratton 797626

Float-Carburetor

$15.99

$

In Stock, only 2 left!

0

134

Briggs & Stratton 799177

Kit-Needle/Seat

$13.99

$

In Stock, Qty 8

0

137

Briggs & Stratton 797625

Gasket-Float Bowl

$8.49

$

In Stock, Qty 19

0

163

Briggs & Stratton 691894

Gasket-Air Cleaner

$4.49

$

In Stock, Qty 18

0

202

LINK, Mechanical Governor

Note: (Part information located in Controls Group.)

$

$

Not available

217

Briggs & Stratton 799179

Spring-Choke Return

$8.49

$

In Stock, only 2 left!

0

276

Briggs & Stratton 797632

Washer-Sealing

$8.49

$

In Stock, Qty 8

0

365

Briggs & Stratton 793458

Screw

Note: (Carburetor/Throttle Body)

$4.49

$

In Stock, only 2 left!

0

623

Briggs & Stratton 793628

Seal-O Ring

Note: (Carburetor Spacer)

$5.49

$

In Stock, Qty 9

0

633

Briggs & Stratton 797629

SEAL, Choke/Throttle Shaft

$4.49

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 797631

Bowl-Float

$47.99

$

In Stock, only 2 left!

0
