121S0B-0071-F1 - Briggs & Stratton Vertical Engine Carburetor Group Parts Diagram

Vertical Engine

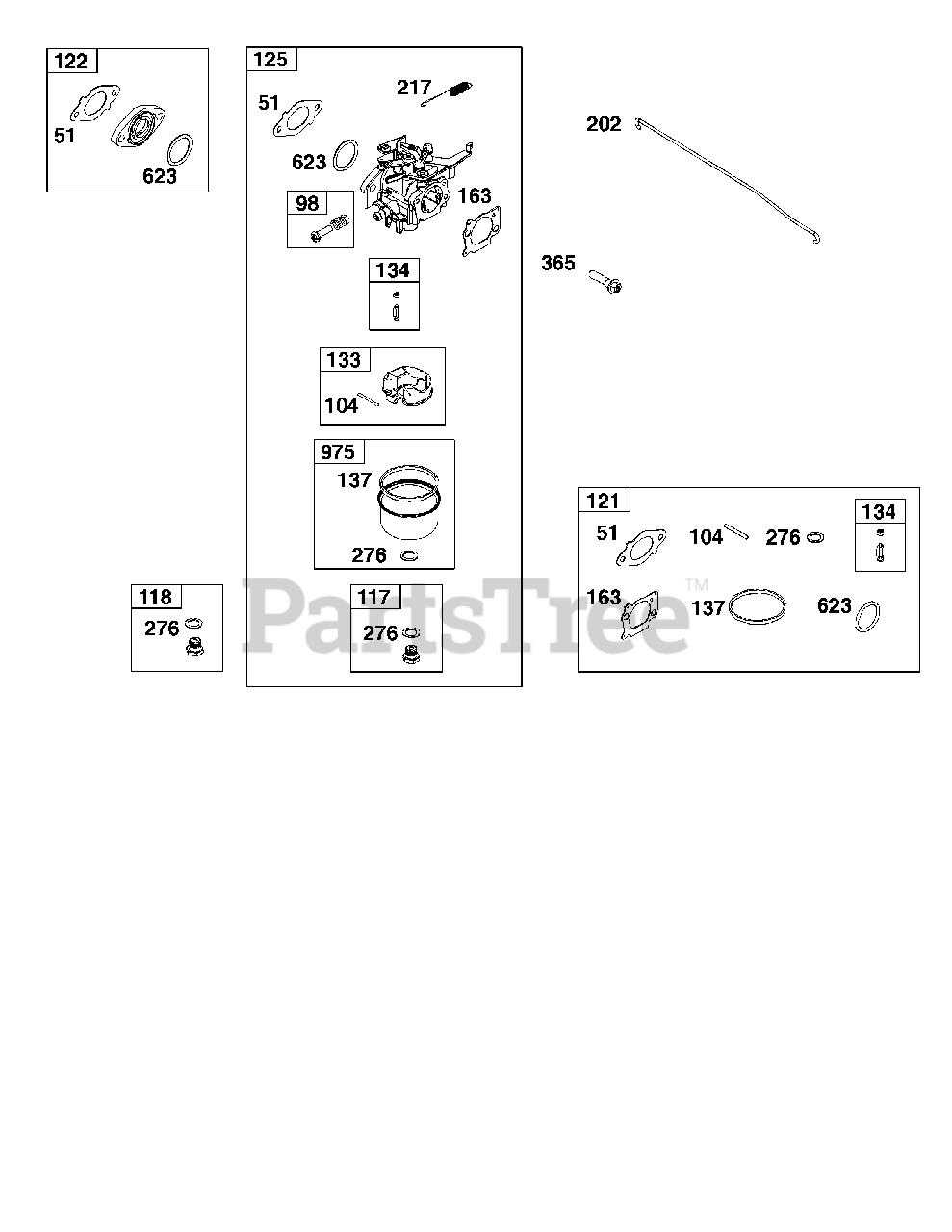

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

98

Briggs & Stratton 846817

KIT, Idle Speed

$

$

Not available

104

Briggs & Stratton 797622

PIN, Float Hinge

$4.49

$

In Stock, Qty 9

0

117

Briggs & Stratton 798660

JET, Main

Note: (Standard)

$21.99

$

In Stock, only 3 left!

0

118

Briggs & Stratton 799606

JET, Main

Note: (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 592172

KIT, Carburetor Overhaul

$33.99

$

In Stock, Qty 8

0

122

Briggs & Stratton 796595

SPACER, Carburetor

$11.99

$

In Stock, only 2 left!

0

125

Briggs & Stratton 593599

CARBURETOR

$

$

Not available

133

Briggs & Stratton 797626

FLOAT, Carburetor

$15.99

$

In Stock, only 2 left!

0

134

Briggs & Stratton 799177

KIT, Needle/Seat

$13.99

$

In Stock, Qty 7

0

137

Briggs & Stratton 797625

GASKET, Float Bowl

$8.49

$

In Stock, Qty 19

0

163

Briggs & Stratton 691894

GASKET, Air Cleaner

Note: (Air Cleaner)

$4.49

$

In Stock, Qty 18

0

202

LINK, Mechanical Governor

Note: (Part information located in Controls Group.)

$

$

Not available

217

Briggs & Stratton 799179

SPRING, Choke Return

$8.49

$

In Stock, only 2 left!

0

276

Briggs & Stratton 797632

WASHER, Sealing

$8.49

$

In Stock, Qty 8

0

365

Briggs & Stratton 699484

SCREW

Note: (Carburetor/Throttle Body)

$4.49

$

In Stock, only 4 left!

0

623

Briggs & Stratton 793628

SEAL, O-Ring

Note: (Carburetor Spacer)

$5.49

$

In Stock, Qty 12

0

633

Briggs & Stratton 797629

SEAL, Choke/Throttle Shaft

$4.49

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 797631

BOWL, Float

$47.99

$

In Stock, only 2 left!

0
