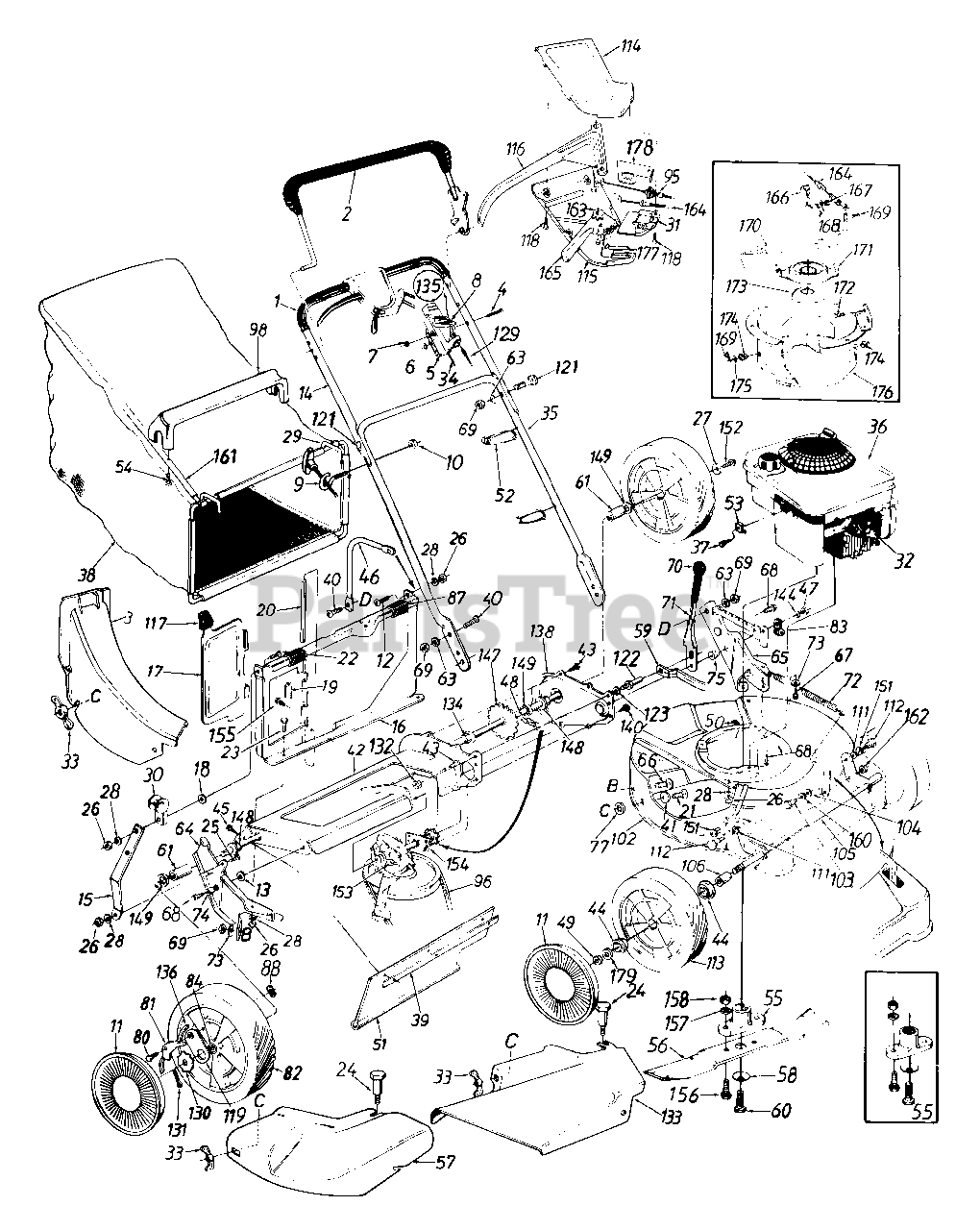

122-848R027 - MTD Walk-Behind Mower (1992) (Hardware Hank) > Parts Diagrams (2) > General Assembly

  • Title
720-0225

1

Foam Grip

Part# 720-0225 (Superseded to 720-0294)

Note: (Optional)

OEM Warranty Repair Part for MTD

Not available

647-0004

2

Control Handle Ass'y.

Part# 647-0004 (Superseded to 747-0824B-0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $46.39

731-1023

3

Rear Discharge Chute Ass'y.

Part# 731-1023

OEM Warranty Repair Part for MTD

Not available

710-0605

4

Oval C-Sunk Scr.

Part# 710-0605

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.08

746-0875

5

Throttle Body

Part# 746-0875 (Superseded to 946-0875)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.99

736-0501

6

Spr. Wash..66" I.D.

Part# 736-0501 (Superseded to 936-0501)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.81

712-0291

7

Hex L-Nut 1/4-20 Thd.

Part# 712-0291 (Superseded to 912-0291)

OEM Warranty Repair Part for MTD

Not available

746-0876

8

Throttle Lever

Part# 746-0876 (Superseded to 946-0876)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.97

710-1205

9

Rope Guide Bolt

Part# 710-1205

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

712-0324

10

Hex L-Nut 1/4-20 Thd.

Part# 712-0324

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.68

11

Hub Cap

Part#

Not available

731-0981A

Gray (5-1/2" Dia.)

Part# 731-0981A (Superseded to 731-0981C)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.40

731-0982A

Beige (5-1/2" Dia.)

Part# 731-0982A (Superseded to 731-0982C)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.74

720-0249

Gray (3-1/2" Dia.)

Part# 720-0249 (Superseded to 920-0249)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.57

710-0946

12

Truss Mach. Scr. 1/4-20 x .62" Lg.

Part# 710-0946

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.61

736-0258

13

Fl-Wash..383" I.D. x 1" O.D.

Part# 736-0258

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

749-0439B

14

Upper Handle - Painted

Part# 749-0439B

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Short Upper Handle, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $35.73

16129A

15

Panel Support Brkt.

Part# 16129A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-PANEL SUP

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.37

16862

16

Rear Catcher Panel Ass'y.

Part# 16862

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

No Longer Available

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Not available

POWDER BLACK (0637)

No Longer Available PANEL ASM

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

No Longer Available PANEL ASM

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

TECH GRAY (0648)

No Longer Available

Part# TECH GRAY (0648)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

No Longer Available PANEL ASM

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

No Longer Available PANEL ASM

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

17095A

17

Rear Discharge Door

Part# 17095A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Top Discharge Door

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

736-0211

18

Fl-Wash..285" I.D. x 1.25" O.D.

Part# 736-0211 (Superseded to 936-0211)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.81

732-0483A

19

Torsion Spring

Part# 732-0483A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.29

747-0514

20

Pivot Pin

Part# 747-0514

OEM Warranty Repair Part for MTD

Not available

710-0134

21

Carriage Bolt 1/4-20 x .62"

Part# 710-0134

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.98

710-0255

22

Truss Mach. Scr. 1/4-20 x 3/4" Lg.

Part# 710-0255 (Superseded to 710-0924)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.19

710-0289

23

Hex Bolt 1/4-20 x .50" Lg.

Part# 710-0289 (Superseded to 910-0289)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.53

738-0704

24

Shoulder Bolt .312 Dia. x .18 Lg.

Part# 738-0704 (Superseded to 938-0704)

Note: Special

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.13

710-0258

25

Hex Bolt 1/4-20 x .62" Lg.

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

712-0287

26

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0270

27

Bell-Wash. 1/4" I.D.

Part# 736-0270

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0329

28

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

747-0705

29

Front Grass Catcher Frame

Part# 747-0705

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

FRAME-CATCHER-FR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $37.40

719-0279

30

Rope Guide

Part# 719-0279

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $11.24

731-0906

31

S.P. Control Cover

Part# 731-0906 (Superseded to 753-0717)

OEM Warranty Repair Part for MTD

Not available

735-0639

32

Spark Plug Insulator

Part# 735-0639

OEM Warranty Repair Part for MTD

Not available

712-0397

33

Wing Nut w/Washer

Part# 712-0397 (Superseded to 712-0397A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.95

746-0674

34

Throttle Control Wire 61"

Part# 746-0674 (Superseded to 946-0674A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $13.58

749-0725

35

Lower Handle - Painted

Part# 749-0725 (Superseded to 749-0907B)

OEM Warranty Repair Part for MTD

Not available

36

Engine

Part#

Not available

710-1237

37

Hex Self-Tap Scr. #10-32 x .62" Lg.

Part# 710-1237

Note: New Part

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

764-0257

38

Grass Bag

Part# 764-0257 (Superseded to 964-0082)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $158.65

14835

39

Retaining Strip

Part# 14835

OEM Warranty Repair Part for MTD

Not available

710-0323

40

Truss Mach. Scr. 5/16-18 x .75" Lg.

Part# 710-0323

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.23

736-0204

41

Fl-Wash..344" I.D. x .62"

Part# 736-0204

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.08

17055B

42

Chain - Axle Ass'y.

Part# 17055B

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

No Longer Available Axle ASM-

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Not available

OLD CUB YELLOW (0498)

No Longer Available AXLE ASM-

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

SILVER FLAKE (0629)

No Longer Available Axle ASM-

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for MTD

Not available

POWDER BLACK (0637)

AXLE ASSY-CHAIN

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

AXLE ASSY-CHAIN

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

TECH GRAY (0648)

No Longer Available AXLE ASM-

Part# TECH GRAY (0648)

OEM Warranty Repair Part for MTD

Not available

RED METALLIC (0650)

No Longer Available AXLE ASM-

Part# RED METALLIC (0650)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

No Longer Available Axle ASM-

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

AXLE ASSY-CHAIN

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

MIDNIGHT BLUE (0667)

No Longer Available AXLE ASM-

Part# MIDNIGHT BLUE (0667)

OEM Warranty Repair Part for MTD

Not available

BLACK JACK (0691)

No Longer Available AXLE ASM-

Part# BLACK JACK (0691)

OEM Warranty Repair Part for MTD

Not available

710-0352

43

Hex B-Tap Scr. 1/4" x .38" Lg.

Part# 710-0352

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.24

741-0180

44

Flange Ball Bearing 1/2" I.D.

Part# 741-0180 (Superseded to 941-0180)

Note: (Optional)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $13.98

710-0776A

45

Hex AB-Tap Scr. 1/4 x .62"

Part# 710-0776A (Superseded to 710-0896)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

749-0778

46

Catcher Panel Support Arm

Part# 749-0778

OEM Warranty Repair Part for MTD

Not available

712-0296

47

Hex Patch L-Nut 3/8-24 Thd.

Part# 712-0296 (Superseded to 912-0296)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.71

713-0353

48

#48 Chain .500" Pitch x 30 Links

Part# 713-0353 (Superseded to 913-0353)

OEM Warranty Repair Part for MTD

Not available

712-3020

49

Hex Ins. Top L-Nut 3/8-16 Thd.

Part# 712-3020 (Superseded to 912-3020)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.42

731-0564

50

Plug

Part# 731-0564

OEM Warranty Repair Part for MTD

Not available

731-0672A

51

Rear Flap 3.75" x 17.30" Lg.

Part# 731-0672A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $24.00

726-0240

52

Cable Tie

Part# 726-0240 (Superseded to 725-0157)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.74

751-0568

53

Cable Clamp

Part# 751-0568 (Superseded to BS-690798)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.35

710-1025

54

Hex AB Scr. #12 x 1.25" Lg.

Part# 710-1025

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

753-0485

55

Blade Adapter Kit

Part# 753-0485

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $37.60

712-3020

Hex Ins. Top L-Nut 3/8-16 Thd.

Part# 712-3020 (Superseded to 912-3020)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.42

742-0563

56

21" Mulching Blade

Part# 742-0563 (Superseded to 942-0721)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $27.59

742-0306A

21" Blade

Part# 742-0306A (Superseded to 942-0621)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $25.36

731-1343

57

Mulching Plug

Part# 731-1343 (Superseded to 731-1343A)

Note: (Optional)

OEM Warranty Repair Part for MTD

Not available

736-0453

58

Bell-Wash..46" I.D

Part# 736-0453 (Superseded to 936-0453)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.57

16863

59

Height Adj. Connecting Arm

Part# 16863

OEM Warranty Repair Part for MTD

Not available

710-0757

60

Hex Bolt 7/16-20 x 1.5" Lg. (Grade 5)

Part# 710-0757

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.01

748-0190

61

Spacer .513" I.D. x .703" O.D. x .69" Lg

Part# 748-0190

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.39

736-0119

63

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.41

16136A

64

R.H. Handle Wheel Brkt. Ass'y.

Part# 16136A (Superseded to 16136C-0637)

OEM Warranty Repair Part for MTD

Not available

16137B

65

L.H. Handle Wheel Brkt. Ass'y.

Part# 16137B (Superseded to 16137C-0637)

OEM Warranty Repair Part for MTD

Not available

710-0260

66

Carriage Bolt 5/16-18 x .62"

Part# 710-0260 (Superseded to 710-0260A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.98

710-0603

67

Hex Wash. Hd. B-Tap Scr. 5/16-18

Part# 710-0603

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.34

710-0654A

68

Hex Wash. Hd. TT-Tap Scr. 3/8-16

Part# 710-0654A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

712-0267

69

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Not available

720-0223

70

Grip

Part# 720-0223

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.34

732-0606

71

Height Adj. Lever

Part# 732-0606

OEM Warranty Repair Part for MTD

Not available

732-0362

72

Extension Spring .75" O.D. x 8" Lg.

Part# 732-0362 (Superseded to 932-0362)

OEM Warranty Repair Part for MTD

Not available

736-0242

73

Bell-Wash. 5/16" I.D.

Part# 736-0242

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

750-0736

74

Spacer

Part# 750-0736 (Superseded to 950-0736)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.29

750-0624

75

Shld. Spacer .500" Dia.

Part# 750-0624

OEM Warranty Repair Part for MTD

Not available

726-0233

77

Bolt Retainer 1/4 x .50" O.D.

Part# 726-0233

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.12

738-0137

80

Shld. Scr..342" Dia. x .268

Part# 738-0137

OEM Warranty Repair Part for MTD

Not available

748-0188B

81

Pawl

Part# 748-0188B (Superseded to 948-0188B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.15

734-1510B

82

Wheel Ass'y. Comp. (Gray)

Part# 734-1510B (Superseded to 734-1826)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $23.92

734-1514B

Wheel Ass'y. Comp. (Beige)

Part# 734-1514B (Superseded to 734-1826)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $23.92

726-0175

83

Clamp

Part# 726-0175

OEM Warranty Repair Part for MTD

Not available

741-0486B

84

Bearing 1/2" I.D.

Part# 741-0486B

OEM Warranty Repair Part for MTD

Not available

731-0880

87

Panel Clip

Part# 731-0880

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.61

712-0414

88

Weld L-Nut 1/4-20 Thd.

Part# 712-0414 (Superseded to 912-0414)

OEM Warranty Repair Part for MTD

Not available

746-0710A

95

S.P. Cable

Part# 746-0710A (Superseded to 946-0710A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $28.55

754-0343

96

"V"-Belt

Part# 754-0343 (Superseded to 954-0343)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $24.59

710-0969

?97

Hex AB-Tap Scr. 1" Lg.

Part# 710-0969

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

731-0801

98

Bag Handle

Part# 731-0801

OEM Warranty Repair Part for MTD

Not available

16859A

102

21" Deck Ass'y.

Part# 16859A

OEM Warranty Repair Part for MTD

Not available

738-0234

103

Shld. Bolt .5" Dia. x .295

Part# 738-0234

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.55

736-0253

104

Bell-Wash..515" I.D. x 1.0" O.D.

Part# 736-0253 (Superseded to 936-0253)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.84

682-7509

105

Front Axle Ass'y.

Part# 682-7509 (Superseded to 982-7509-0637)

OEM Warranty Repair Part for MTD

Not available

711-0313

106

Sleeve .526" I.D. x .690" O.D. x .880" Lg.

Part# 711-0313

OEM Warranty Repair Part for MTD

Not available

736-0221

111

Intern. L-Wash. 3/8 I.D.

Part# 736-0221

OEM Warranty Repair Part for MTD

Not available

738-0705

112

Shld. Bolt .575" Dia. x .42

Part# 738-0705 (Superseded to 938-0705)

OEM Warranty Repair Part for MTD

Not available

734-1513B

113

Wheel Ass'y. Comp. (Gray)

Part# 734-1513B (Superseded to 753-08093)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $32.16

734-1517B

Wheel Ass'y. Comp. (Beige)

Part# 734-1517B

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $48.26

734-1512A

Wheel Ass'y. Comp. (Plastic)

Part# 734-1512A (Superseded to 734-1826)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $23.92

731-0904

114

Self-Propelled Control Cover

Part# 731-0904 (Superseded to 753-0717)

OEM Warranty Repair Part for MTD

Not available

731-0905

115

Self-Propelled Control Cover

Part# 731-0905 (Superseded to 753-0717)

OEM Warranty Repair Part for MTD

Not available

731-0620

116

Control Lever

Part# 731-0620 (Superseded to 731-0620A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.90

720-0190

117

Door Grip

Part# 720-0190 (Superseded to 720-0426)

OEM Warranty Repair Part for MTD

Not available

710-0841

118

Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg.

Part# 710-0841

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.14

168555

119

Pawl Plate

Part# 168555

OEM Warranty Repair Part for MTD

Currently unavailable

710-0671

121

Curved Carr. Bolt 5/16-18 x 1.38" Lg

Part# 710-0671

OEM Warranty Repair Part for MTD

Not available

711-0805

122

Shld. Pin 3/8-24 x 1.43" Lg.

Part# 711-0805

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.53

736-0169

123

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.64

746-0557

129

Control Cable 47" Lg.

Part# 746-0557 (Superseded to 946-0557)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $19.90

748-0318

130

Ratchet Wheel 1.62" O.D.

Part# 748-0318 (Superseded to 948-0318)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.21

714-0115

131

Cotter Pin 1/8" Dia. x 1.00" Lg.

Part# 714-0115 (Superseded to 914-0115)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.79

712-0711

132

Hex Jam Nut 3/8-24 Thd.

Part# 712-0711

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

731-0884

133

Side Chute Deflector Ass'y.

Part# 731-0884

OEM Warranty Repair Part for MTD

Not available

741-0522

134

Hex Flange Bearing

Part# 741-0522 (Superseded to 941-0522)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.16

811-00185

135

Throttle Box Comp.

Part# 811-00185 (Superseded to 811-0185)

Note: (Incl. Ref. 4, 5, 6, 7, 8)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $27.13

10622B

136

Spring - Nylon

Part# 10622B (Superseded to 10622BP)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.52

17053A

138

Chain Cover

Part# 17053A

OEM Warranty Repair Part for MTD

Variations

BRILLIANT GREEN (0480)

No Longer Available COVER-CHAI

Part# BRILLIANT GREEN (0480)

OEM Warranty Repair Part for MTD

Not available

CHARCOAL GRAY (0483)

No Longer Available COVER-CHAI

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Not available

POWDER BLACK (0637)

No Longer Available COVER-CHAI

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

No Longer Available COVER-CHAI

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

RED METALLIC (0650)

No Longer Available COVER-CHAI

Part# RED METALLIC (0650)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

No Longer Available COVER-CHAI

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

No Longer Available COVER-CHAI

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

YARDMAN YELLOW (0674)

No Longer Available COVER-CHAI

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for MTD

Not available

710-0599

140

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

Part# 710-0599

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

736-0300

144

Fl-Wash..385" I.D. x .87"

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

738-0719A

147

Rear Shaft Ass'y. 21.94" Lg.

Part# 738-0719A (Superseded to 938-0719A)

OEM Warranty Repair Part for MTD

Not available

741-0324

148

Hex Flange Bearing .506" I.D. Plastic

Part# 741-0324 (Superseded to 741-0324A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.61

734-0160

149

Fl-Wash..531" I.D. x.930"

Part# 734-0160

OEM Warranty Repair Part for MTD

Currently unavailable

741-0491

151

Flanged Nyliner Brg.

Part# 741-0491

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.52

710-0751

152

Hex Bolt 1/4-20 x .62" Lg. (Grade 5)

Part# 710-0751

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

717-0417B

153

Transmission Comp. (See Breakdown)

Part# 717-0417B (Superseded to 917-0417B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $190.76

16500

154

Hex Bearing Cup

Part# 16500 (Superseded to 16500A-0637)

Note: (See Breakdown)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.49

710-0429

155

Hex B-Tap Scr. #10 x .38

Part# 710-0429 (Superseded to 910-0429)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.57

710-1055

156

Hex Scr. 3/8-24 x 1.0" Lg.

Part# 710-1055

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.37

736-0169

157

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.64

712-0241

158

Hex Nut 3/8-24 Thd.

Part# 712-0241

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.10

736-0108

160

Fl-Wash..51" I.D. x .75" O.D.

Part# 736-0108 (Superseded to 936-0108)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.87

749-0764A

161

Rear Catcher Frame

Part# 749-0764A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

FRAME-CATCHER-RR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $32.37

712-0266

162

Hex Jam Nut 3/8-16 Thd.

Part# 712-0266 (Superseded to 712-0266A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

713-0397

163

3 Tooth Rack Gear Insert

Part# 713-0397 (Superseded to 913-0397)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.60

746-0706

164

Spd. Control Cable - 50" Lg.

Part# 746-0706

OEM Warranty Repair Part for MTD

Not available

731-0924

165

6-Spd. Shift Lever

Part# 731-0924

OEM Warranty Repair Part for MTD

Not available

17070

166

Adjustable Cable Brkt.

Part# 17070

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-ADJ CABLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

736-0270

167

Bell-Wash..265" I.D. x .75" O.D.

Part# 736-0270

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

712-0291

168

Hex Cent. L-Nut 1/4-20 Thd.

Part# 712-0291 (Superseded to 912-0291)

OEM Warranty Repair Part for MTD

Not available

714-0507

169

Cot-Pin 3/32" Dia. x .75" Lg.

Part# 714-0507 (Superseded to 914-0507)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

747-0684

170

Shift Rod

Part# 747-0684

OEM Warranty Repair Part for MTD

Not available

741-0500A

171

Movable Pulley Half Ass'y.

Part# 741-0500A (Superseded to 941-0500A)

OEM Warranty Repair Part for MTD

Not available

710-0167

172

Carr. Bolt 1/4-20 x .50" Lg.

Part# 710-0167

OEM Warranty Repair Part for MTD

Not available

756-0503

173

Spined Pulley Half

Part# 756-0503

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.39

731-1137

174

Flanged Bushing

Part# 731-1137 (Superseded to 931-1137)

OEM Warranty Repair Part for MTD

Not available

736-0278

175

Fl-Wash..328" I.D. x .68" O.D.

Part# 736-0278

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.00

17073

176

Cable Mtg. Brkt. Ass'y.

Part# 17073

OEM Warranty Repair Part for MTD

Not available

732-0627

177

Shift Lever Spring

Part# 732-0627 (Superseded to 732-0627A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.75

16864

178

6-Speed Rack Cable Brkt.

Part# 16864

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.86

736-0300

179

Fl-Wash. .385" I.D. x .87" O.D.

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15
