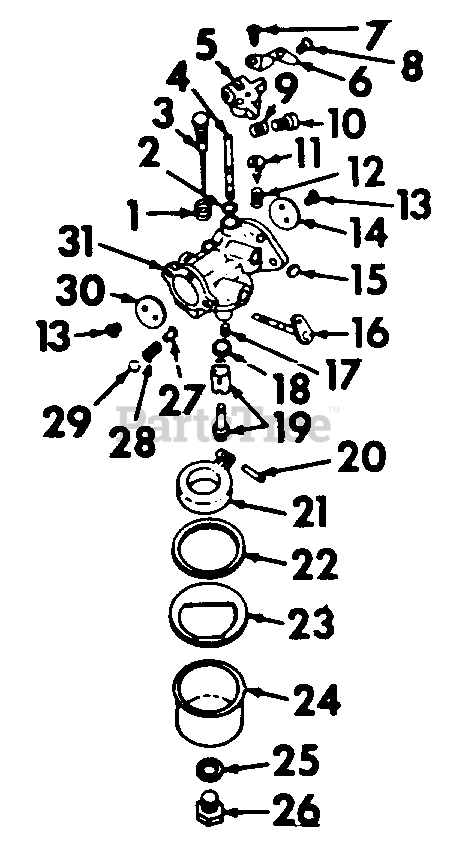

122 - Cub Cadet Garden Tractor Carburetor Parts Diagram

Garden Tractor

Carburetor Parts Diagram

  • Title

Cub Cadet KH-47-853-22

Carburetor Assy

$

$

Not available

1

Cub Cadet KH-200383

Spring, High Speed Needle

$

$

Not available

2

Seal, Throttle Shaft Dust

Note: (Furnish complete Carburetor Assy)

$

$

Not available

3

Cub Cadet KH-235415

Needle Assy, High Speed

$

$

Not available

4

Shaft, Throttle

Note: (Furnish complete Carburetor Assy)

$

$

Not available

5

Dog Assy, Throttle Shaft

Note: (Furnish complete Carburetor Assy)

$

$

Not available

6

Cub Cadet KH-275228

Lever, Throttle

Note: (Furnish complete Carburetor Assy)

$

$

Currently unavailable

7

Screw w/Washer, Throttle Lever

Note: (Furnish complete Carburetor Assy)

$

$

Not available

8

Screw, 8-32 x 1/2 Slt Fil Hd Mach

Note: (Common Hardware, purchase locally)

$

$

Not available

9

Cub Cadet KH-200380

Spring, Throttle Lever

$8.49

$

Usually ships in 2-5 days

0

10

~NLA

Screw, Throttle Adjusting

$

$

Not available

11

Cub Cadet KH-235006

Screw, Idle Adjusting
(Superseded to KH-235006-S)

$

$

Not available

12

Cub Cadet KH-200380

Spring, Idle Adjusting Screw

$8.49

$

Usually ships in 2-5 days

0

13

Screw, Choke & Throttle Valve

Note: (Furnish complete Carburetor Assy)

$

$

Not available

14

Valve Assy, Throttle

Note: (Furnish complete Carburetor Assy)

$

$

Not available

15

Plug, 3/8 Aluminum Expansion

Note: (Furnish complete Carburetor Assy)

$

$

Not available

16

Shaft & Lever Assy, Choke

Note: (Furnish complete Carburetor Assy)

$

$

Not available

17

Nozzle, High Speed Needle

Note: (Furnish complete Carburetor Assy)

$

$

Not available

18

Gasket, Needle Seat

Note: (Furnish Repair Kit KH-25-757-01)

$

$

Not available

19

Needle & Seat Assy w/Spring

Note: (Furnish Repair Kit KH-25-757-01)

$

$

Not available

20

Cub Cadet KH-200376

Pin, Float & Lever

$

$

Not available

21

Cub Cadet KH-25-757-03

Float & Lever Assy
(Superseded to KH-25-757-03-S)

$

$

Not available

22

Cub Cadet KH-200375

Gasket, Fuel Bowl Ring

$7.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-25-041-02

Gasket, Fuel Bowl

$

$

Not available

24

Cub Cadet KH-235448

Bowl, Fuel

$

$

Not available

25

Gasket, Fuel Bowl Screw

Note: (Furnish Repair Kit KH-25-757-01)

$

$

Not available

26

Cub Cadet KH-47-100-06

Screw, Fuel Bowl
(Superseded to KH-47-100-06-S)

$

$

Not available

27

Plug, Idle Passage Rivet

Note: (Furnish complete Carburetor Assy)

$

$

Not available

28

Spring, Choke Shaft

Note: (Furnish complete Carburetor Assy)

$

$

Not available

29

Ball, Choke Shaft

Note: (Furnish complete Carburetor Assy)

$

$

Not available

30

Valve Assy, Choke

Note: (Furnish complete Carburetor Assy)

$

$

Not available

31

Body, Carburetor

Note: (Order Carburetor Assy)

$

$

Not available

Cub Cadet KH-25-757-01

Kit, Carburetor Repair

Note: (Consists of Ref No. 19, 20, 22, 23 & 25)

$22.99

$

In Stock, Qty 19

0
