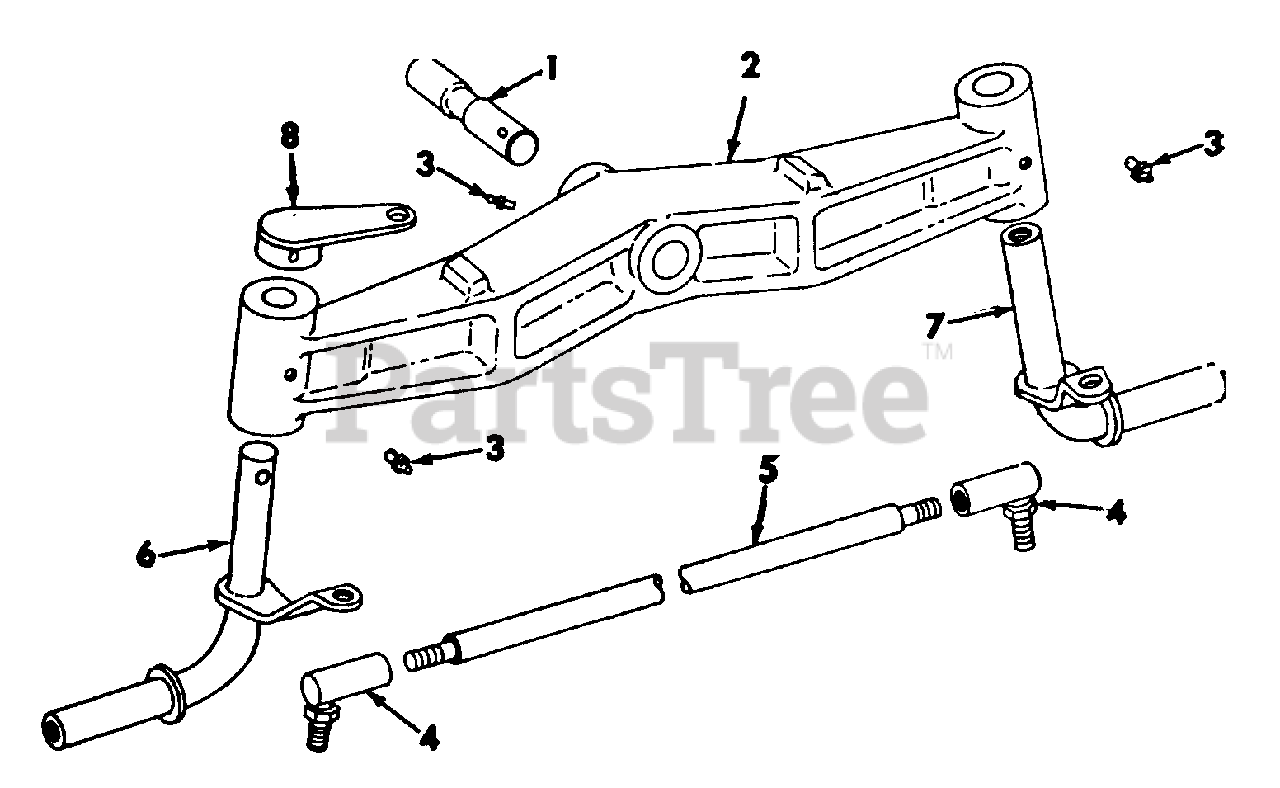

122 - Cub Cadet Garden Tractor Front Axle & Connections Parts Diagram

Garden Tractor

Front Axle & Connections Parts Diagram

  • Title

1

Cub Cadet IH-384626-R3

Pin, Front Axle Pivot
(Superseded to IH-384626-R4)

$

$

Not available

Cub Cadet IH-591184-R1

Pin, 3/16 X 1-1/4 Hv Coiled Spring

$

$

Not available

2

Cub Cadet 759-3011

Axle, Front
(Superseded to 959-3011)

$

$

Not available

3

Cub Cadet 737-3000

Fitting, 3/16 Drive Type Str Lube
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 723-3018

Joint, Tie Rod
(Superseded to 923-3018)

$15.99

$

In Stock, Qty 20+

0

Nut, 3/8-24 Hex Lock

$

$

Not available

5

Cub Cadet IH-384632-R1

Rod, Tie

$

$

Not available

Cub Cadet 712-3001

Nut, 3/8-24 Hex
(Superseded to 912-3001)

$6.49

$

In Stock, Qty 20+

0

6

Cub Cadet 759-3004

Knuckle Assy, Steering LH

Variations

Cub Cadet 759-3004-0637

Knuckle Assembly, LH Black - POWDER BLACK (0637)

$169.99

$

In Stock, Qty 5

0

$169.99

$

In Stock, Qty 5

0

Screw, 3/8-16 X 3/4 Hex hd Cap

$

$

Not available

Cub Cadet 736-0227

Washer, 13/32 X 1-1/2 X 11 Ga

$5.99

$

In Stock, Qty 20+

0

7

Cub Cadet 759-3006

Knuckle Assy, Steering RH

Variations

Cub Cadet 759-3006-0637

Knuckle Assembly, RH Black - POWDER BLACK (0637)

$163.99

$

Usually ships in 3-6 days

0

$163.99

$

In Stock, only 1 left!

0

Screw, 3/8-16 X 3/4 Hex Hd Cap

$

$

Not available

Cub Cadet 736-0227

Washer, 13/32 X 1-1/2 X 11 Ga

$5.99

$

In Stock, Qty 20+

0

8

Cub Cadet 759-3120

Arm Assy, Drag Link
(Superseded to 959-3120)

$109.99

$

Usually ships in 3-6 days

0

Cub Cadet 715-3009

Pin, 5/16 X 2 Hv Coiled Spring

$8.99

$

In Stock, only 1 left!

0
