122 - Cub Cadet Garden Tractor Steering Gear & Connections Parts Diagram

Garden Tractor

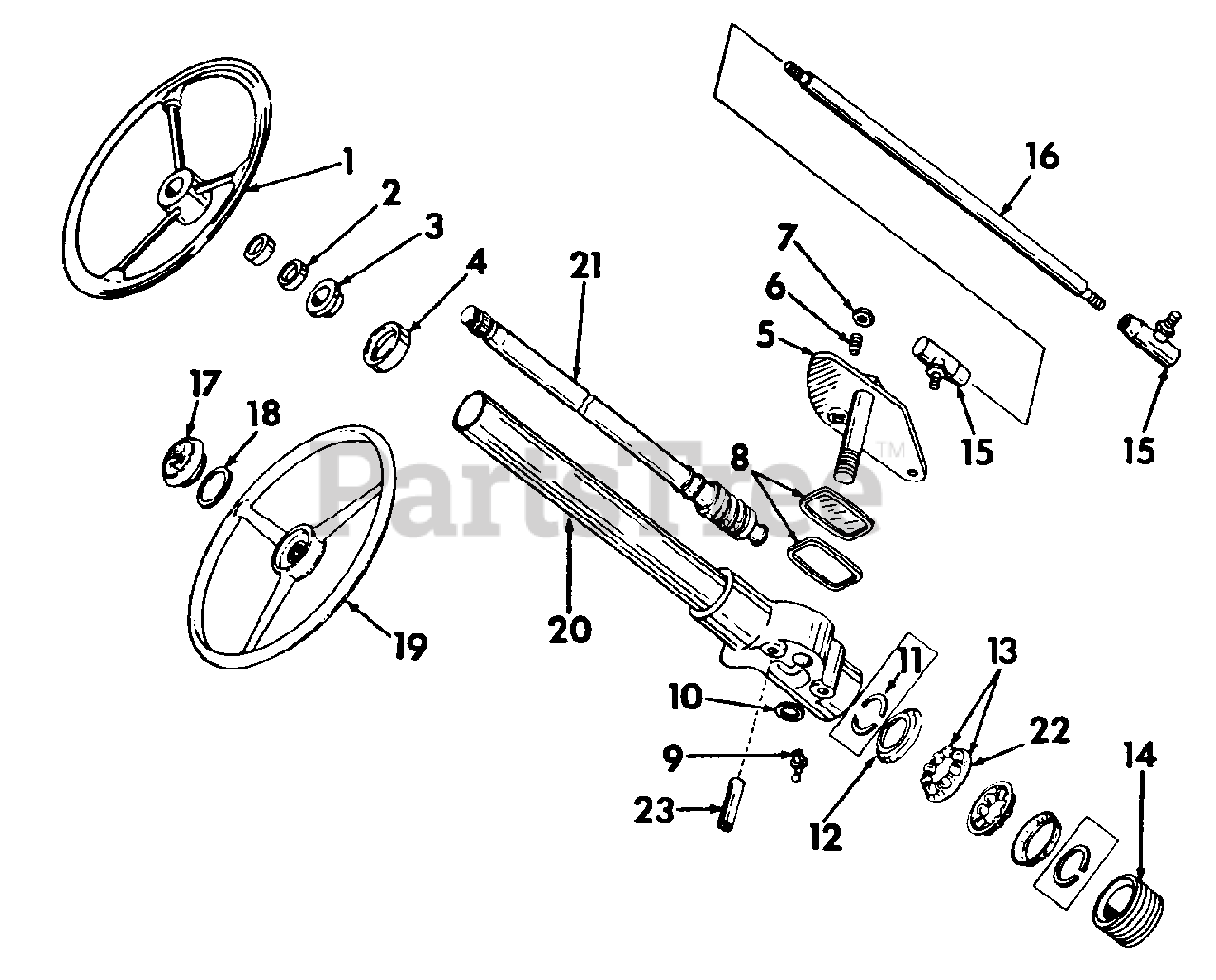

Steering Gear & Connections Parts Diagram

  • Title

Cub Cadet 703-1085

Gear Assy, Steering

Note: (Marked CCC) (For repair parts use Garden Tractor Model 1210)

$

$

Not available

Cub Cadet 710-3001

Screw, 3/8-16 X .88 Lg GR5

$6.99

$

In Stock, Qty 11

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

1

Note: Not used in this application

$

$

Not available

2

Cub Cadet 723-3001

Seal, Steering Gear
(Superseded to 723-3040)

$

$

Not available

3

Cub Cadet IH-866105-R1

Bearing, Column Upper
(Superseded to 941-3023)

$7.99

$

In Stock, Qty 17

0

3

Cub Cadet 741-3000

Bearing, Column Upper
(Superseded to 941-3023)

Note: (Use with IH-400884-R91)

$7.99

$

In Stock, Qty 17

0

4

Cub Cadet IH-376480-R1

Retainer, Bearing
(Superseded to 941-3023)

$7.99

$

In Stock, Qty 17

0

5

Cub Cadet IH-385522-R1

Lever & Bolt Assy

$

$

Not available

~NLA

Nut, 5/8-18 Hex Jam

$

$

Not available

6

Cub Cadet IH-379992-R1

Stud, Cam Follower

Note: (Used w/steering gear IH-384800-R95)

$

$

Not available

6

Cub Cadet IH-62806-C1

Stud, Cam Follower
(Superseded to IH-62806-C2)

Note: (Used w/steering gear IH-400884-R91)

$

$

Not available

7

Cub Cadet IH-192510-R1

Nut, Cam Follower Stud
(Superseded to 712-3029)

$6.49

$

In Stock, Qty 8

0

Cub Cadet IH-114608

Washer, 1/2 Ext Tooth Lock

$

$

Not available

8

Cub Cadet IH-376478-R91

Package, Seal & Seal Retainer

Note: (Used w/tube IH-385983-R91)

$

$

Not available

8

Cub Cadet IH-394936-R91

Package, Seal & Seal Retainer

Note: (Used w/tube IH-394927-R91)

$

$

Not available

9

Cub Cadet IH-273360

Fitting, 1/4 65 Deg Angle Drive Lube

$

$

Not available

10

Cub Cadet IH-308362-C1

Washer, Flat, Bronze

$

$

Not available

11

Note: Not used in this application

$

$

Not available

12

Cub Cadet IH-379405-R1

Retainer, Bearing Ball
(Superseded to 903-1029)

$

$

Not available

13

Cub Cadet IH-389081-R91

Retainer & Ball Assy
(Superseded to 941-3021)

$34.99

$

In Stock, Qty 13

0

14

Cub Cadet IH-394288-R1

Plug, Adjusting

$

$

Not available

Cub Cadet 714-3015

Pin, 1/8 X 1/2 Cot

$

$

Not available

15

Cub Cadet 723-3018

Joint, Tie Rod End
(Superseded to 923-3018)

$15.99

$

In Stock, Qty 20+

0

Nut, 3/8-24 Hex Lock

$

$

Not available

16

Cub Cadet IH-384801-R1

Link, Steering Gear Drag

$

$

Not available

Cub Cadet 712-3001

Nut, 3/8-24 Hex Jam
(Superseded to 912-3001)

$6.49

$

In Stock, Qty 20+

0

17

Cub Cadet 731-3012

Cap, Steering Wheel
(Superseded to 931-3012)

$

$

Not available

18

Cub Cadet IH-385736-R1

Retainer, Steering Wheel Cap

$

$

Currently unavailable

19

Cub Cadet IH-385734-R1

Wheel, Steering

$

$

Not available

~NLA

Nut, 5/8-18 Cd or Zn-Pltd Hex Jam

$

$

Not available

20

Cub Cadet IH-401277-R1

Tube Assy, Housing & Jacket

$

$

Not available

21

Cub Cadet IH-385984-R91

Cam & Tube Assy
(Superseded to 703-1085)

$

$

Not available

22

Cub Cadet IH-389081-R1

Retainer, Ball
(Superseded to 941-3021)

$34.99

$

In Stock, Qty 13

0

23

~NLA

Spacer Pipe

$

$

Not available

Cub Cadet 736-0140

Washer, 13/32 X 13/16 X .65

$6.99

$

In Stock, Qty 9

0

Cub Cadet 736-0148

Washer, 3/8 Ext Tooth Lock

$3.49

$

In Stock, Qty 12

0

Screw, 3/8-16 X 6-1/4 Hex Hd Cap

$

$

Not available
