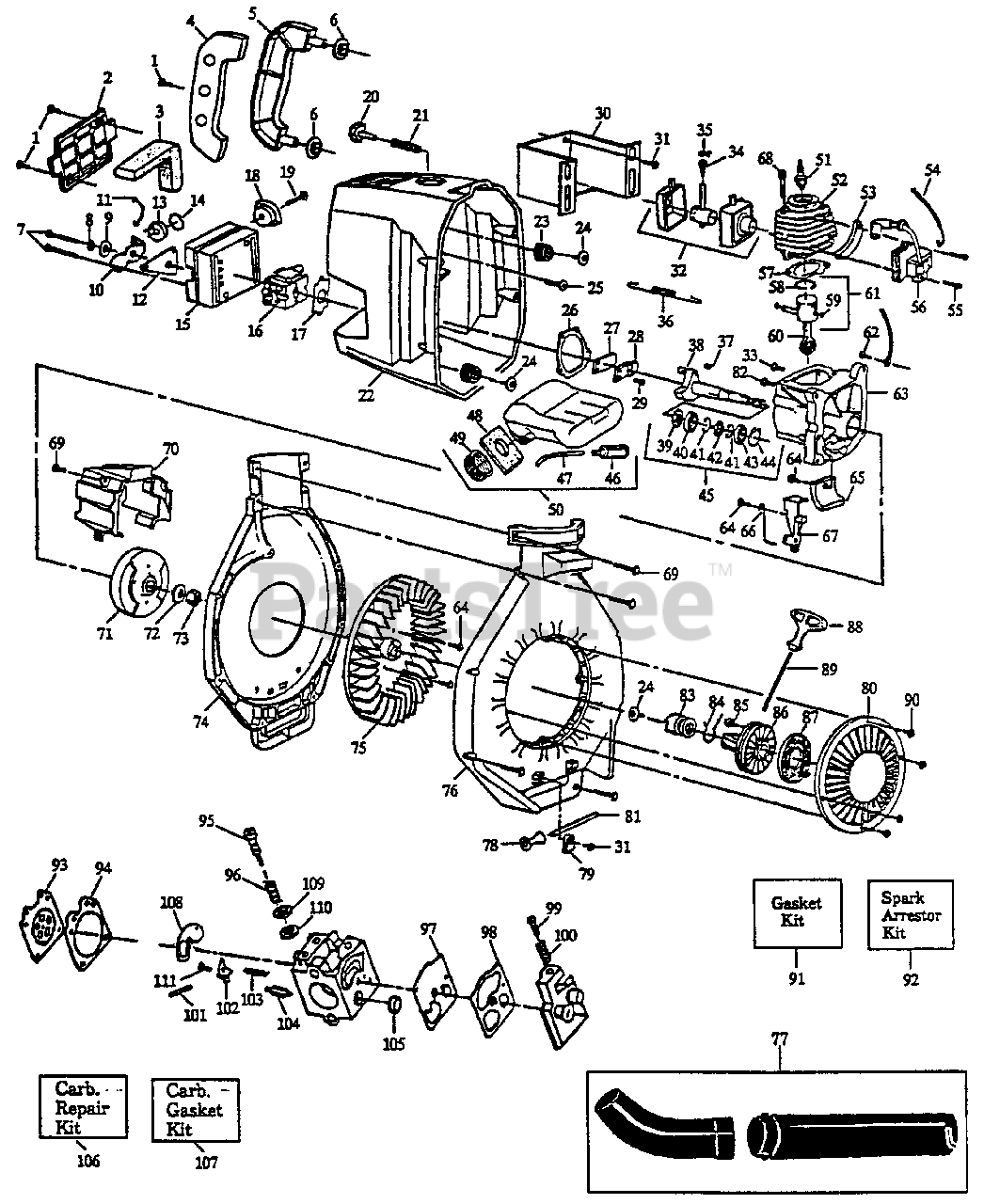

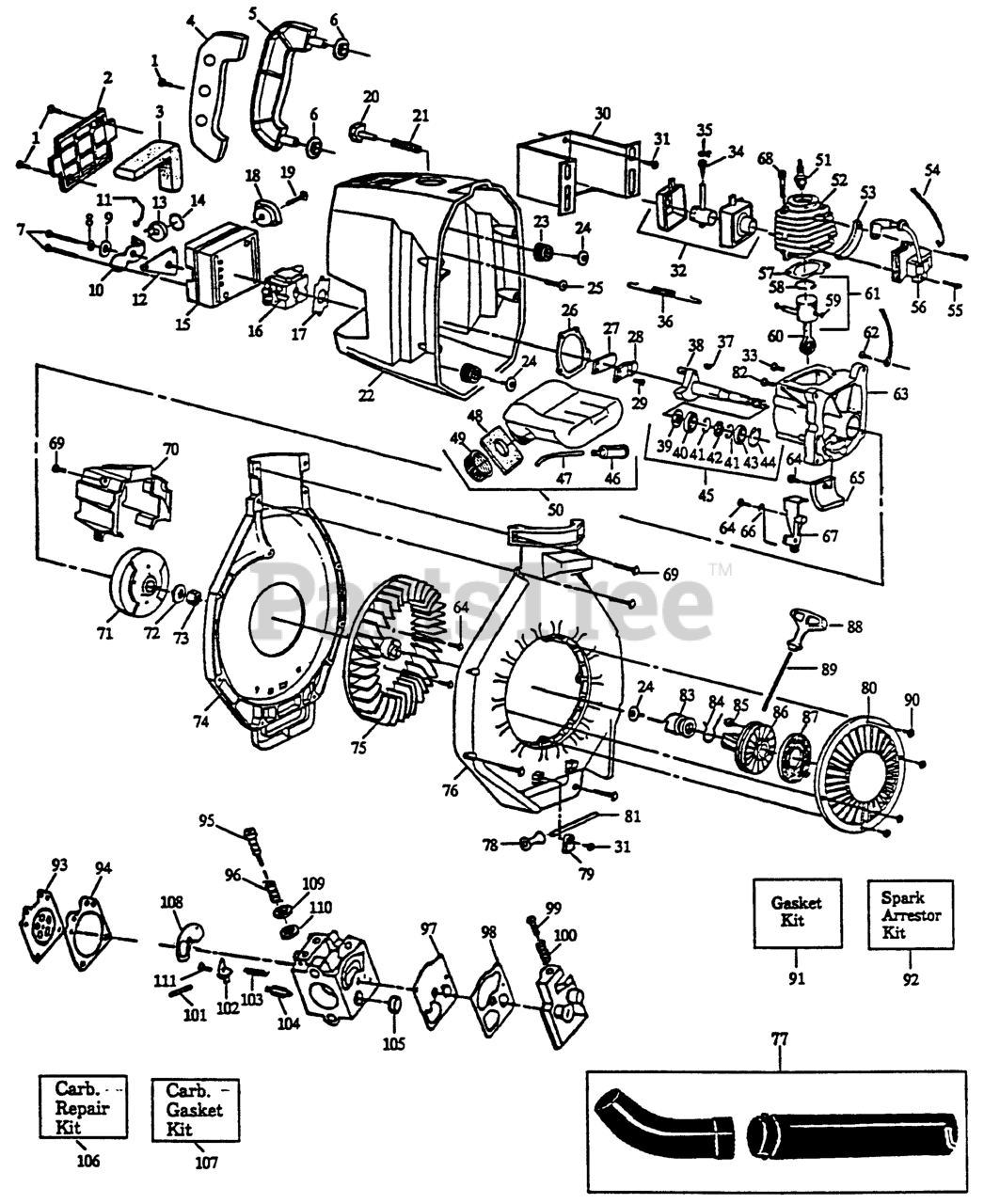

122 HBV - Husqvarna Handheld Blower/Vacuum (1992-01) Spare Parts Parts Diagram

Handheld Blower/Vacuum

Spare Parts Parts Diagram

  • Title

1

Husqvarna 530015635

SCREW-10-14X5/8 PHIL.FI

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 530029708

AIR FILTER COVER

$

$

Not available

3

Husqvarna 530029611

FOAM AIR FILTER

$

$

Not available

4

Husqvarna 530029615

HANDLE COVER

$

$

Not available

5

Husqvarna 530029614

HANDLE

$

$

Not available

6

Husqvarna 530029608

HANDLE ISOLATOR

$

$

Not available

7

Husqvarna 530015887

SCREW

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 530015852

CHOKE SPACER

$

$

Not available

9

Husqvarna 530015254

WASHER

$

$

Not available

10

Husqvarna 530029480

CHOKE SHUTTER

$

$

Not available

11

Husqvarna 530029485

THROTTLE WIRE

$

$

Not available

12

Husqvarna 530029481

CHOKE MTG PLATE

$

$

Not available

13

Husqvarna 530029486

RETAINER

$

$

Not available

14

Husqvarna 530015147

WAVE WASHER

$2.49

$

Usually ships in 3-10 days

0

15

Husqvarna 530029707

AIR BOX
(Superseded to 530037846)

$

$

Not available

16

Husqvarna 530035290

CARBURETOR WA-207A
(Superseded to 545081825)

$

$

Not available

17

Husqvarna 530019164

GASKET-CARB

$2.49

$

In Stock, only 2 left!

0

18

Husqvarna 530029484

Throttle Knob

$

$

Not available

19

Husqvarna 530015880

SCREW

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 530029600

KILL SWITCH BUTTON

$

$

Not available

21

Husqvarna 530029607

SPRING-BUTTON

$

$

Not available

22

Husqvarna 530029709

Shroud

$

$

Not available

23

Husqvarna 530029434

SPRING

$

$

Not available

24

Husqvarna 530015879

SCREW

$

$

Not available

25

Husqvarna 530015876

SCREW

$

$

Not available

26

Husqvarna 530019154

GASKET-C'CASE/SHROUD

$

$

Not available

27

Husqvarna 530027593

VALVE-REED

$5.99

$

In Stock, only 1 left!

0

28

Husqvarna 530029781

REED STOP

$

$

Not available

29

Husqvarna 530015241

SCREW-6-19X5/16PLAST PA
(Superseded to 545227101)

$3.99

$

In Stock, Qty 9

0

30

Husqvarna 530029597

HEAT SHIELD

$

$

Not available

31

Husqvarna 530015805

SCREW-10-14 X 1/2 PLASTITE

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 530069293

MUFFLER

$

$

Not available

33

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$3.99

$

In Stock, only 2 left!

0

34

Husqvarna 530029227

SCREEN-SPARK ARRESTOR

$

$

Not available

35

Husqvarna 530029228

CLAMP-SPARK ARRESTOR

$

$

Not available

36

Husqvarna 530029116

SPRING-MUFFLER

$

$

Not available

37

Husqvarna 530015126

KEY-FLYWHEEL

$

$

Not available

38

Husqvarna 530010945

ASSY-CRANKSHAFT

$

$

Not available

39

Husqvarna 530015788

SPACER-BEARING

$

$

Not available

40

Husqvarna 530032103

Inner Bearing

$

$

Not available

41

Husqvarna 530015787

RING-RETAINING

$

$

Not available

42

Husqvarna 530019158

SEAL-CRANKSHAFT

$

$

Not available

43

Husqvarna 530032102

BEARING-R8 (OUTER)

$

$

Not available

44

Husqvarna 530015789

RING-RETAINING (SHAFT)

$

$

Not available

45

Husqvarna 530014004

Crankcase/Crankshaft Ass'y.

$

$

Not available

46

Husqvarna 530010897

ASSY-FUEL PICK-UP
(Superseded to 530095646)

$7.49

$

In Stock, Qty 20+

0

47

Husqvarna 530069247

HOSE. FUEL

$8.49

$

In Stock, Qty 20+

0

48

Husqvarna 530029602

FOAM-FUEL TANK

$

$

Not available

49

Husqvarna 530010807

USE 5300107-29
(Superseded to 530014347)

$9.49

$

In Stock, Qty 10

0

50

Husqvarna 530014267

Fuel Tank Ass'y.

$

$

Not available

51

Husqvarna 530030075

Spark Plug

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 530012244

CYLINDER (22CC) (SERVIC
(Superseded to 530069627)

$

$

Not available

53

Husqvarna 530027525

SPACER-IGNITION MODULE

$1.49

$

Usually ships in 3-10 days

0

54

Husqvarna 530029606

LEADWIRE SWITCH

$

$

Not available

55

Husqvarna 530015776

SCREW 8-32 X 1-9/32

$

$

Not available

56

Husqvarna 530039137

IGNITION MODULE

$53.99

$

Usually ships in 3-10 days

0

57

Husqvarna 530019178

GASKET-CYL W/ADHESIVE
(Superseded to 530019267)

$4.99

$

In Stock, only 4 left!

0

58

Husqvarna 530026413

RING-PISTON (22.2CC)

$

$

Not available

59

Husqvarna 530015162

WRIST PIN RET.

$3.49

$

Usually ships in 3-10 days

0

60

Husqvarna 530014005

Piston Rod

$

$

Not available

61

Husqvarna 530069274

Piston Kit

Note: (Incl. 58, 59 & Pin)

$

$

Not available

62

Husqvarna 530015775

SCREW 8-16 X 9/16 (PLAS

$3.99

$

In Stock, only 2 left!

0

63

Husqvarna 530014016

Crankcase Ass'y.

$

$

Not available

64

Husqvarna 530015918

SCREW

$

$

Not available

65

Husqvarna 530029603

ISOLATOR

$

$

Not available

66

Husqvarna 530029613

SPRING

$

$

Not available

67

Husqvarna 530029601

INSULATOR

$

$

Not available

68

Husqvarna 530015239

SCREW-1/4-20 X 13/16

$

$

Not available

69

Husqvarna 530015872

SCREW
(Superseded to 530015814)

$3.49

$

In Stock, Qty 5

0

70

Husqvarna 530029433

BAFFLE

$

$

Not available

71

Husqvarna 530039139

FLYWHEEL

$

$

Not available

72

Husqvarna 530015149

WASHER

$3.99

$

Usually ships in 3-10 days

0

73

Husqvarna 530626605

NUT

$6.99

$

Usually ships in 3-10 days

0

74

Husqvarna 530029432

BLOWER HOUSING (UPPER)

$

$

Not available

75

Husqvarna 530094865

IMPELLER

$

$

Not available

76

Husqvarna 530014265

Blower Housing (Lower)

$

$

Not available

77

Husqvarna 530069271

KIT-BLOWER TUBE
(Superseded to 530069684)

$

$

Not available

78

Husqvarna 530029575

ROLLER

$7.99

$

Usually ships in 3-10 days

0

79

Husqvarna 530027523

RETAINER

$4.99

$

In Stock, only 1 left!

0

80

Husqvarna 530094867

PULLEY HOUSING

$

$

Not available

81

Husqvarna 530015851

PIN ROLLER

$

$

Not available

82

Husqvarna 530015772

SCREW-10-24 X 1" (TAP.)

$3.99

$

Usually ships in 3-10 days

0

83

Husqvarna 530029448

PINION

$

$

Not available

84

Husqvarna 530029449

DRAG ELEMENT
(Superseded to 530037716)

$

$

Not available

85

Husqvarna 530015882

SCREW

$

$

Not available

86

Husqvarna 530069306

KIT-STARTER PULLEY

$

$

Not available

87

Husqvarna 530029395

SPRING-STARTER
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

88

Husqvarna 530027569

HANDLE-STARTER

$4.99

$

Usually ships in 3-10 days

0

89

Husqvarna 530069232

KIT-ROPE

$7.49

$

Usually ships in 3-10 days

0

90

Husqvarna 530015886

SCREW-10-14 X 13/16 (PL

$3.49

$

In Stock, Qty 11

0

91

Husqvarna 530069302

GASKET KIT

$

$

Not available

92

Husqvarna 530069348

SPARK ARRESTOR KIT

$

$

Not available

93

Husqvarna 530035014

DIAPHRAGM
(Superseded to 503896701)

$56.99

$

In Stock, Qty 9

0

94

Husqvarna 530035151

GASKET-METER DIAP

$4.99

$

In Stock, Qty 7

0

95

Husqvarna 530035212

Mixture Needle

$

$

Not available

96

Husqvarna 530035214

SPRING-MIXTURE NEEDLE
(Superseded to 530035293)

$

$

Not available

97

Husqvarna 530035166

DIAP FUEL PUMP
(Superseded to 504130807)

$37.99

$

In Stock, Qty 18

0

98

Husqvarna 530035164

GASKET-FUEL PUMP
(Superseded to 504130906)

$13.99

$

In Stock, only 2 left!

0

99

Husqvarna 530035203

SCREW-IDLE SPEED

$

$

Not available

100

Husqvarna 530035208

SPRING-IDLE SPEED
(Superseded to 530035121)

$

$

Not available

101

Husqvarna 530035028

PIN
(Superseded to 505520125)

$7.49

$

Usually ships in 3-10 days

0

102

Husqvarna 530035031

LEVER
(Superseded to 505520127)

$

$

Not available

103

Husqvarna 530035188

SPRING-METERING LEVER

$4.99

$

In Stock, Qty 9

0

104

Husqvarna 530035106

INLET NEEDLEVALVE
(Superseded to 503117001)

$35.99

$

In Stock, Qty 6

0

105

Husqvarna 530035178

SCREEN-DUTCH TWILL INLE

$

$

Not available

106

Husqvarna 530035260

REPAIR KIT

Note: Includes items 93, 94, 97, 98, 101-105, 108 & 110.

$

$

Not available

107

Husqvarna 530035219

INQUGASKET DIAPHRAGM
(Superseded to 530069844)

Note: Includes items 93, 94, 97, 98, 108 & 110.

$17.99

$

In Stock, Qty 11

0

108

Husqvarna 530035211

GASKET

$

$

Not available

109

Husqvarna 530035217

Mixture Needle Washer

$

$

Not available

110

Husqvarna 530035218

"O" Ring Mixture

$

$

Not available

111

Husqvarna 530035016

SCREW

$7.99

$

Usually ships in 3-10 days

0

Husqvarna 530067900

Operator Manual

Note: Not Shown

$

$

Not available

Husqvarna 530061355

Carton

Note: Not Shown

$

$

Currently unavailable

Husqvarna 530029714

Instruction Decal (ENG)

Note: Not Shown

$

$

Not available

Husqvarna 530029715

Instruction Decal (FR)

Note: Not Shown

$

$

Not available
