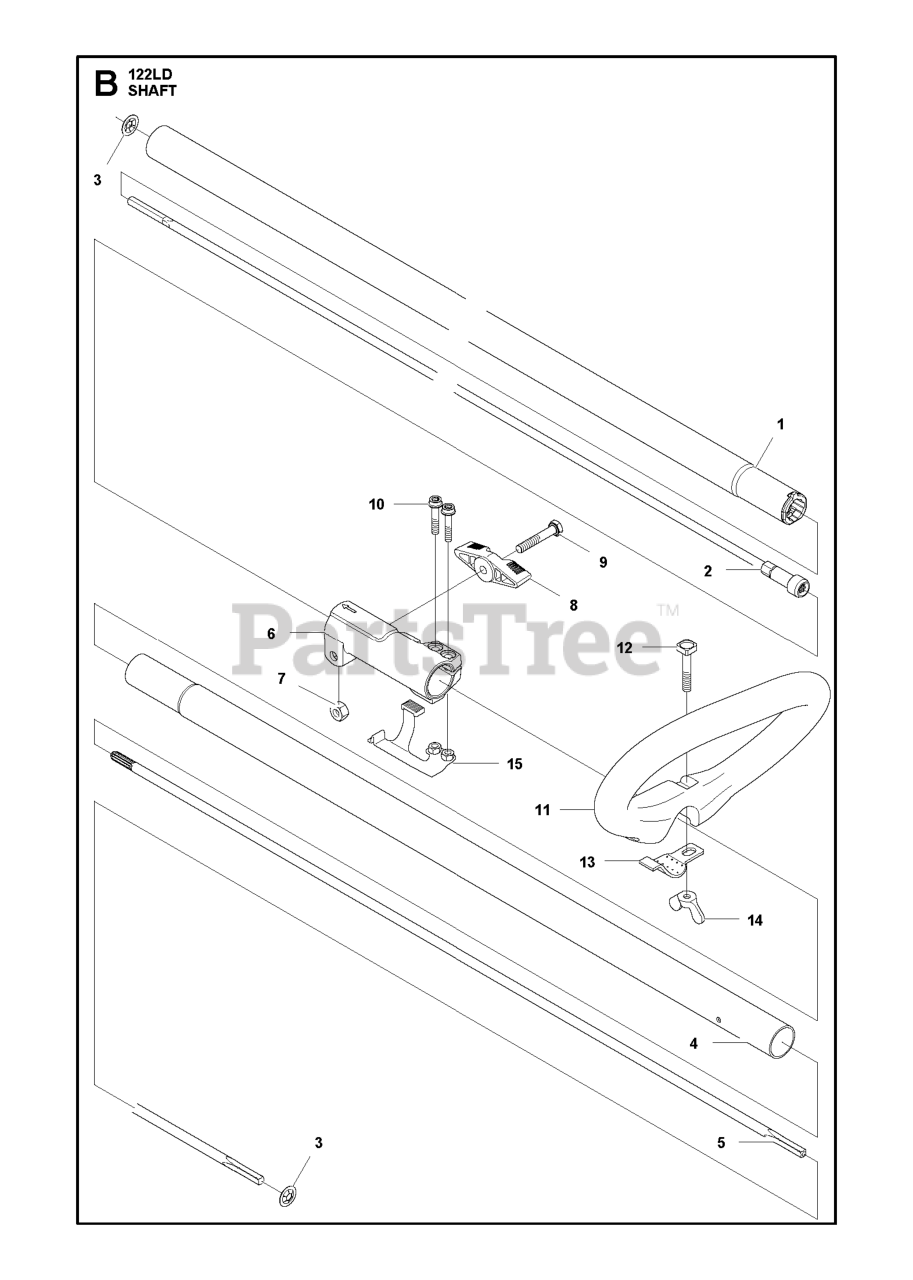

122 LD - Husqvarna String Trimmer SHAFT Parts Diagram

String Trimmer

SHAFT Parts Diagram

  • Title

6

Husqvarna 576282601

CLAMPING SLEEVE ASSY

$24.99

$

Usually ships in 3-10 days

0

7

Husqvarna 731231601

NUT

$6.49

$

In Stock, Qty 5

0

13

Husqvarna 574290401

CLAMP

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 577380701

TUBE

$24.99

$

Usually ships in 3-10 days

0

14

Husqvarna 577244901

WING NUT

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 577245001

BOLT

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574407501

DRIVE SHAFT

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 725237651

BOLT FLANGE

$7.49

$

In Stock, only 1 left!

0

11

Husqvarna 574290201

HANDLE

$9.99

$

Usually ships in 3-10 days

0

15

Husqvarna 576282301

LOCKING PLATE ASSY CLAMPING SL

$10.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574367901

LOCK WASHER

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 577380601

TUBE

$27.99

$

Usually ships in 3-10 days

0

9

Husqvarna 725237651

BOLT FLANGE

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 502203801

HANDLE

$10.99

$

In Stock, only 1 left!

0

5

Husqvarna 577885601

DRIVE SHAFT ASSY

$11.99

$

Usually ships in 3-10 days

0
