1220 (137-230-100) - Cub Cadet Lawn Tractor (SN: 126001 - 147087) Starter Motor Parts Diagram

Lawn Tractor

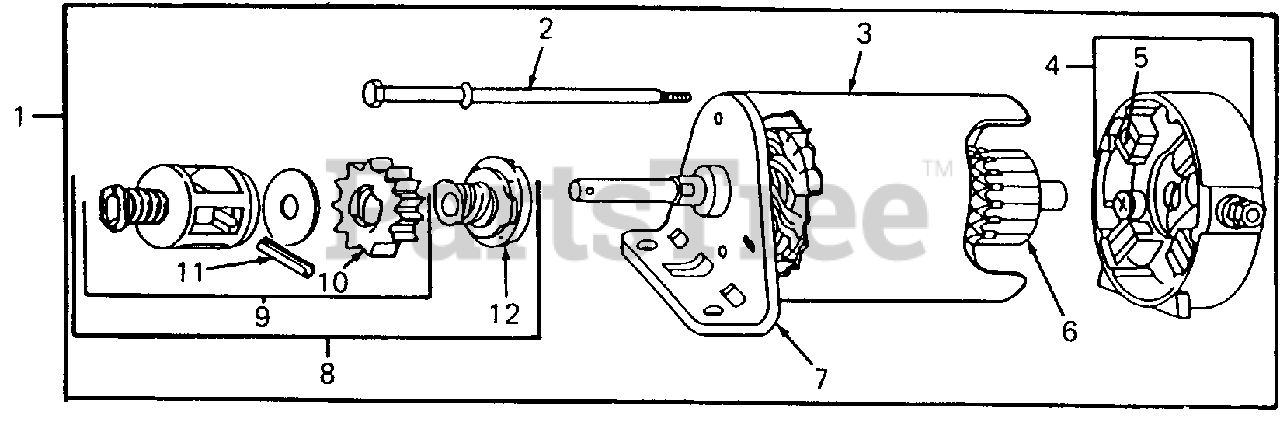

Starter Motor Parts Diagram

  • Title

1

Cub Cadet BS-490420

Motor & Drive Assy
(Superseded to BS-795121)

$143.99

$

In Stock, Qty 18

0

2

Cub Cadet BS-94004

Bolt

$

$

Not available

3

Cub Cadet BS-394544

Housing Assy

$

$

Not available

4

Cub Cadet BS-395537

End Cap Assy

Note: (Includes Ref No. 5)

$54.99

$

In Stock, only 1 left!

0

5

Cub Cadet BS-395538

Brush Assy

$24.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-391160

Armature Assy

$

$

Currently unavailable

7

Cub Cadet BS-394857

End Cap Assy

$56.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-490421

Drive Assy
(Superseded to BS-696540)

Note: (Includes Ref No. 9 thru 12)

$29.99

$

In Stock, only 2 left!

0

9

Cub Cadet BS-490467

Retainer Kit
(Superseded to BS-696540)

Note: (Includes Ref No. 10 & 11)

$29.99

$

In Stock, only 2 left!

0

10

Cub Cadet BS-280104

Gear
(Superseded to BS-695708)

$6.99

$

In Stock, Qty 20+

0

11

Cub Cadet BS-94288

Pin, Roll
(Superseded to BS-691641)

$4.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-398003

Clutch Assy
(Superseded to BS-692024)

$21.99

$

In Stock, only 1 left!

0
