12208 - Troy-Bilt Tuffy Rear-Tine Tiller Tine Hood, Depth Regulator And Drag Bar Parts Diagram

Tuffy Rear-Tine Tiller

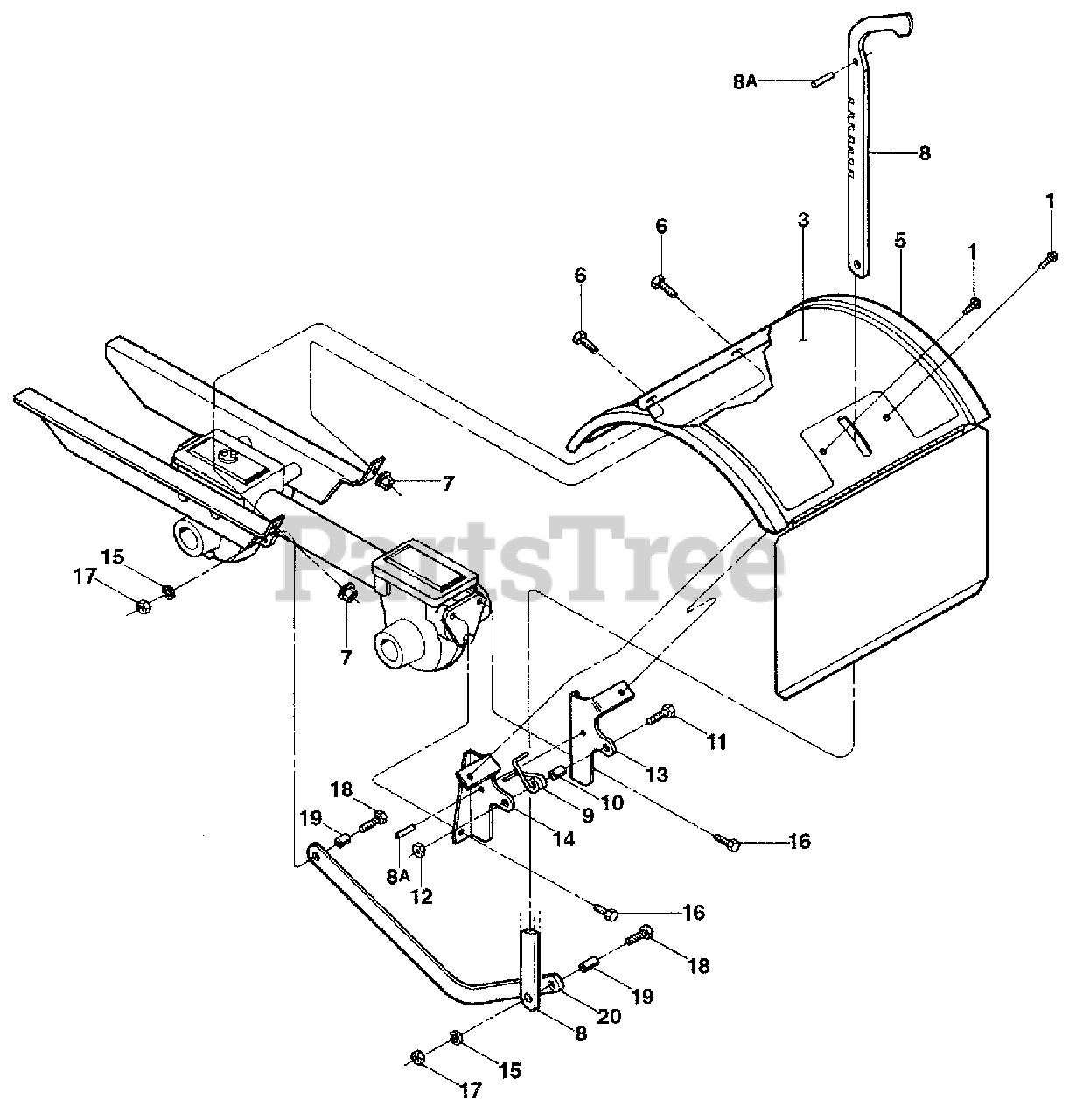

Tine Hood, Depth Regulator And Drag Bar Parts Diagram

  • Title

1

Troy-Bilt 9552

Hex Hd. Flange Screw, Self-Tapping, 1/4-20 x 1/2
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 1917536

Decal, Hood
(Superseded to 777S30649)

$28.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1917594

Tine Hood
(Superseded to 686-04077B-0638)

Note: (Incl. tine flap and Ref. 3); For Models 12208, 12209, 12210

$207.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1904572

Tine Hood
(Superseded to 686-04076A-0638)

Note: (Incl. tine flap and Ref. 3); For Model 12217

$94.99

$

In Stock, Qty 7

0

6

MTD 1100088

Hex Hd. Screw, 5/16-18 x 1/2

$

$

Not available

7

Troy-Bilt 1186391

Hex Flange Lock Nut, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 19

0

8

Troy-Bilt 1916118001

Depth Regulator Lever
(Superseded to 786-04292A-0638)

$70.99

$

Usually ships in 3-6 days

0

8A

Troy-Bilt 9308

Spirol Pin
(Superseded to 715-0108)

$5.49

$

In Stock, Qty 11

0

9

Troy-Bilt 9384

Spring, Depth Regulator
(Superseded to 732-04320)

$4.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 9534

Spacer
(Superseded to GW-9534)

$4.49

$

In Stock, only 4 left!

0

11

Troy-Bilt 1100069

Hex Hd. Screw, 1/4-20 x 1
(Superseded to 710-0597)

$4.49

$

In Stock, Qty 11

0

12

Troy-Bilt 9811

Hex Lock Nut, 1/4-20

$

$

Currently unavailable

13

Troy-Bilt 1916119001

Hood Bracket, Right Hand
(Superseded to 786-04291-0638)

$

$

Not available

14

Troy-Bilt 1916120001

Hood Bracket, Left Hand
(Superseded to 786-04290-0638)

$31.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 11000242

Lock washer, 5/16

$

$

Currently unavailable

16

Troy-Bilt 1186331

Hex Hd. Flange Screw, 5/16-18 x 1
(Superseded to 710-04048)

$5.49

$

In Stock, Qty 7

0

17

Troy-Bilt 1186230

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

18

MTD 1100808

Hex Hd. Screw, 5/16-18 x 1-1/4

$

$

Not available

19

Troy-Bilt 55088

Bushing
(Superseded to GW-55088)

$

$

Not available

20

Troy-Bilt 1916121001

Drag Bar
(Superseded to 786-04104-0638)

$38.99

$

In Stock, Qty 8

0
