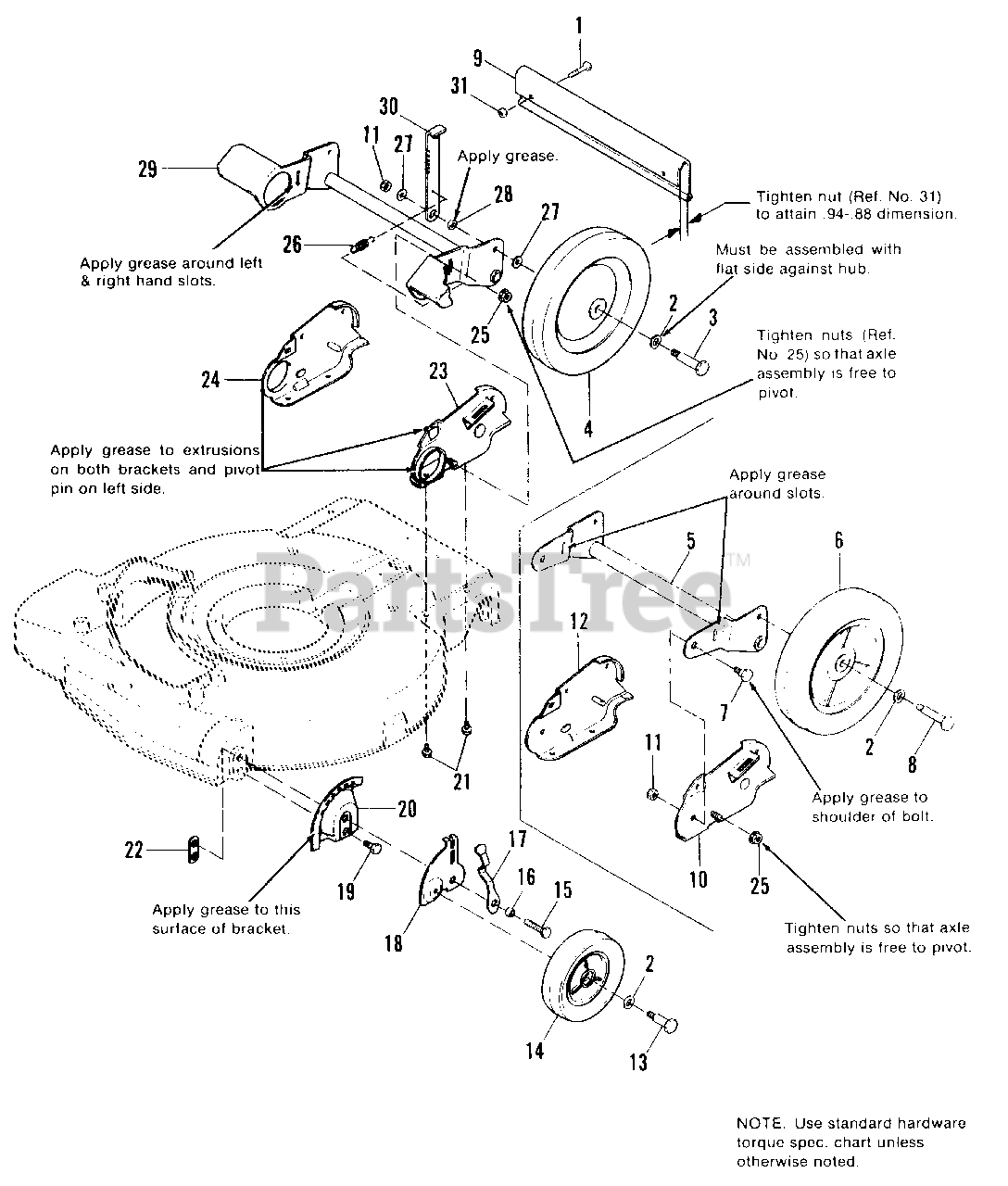

1221 (1690511) - Simplicity 21" 4-in-1 Walk-Behind Mower Wheel & Height Adjusters Group Parts Diagram

21" 4-in-1 Walk-Behind Mower

Wheel & Height Adjusters Group Parts Diagram

  • Title

1

Simplicity 933738

CAPSCREW, Hex Hd., #10-24 x 1-1/2

$

$

Not available

2

Simplicity 2170157SM

WASHER, Special

Note: Used only on Self-Propelled Mowers, Mfg. no. 1690512 & 1690541

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 2108765SM

BOLT, Wheel

Note: Used only on Self-Propelled Mowers, Mfg. no. 1690512 & 1690541

$6.49

$

In Stock, Qty 20+

0

4

Simplicity 108701

WHEEL, 10"

Note: Used only on Self-Propelled Mowers, Mfg. no. 1690512 & 1690541

$

$

Not available

5

Simplicity 1666951

PLATE & TUBE ASSY.

Note: Used only on Push Mowers, Mfg. No. 1690511 & 1690540

$

$

Not available

6

Simplicity 1666893

WHEEL, 10"

Note: Used only on Push Mowers, Mfg. No. 1690511 & 1690540

$

$

Not available

7

Simplicity 108766

BOLT, Shoulder

Note: Used only on Push Mowers, Mfg. No. 1690511 & 1690540

$

$

Not available

8

Simplicity 2170135SM

BOLT, Wheel

Note: Used only on Push Mowers, Mfg. No. 1690511 & 1690540

$9.49

$

Usually ships in 2-12 days

0

9

Simplicity 1666187

SHIELD, Trailing

$

$

Not available

10

Simplicity 1666389

BRACKET ASSY., L.H.

Note: Used only on Push Mowers, Mfg. No. 1690511 & 1690540

$

$

Not available

11

Simplicity 1930645SM

LOCKNUT, Hex, Full, 3/8-16
(Superseded to 703893)

Note: Qty. 2 used on Mfg. No. 1690512 & 1690541

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 1666390

BRACKET ASSY., R.H.

Note: Used only on Push Mowers, Mfg. No. 1690511 & 1690540

$

$

Not available

13

Simplicity 108764

BOLT, Front Wheel

$

$

Not available

14

Simplicity 1666606

WHEEL, 6" Front

$

$

Not available

15

Simplicity 2108418

SCREW, Special, 3/8-16 x 1-3/4

$

$

Not available

16

Simplicity 1666804SM

SPACER

$8.99

$

Usually ships in 2-12 days

0

17

Simplicity 108641

SPRING, Height Adjustment

$

$

Not available

18

Simplicity 108639

ADJUSTER, Height Front

$

$

Not available

19

Simplicity 2821965

CAPSCREW, Hex, 3/8-16 x 3/4

$

$

Not available

20

Simplicity 108640

PLATE, Adjuster

$

$

Not available

21

Simplicity 2829000

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

22

Simplicity 108697

NUT, Pilot, Twin

$

$

Not available

23

Simplicity 1663587

BRACKET ASSY., L.H.

Note: Used only on Self-Propelled Mowers, Mfg. no. 1690512 & 1690541

$

$

Not available

24

Simplicity 1663586

BRACKET ASSY., R.H.

Note: Used only on Self-Propelled Mowers, Mfg. no. 1690512 & 1690541

$

$

Not available

25

Simplicity 2829001

LOCKNUT, Hex, Flange, 5/16-18

Note: Used only on Self-Propelled Mowers, Mfg. no. 1690512 & 1690541

$

$

Not available

26

Simplicity 170264

SPRING

Note: Used only on Self-Propelled Mowers, Mfg. no. 1690512 & 1690541

$

$

Not available

27

Simplicity 2817642

WASHER, Plain, 5/16

Note: Used only on Self-Propelled Mowers, Mfg. no. 1690512 & 1690541

$

$

Not available

28

Simplicity 105184

SPACER

Note: Used only on Self-Propelled Mowers, Mfg. no. 1690512 & 1690541

$

$

Not available

29

Simplicity 1666948

PLATE & TUBE ASSY.

Note: Used only on Self-Propelled Mowers, Mfg. no. 1690512 & 1690541

$

$

Not available

30

Simplicity 1666608

ADJUSTER, Height, Rear

Note: Used only on Self-Propelled Mowers, Mfg. no. 1690512 & 1690541

$

$

Not available

31

Simplicity 2833896

LOCKNUT, Hex, Nylon, #10-24

$

$

Not available
