12212 - Troy-Bilt Pony Rear-Tine Tiller (SN: 122121100101 - 122121699999) Bumper Attachment 12593 Parts Diagram

Pony Rear-Tine Tiller

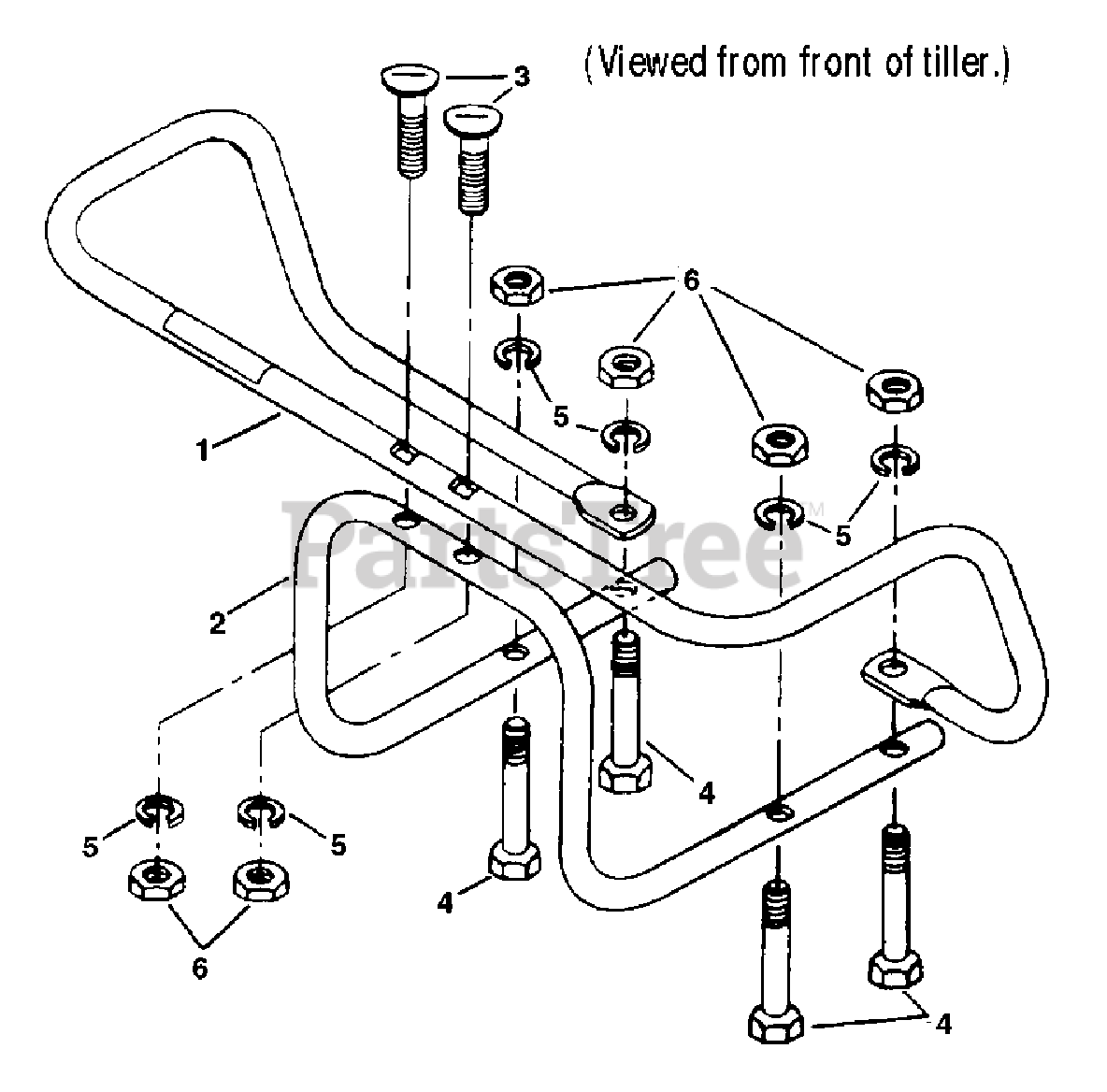

Bumper Attachment 12593 Parts Diagram

  • Title

1

Troy-Bilt 1904757001

Bumper, Top Section
(Superseded to 749-04193-0637)

$50.99

$

In Stock, Qty 7

0

2

Troy-Bilt 1904758001

Bumper, Bottom Section
(Superseded to 749-04193-0637)

$50.99

$

In Stock, Qty 7

0

3

Troy-Bilt 1731025

Curved Hd. Screw, 5/16-18 x 2 (special)
(Superseded to 710-1174)

Note: also see #1915811 Hardware Kit

$6.99

$

In Stock, Qty 20+

0

4

MTD 1111608

Hex Hd. Screw, 5/16-18 x 2-1/2

Note: (not avail, separately-order #1915811 Hardware Kit)

$

$

Not available

5

Troy-Bilt 1100242

Lockwasher, 5/16
(Superseded to 936-0119)

Note: (not avail. separately - order #1915811 Hardware Kit)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 1186230

Hex Nut, 5/16-18
(Superseded to 912-3010)

Note: (not avail. separately - order #1915811 Hardware Kit)

$4.49

$

In Stock, Qty 20+

0

MTD 1915811

Hardware Kit

Note: Includes: two Ref. 21; four Ref. 22; six Ref. 23 and six Ref. 24

$

$

Not available
