12212 - Troy-Bilt Pony Rear-Tine Tiller (SN: 122121100101 - 122121699999) Row Marker Attachment 12589 Parts Diagram

Pony Rear-Tine Tiller

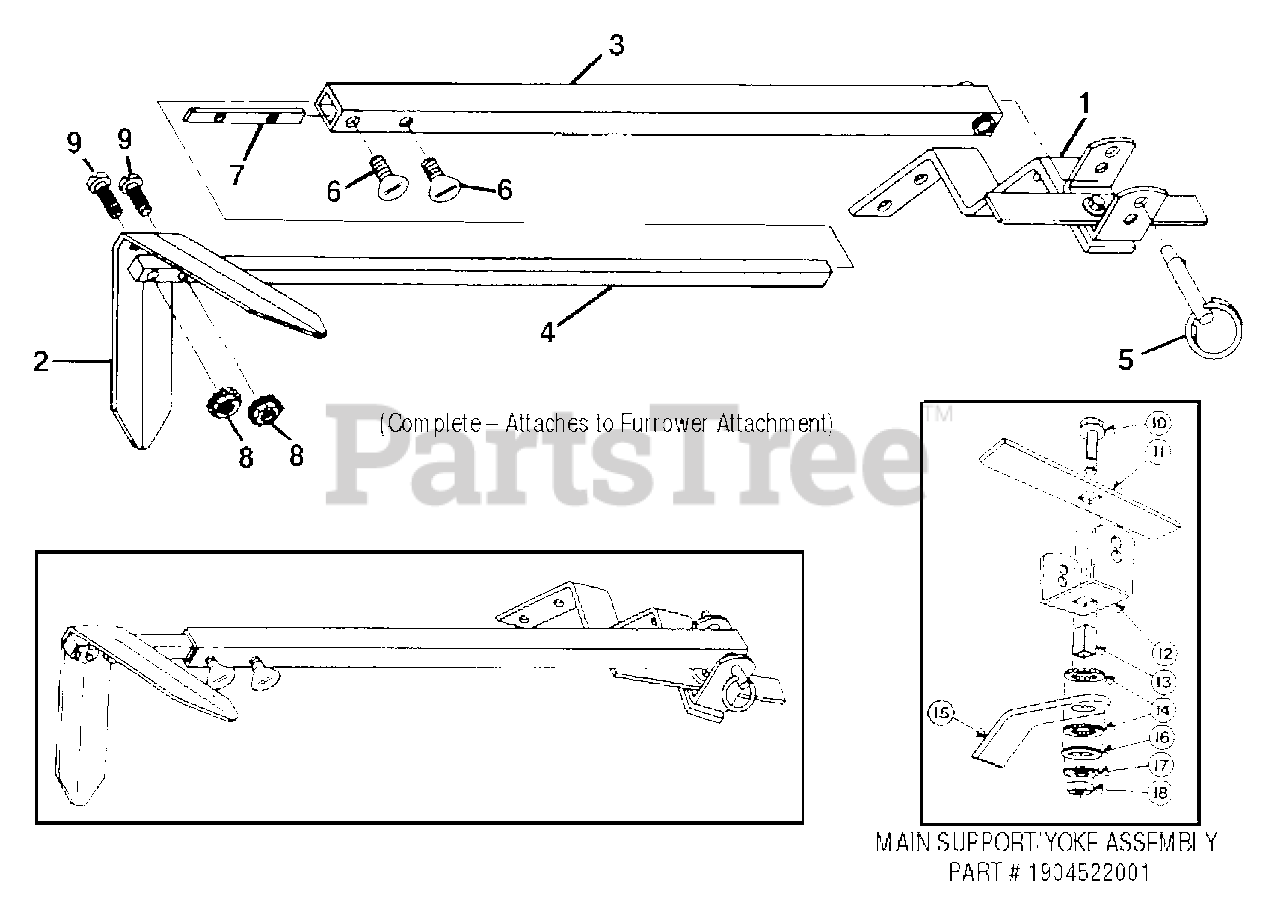

Row Marker Attachment 12589 Parts Diagram

  • Title

1

Troy-Bilt 1904522001

Complete Main Support & Yoke Assy.

Note: (Incl. Refs. 10, 11, 12, 13, 14, 15, 16, 17 & 18)

$

$

Currently unavailable

2

MTD 1594

Marker Blade

$

$

Not available

3

MTD 1904524001

Marker Arm

$

$

Not available

4

MTD 1904523001

Marker Extension Arm

Note: (Incl. stop pin)

$

$

Not available

5

Troy-Bilt 9347

Hitch Pin
(Superseded to GW-9347)

Note: (Incl. in #1837 Hardware Package)

$13.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 9786

Thumbscrew, 1/4-20 x 1/2

Note: (not avail separately - see #1837 Hardware Package)

$

$

Currently unavailable

7

MTD 1596

Nut Bar

Note: (Incl. in #1837 Hardware Package)

$

$

Not available

8

MTD 9828

Hex Nut, #10-24 w/attached start washers

Note: (not avail. separately - see #1837 Hardware Package)

$

$

Not available

9

Troy-Bilt 1100135

Round Hd. Screw, #10-24 x 1

Note: (not avail separately - see #1837 Hardware Package)

$

$

Not available

MTD 1837

Hardware Package

Note: Includes: one Hitch Pin (Ref. 5), two Thumbscrews (Ref. 6), one Nut Bar (Ref. 7), two Hex Nuts (Ref. 8) & two Screws (Ref. 9)

$

$

Not available

Troy-Bilt 12582

Row Marker Attachment & Pony Hiller/Furrower Attachment Complete

Note: Includes: #12579 Pony Hiller/Furrower and #12589 Row Marker

$

$

Currently unavailable

Troy-Bilt 12589

Row Marker Attachment-Complete, Attaches to #12579 Furrower Attachment.

Note: Includes #1904522001 Main Support & Yoke Assy

$

$

Currently unavailable

10

Troy-Bilt 1186349

Hex Flange Screw, 3/8-16 x 1-1/2'

$3.49

$

Usually ships in 3-6 days

0

11

MTD 1593

Stop Bar

$

$

Not available

12

MTD 1592

Yoke.

$

$

Not available

13

MTD 1591

Tube Key (square)

$

$

Not available

14

Troy-Bilt 1590

Friction Washer
(Superseded to GW-1590)

$7.49

$

Usually ships in 3-6 days

0

15

MTD 1588

Main Support

$

$

Not available

16

MTD 1589

Washer (square hole)

$

$

Not available

17

MTD 9925

Disc Spring Washer

$

$

Not available

18

Troy-Bilt 1186231

Hex Nut, 3/8-16
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0
