12213 - Troy-Bilt Mini-Tiller Handlebars, Clutch Cable And Handlebar Mounting Hardware Parts Diagram

Mini-Tiller

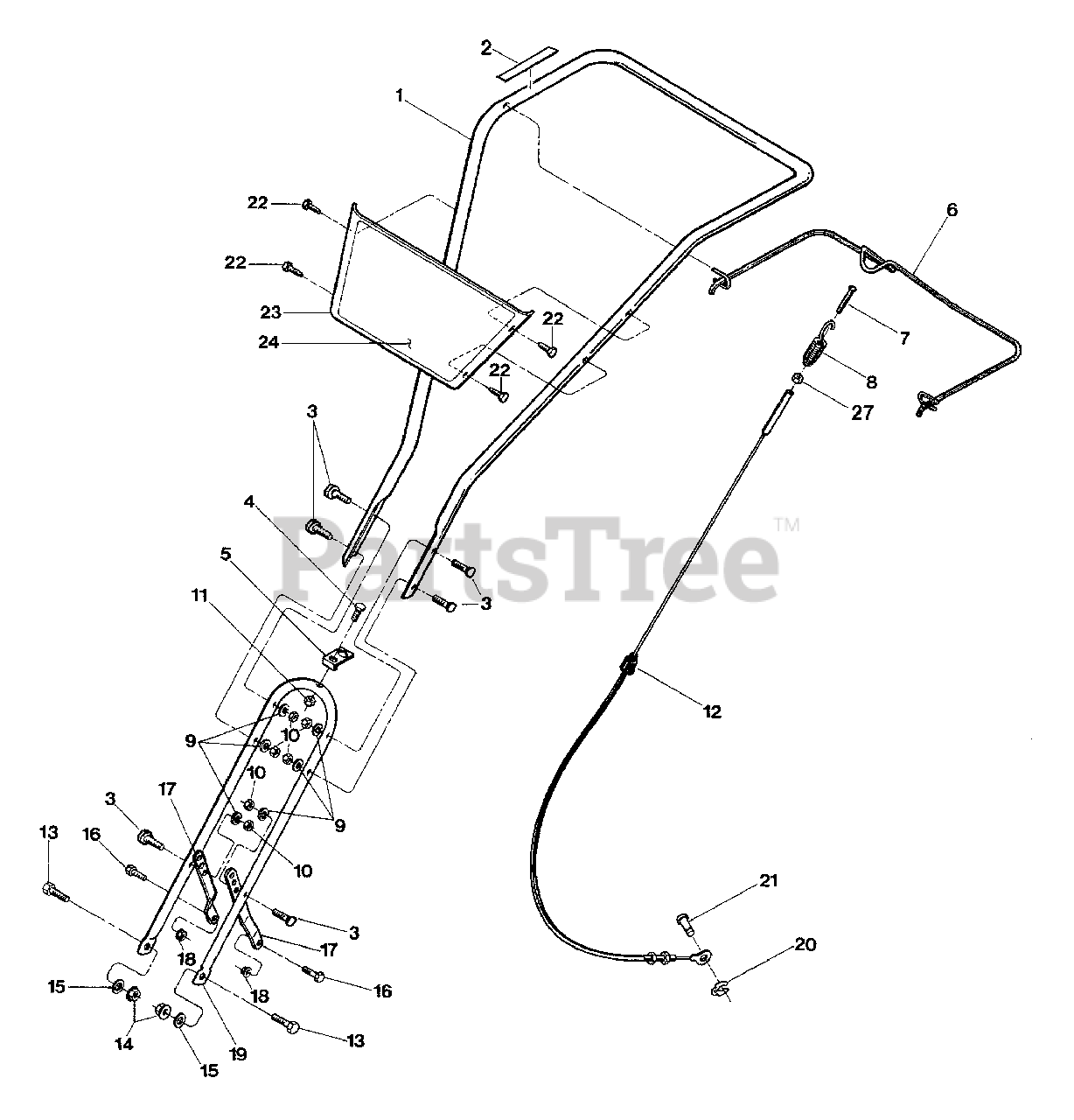

Handlebars, Clutch Cable And Handlebar Mounting Hardware Parts Diagram

  • Title

1

MTD 1916909

Upper Handlebar

Note: (Incl. Ref. 2)

$

$

Not available

2

MTD 1916928

Decal, Forward Clutch Bail

$

$

Not available

3

Troy-Bilt 1100799

Hex Hd. Screw, 5/16-18 x 1-1/2
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 1100806

Hex Screw, 1/4-20 x 1-1/4
(Superseded to 710-0106)

$4.49

$

In Stock, Qty 12

0

5

Troy-Bilt 55044

Bracket, Forward Clutch Cable
(Superseded to GW-55044)

$21.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1916106001

Bail, Forward Clutch

$

$

Not available

7

Troy-Bilt 9855

Screw, #10-24 x 2
(Superseded to 710-04163)

$

$

Not available

8

Troy-Bilt 1916712

Spring, Forward Clutch
(Superseded to 732-04185)

$7.99

$

In Stock, Qty 6

0

9

Troy-Bilt 1100242

Lockwasher, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1186230

Hex Locknut, 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 9811

Hex Locknut, 1/4-20

$

$

Currently unavailable

12

Troy-Bilt 55048

Cable Assy, Forward Clutch
(Superseded to GW-55048P)

$36.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 1100068

Hex Screw, 3/8-16 x 3/4
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 8

0

14

Troy-Bilt 9837

Hex Locknut, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 7

0

15

Troy-Bilt 1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 15

0

16

Troy-Bilt 1100044

Hex Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 1916107001

Handlebar Support

$

$

Not available

18

Troy-Bilt 1110107

Hex Locknut, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

19

Troy-Bilt 1916108001

Lower Handlebar
(Superseded to 753-06459A)

$95.99

$

In Stock, Qty 8

0

20

MTD 9386

Klip Ring

$

$

Not available

21

MTD 9856

Clevis Pin

$

$

Not available

22

Troy-Bilt 9552

Hex Screw, 1/4-20 x 1/2, Self-Tap
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

23

MTD 1901273010

Panel

$

$

Not available

24

MTD 1917559

Decal, Model Name/Logo

$

$

Not available

27

Troy-Bilt 1186227

Hex Nut, #10-24
(Superseded to 912-0121)

$4.99

$

In Stock, Qty 20+

0
