122132-0110-B8 - Briggs & Stratton Horizontal Engine Carburetor, Fuel Supply Parts Diagram

Horizontal Engine

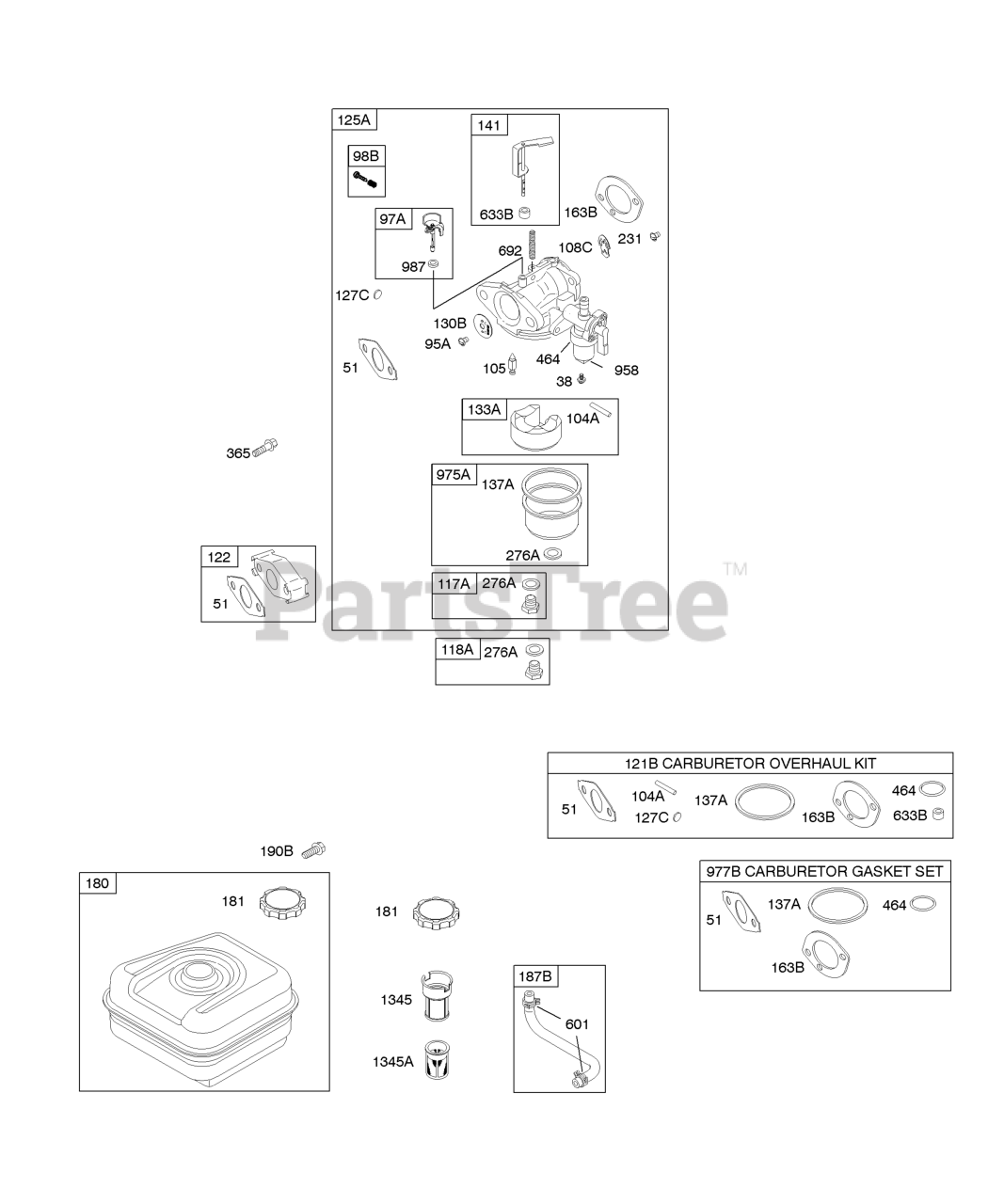

Carburetor, Fuel Supply Parts Diagram

  • Title

38

Briggs & Stratton 698557

SCREW

Note: (Shut Off Valve)

$3.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692555

Gasket-Intake

$3.99

$

In Stock, Qty 20+

0

95A

Briggs & Stratton 698544

Screw

Note: (Throttle Valve)

$3.49

$

Usually ships in 2-12 days

0

97A

Briggs & Stratton 698542

Shaft-Throttle

$14.99

$

Usually ships in 2-12 days

0

98B

Briggs & Stratton 698551

Kit-Idle Speed

Note: (Carburetor)

$7.99

$

Usually ships in 2-12 days

0

104A

Briggs & Stratton 698536

Pin-Float Hinge

$5.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 698537

VALVE, Float Needle

$15.99

$

In Stock, only 1 left!

0

108C

Briggs & Stratton 698546

Valve-Choke

$4.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 698670

Jet-Main

Note: (Standard)

$12.99

$

Usually ships in 2-12 days

0

118A

Briggs & Stratton 698552

Jet-Main

Note: (High Altitude)

$16.99

$

Usually ships in 2-12 days

0

121B

Briggs & Stratton 698567

Kit-Carb Overhaul
(Superseded to 797634)

$57.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 795643

Spacer-Carburetor

$13.99

$

In Stock, Qty 12

0

125A

Briggs & Stratton 698535

Carburetor

$94.99

$

Usually ships in 2-12 days

0

127C

Briggs & Stratton 690727

PLUG, Welch

$4.49

$

In Stock, only 1 left!

0

130B

Briggs & Stratton 698543

Valve-Throttle

$7.99

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 698539

Float-Carburetor

$16.99

$

Usually ships in 2-12 days

0

137A

Briggs & Stratton 698538

Gasket-Float Bowl

$6.49

$

In Stock, only 1 left!

0

141

Briggs & Stratton 698545

Kit-Choke Shaft

$28.99

$

Usually ships in 2-12 days

0

163B

Briggs & Stratton 696024

Gasket-Air Cleaner

Note: (Flat Panel Air Cleaner)

$5.99

$

In Stock, Qty 6

0

180

Briggs & Stratton 794640

Tank-Fuel

Note: (Metal) Used After Code Date 07050800 Used Before Code Date 08051200

$119.99

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 791598

Tank-Fuel

Note: (Metal) Used Before Code Date 07050900

$104.99

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 795832

Tank-Fuel

Note: (Metal) Used After Code Date 08051100

$119.99

$

Usually ships in 2-12 days

0

181

Briggs & Stratton 794641

CAP, Fuel Tank

Note: (Metal) Used After Code Date 07050800

$20.99

$

In Stock, only 4 left!

0

181

Briggs & Stratton 699840

Cap-Fuel Tank

Note: (Metal) Used Before Code Date 07050900

$12.99

$

In Stock, only 1 left!

0

187B

Briggs & Stratton 791874

Line-Fuel

Note: (Molded)

$16.99

$

In Stock, Qty 8

0

190B

Briggs & Stratton 795047

Screw

Note: (Fuel Tank) Used After Code Date 08051100

$3.99

$

Usually ships in 2-12 days

0

190B

Briggs & Stratton 699839

Screw

Note: (Fuel Tank) Used Before Code Date 08051200

$3.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

In Stock, only 1 left!

0

276A

Briggs & Stratton 698540

Washer-Sealing

$5.99

$

Usually ships in 2-12 days

0

365

Briggs & Stratton 699484

Screw

Note: (Carburetor)

$3.99

$

In Stock, Qty 15

0

464

Briggs & Stratton 698550

SEAL, O-Ring

Note: (Fuel Shut-off Valve)

$7.49

$

In Stock, only 1 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

633B

Briggs & Stratton 690998

SEAL, Choke/Throttle Shaft

$7.99

$

In Stock, only 1 left!

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

Note: (Choke)

$5.49

$

In Stock, only 1 left!

0

958

Briggs & Stratton 698549

Valve-Fuel Shut Off

Note: (Plastic)

$

$

Not available

975A

Briggs & Stratton 698541

Bowl-Float

$45.99

$

Usually ships in 2-12 days

0

977B

Briggs & Stratton 698568

Gasket Set-Carburetor
(Superseded to 797635)

$37.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 698556

Seal-Throttle Shaft

$4.99

$

Usually ships in 2-12 days

0

1345

Briggs & Stratton 699887

Filter-Filler Neck

$3.99

$

Usually ships in 2-12 days

0

1345A

Briggs & Stratton 792917

FILTER, Filler Neck

$5.49

$

In Stock, only 1 left!

0
