12214 - Troy-Bilt Bronco Rear-Tine Tiller Tine Hood, Depth Regulator Lever And Drag Stake Parts Diagram

Bronco Rear-Tine Tiller

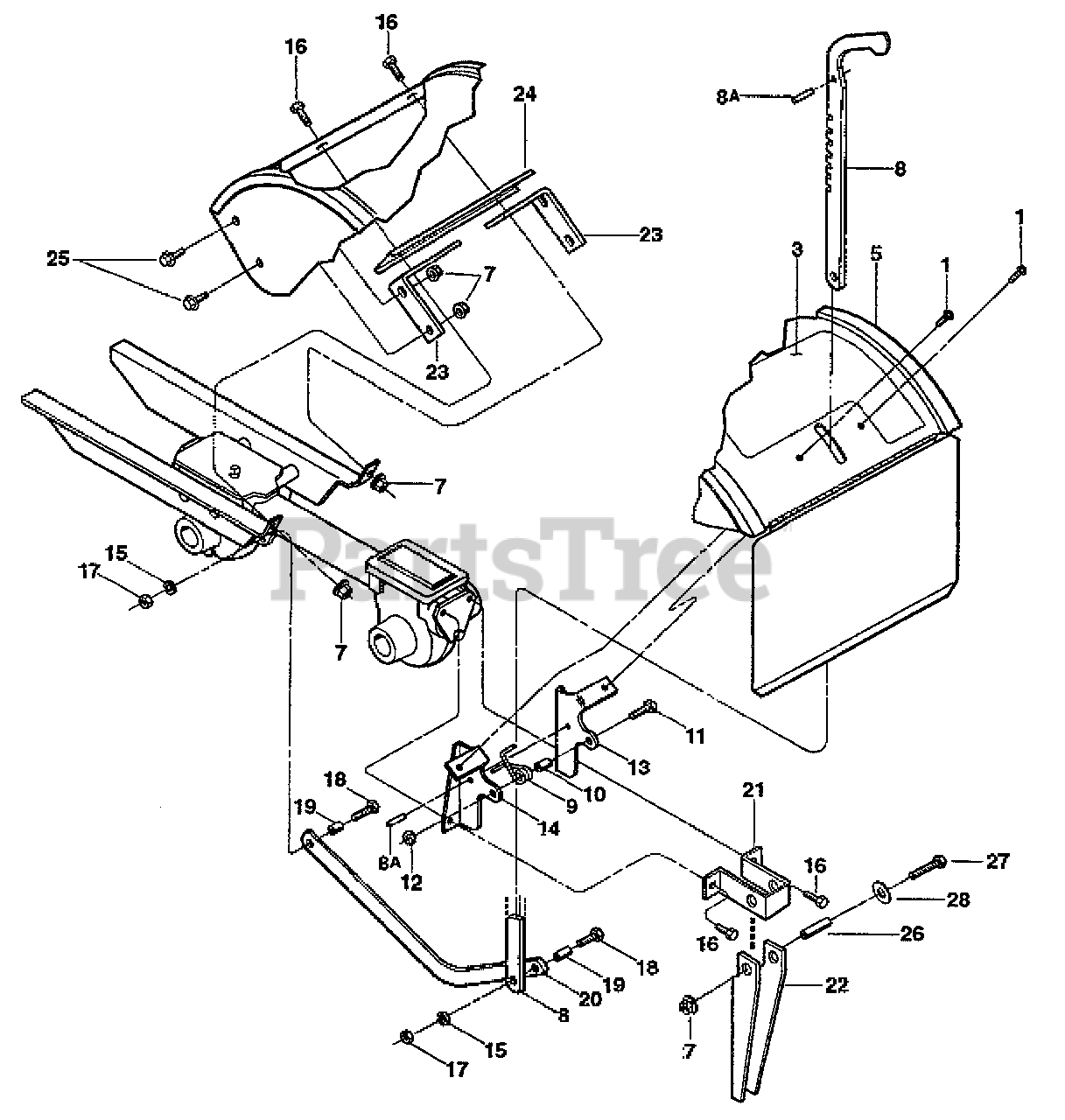

Tine Hood, Depth Regulator Lever And Drag Stake Parts Diagram

  • Title

1

Troy-Bilt 9552

Flange Screw, Self-Tapping, 1/4-20 x 1/2
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 1917536

Decal, Hood
(Superseded to 777S30649)

$28.99

$

Usually ships in 3-6 days

0

5

MTD 1917120

Tine Hood

Note: (Incl. tine flap and Ref. 3)

$

$

Not available

7

Troy-Bilt 1186391

Flange Lock Nut, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 19

0

8

Troy-Bilt 1916118001

Depth Regulator Lever
(Superseded to 786-04292A-0638)

$70.99

$

Usually ships in 3-6 days

0

8A

Troy-Bilt 9308

Spiral Pin
(Superseded to 715-0108)

$5.49

$

In Stock, Qty 9

0

9

Troy-Bilt 9384

Spring, Depth Regulator
(Superseded to 732-04320)

$4.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 9534

Spacer
(Superseded to GW-9534)

$4.49

$

In Stock, only 4 left!

0

11

Troy-Bilt 1100069

Hex Hd. Screw, 1/4-20 x 1
(Superseded to 710-0597)

$4.49

$

In Stock, Qty 11

0

12

Troy-Bilt 9811

Hex Lock Nut, 1/4-20

$

$

Currently unavailable

13

Troy-Bilt 1916119001

Hood Bracket, Right Hand
(Superseded to 786-04291-0638)

$

$

Not available

14

Troy-Bilt 1916120001

Hood Bracket, Left Hand
(Superseded to 786-04290-0638)

$31.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 1100242

Lockwasher, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 1186331

Flange Hd. Screw, 5/16-18 x 1
(Superseded to 710-04048)

$5.49

$

In Stock, Qty 7

0

17

Troy-Bilt 1186230

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

18

MTD 1100808

Hex Hd. Screw, 5/16-18 x 1-1/4

$

$

Not available

19

Troy-Bilt 55088

Bushing
(Superseded to GW-55088)

$

$

Not available

20

Troy-Bilt 1916121001

Drag Bar
(Superseded to 786-04104-0638)

$38.99

$

In Stock, Qty 8

0

21

Troy-Bilt 1916569001

Bracket, Stop
(Superseded to 786-04191-0637)

$

$

Not available

22

Troy-Bilt 1916570001

Reverse Arm (Drag Stake)
(Superseded to 786-04092)

$27.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1916708001

Bracket, Hood Support
(Superseded to 786-04099-0638)

$

$

Not available

24

MTD 1916707001

Bracket, Support Channel

$

$

Not available

25

Troy-Bilt 1186328

Hex Hd. Screw, 5/16-18 x 5/8
(Superseded to 710-04049)

$4.99

$

In Stock, Qty 8

0

26

Troy-Bilt 1916771

Spacer

$

$

Not available

27

Troy-Bilt 1111607

Hex Hd. Screw, 5/16-18 x 2-1/4
(Superseded to 710-0395)

$4.99

$

In Stock, Qty 11

0

28

Troy-Bilt 1107382

Washer, 5/16 I.D.
(Superseded to 936-0275)

$

$

Not available
