12215 - Troy-Bilt Mini-Tiller (SN: 122151100101 - 122151199999) General Assembly Parts Diagram

Mini-Tiller

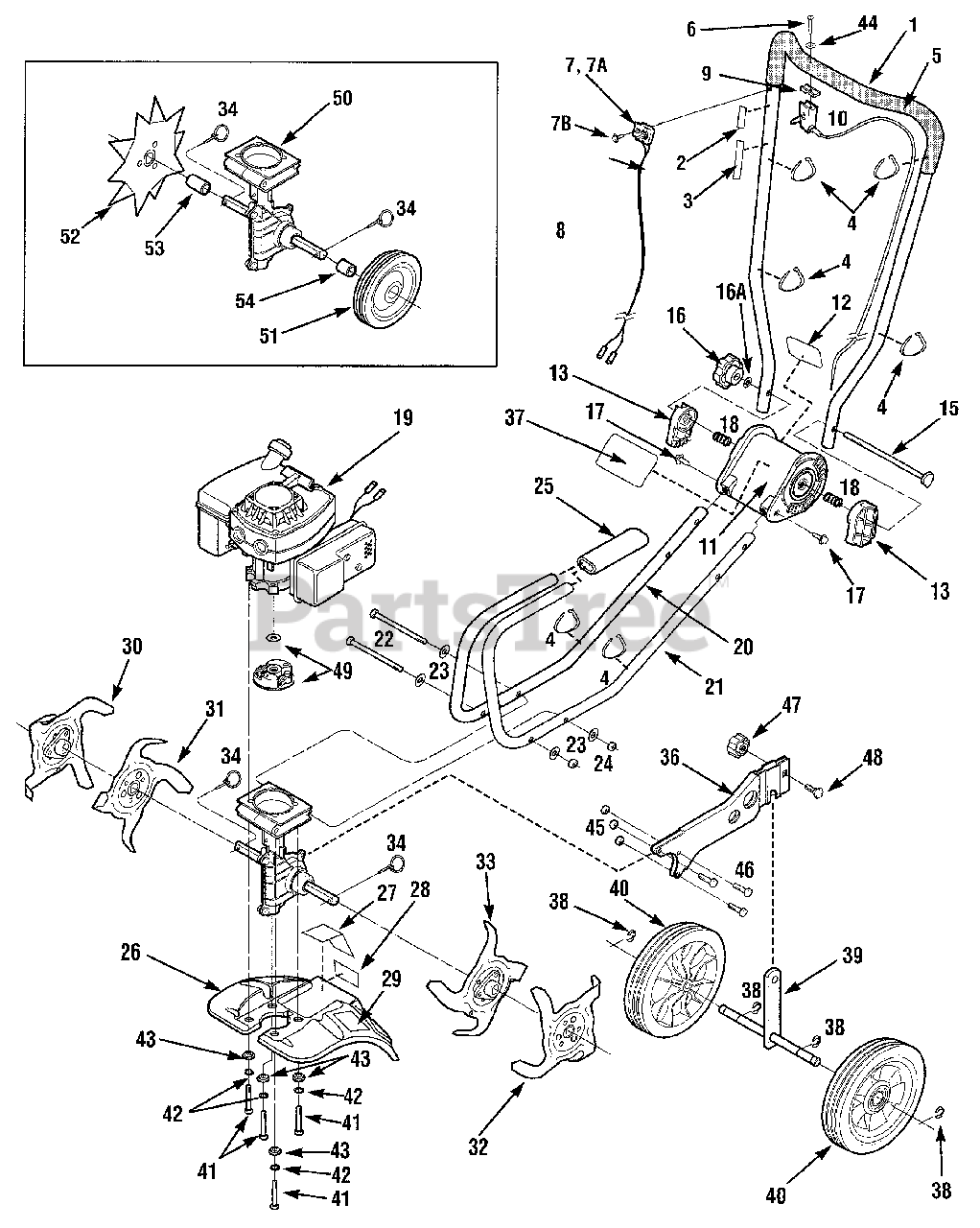

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 1903775

Upper Handlebar Assy

Note: Incl Ref. #2, #3, #5

$

$

Currently unavailable

2

MTD 1909936

Decal, On/Off Ignition Switch

$

$

Not available

3

MTD 1909939

Decal, Starting Stabilization

$

$

Not available

4

Troy-Bilt 1763682

Tie, Plastic
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

5

MTD 1917451

Handlebar Grip, PVC

$

$

Not available

6

MTD 1750608

Screw, #10-16 x 1-1/2"

$

$

Not available

7

Troy-Bilt 1983718

Switch, Engine Ignition

$

$

Not available

7A

Troy-Bilt 1981012001

Bracket Switch

$

$

Not available

7B

MTD 1766503

Screw, Phillips Hd., #12-24

$

$

Not available

8

MTD 1909812

Wire, Engine Ignition On/Off

$

$

Not available

9

Troy-Bilt 1909775

Spacer, Throttle Control

$

$

Not available

10

MTD 1909794

Lever and Cable Assy, Throttle

$

$

Not available

11

Troy-Bilt 1904129

Handlebar Pivot Assy.
(Superseded to 1909701)

Note: (Incl. Ref. #12 & #37)

$46.99

$

In Stock, only 1 left!

0

12

MTD 1909935

Decal, Control Lever

$

$

Not available

13

MTD 1909702

Ratchet, Handlebar Pivot

$

$

Not available

15

Troy-Bilt 1909722

Bolt, Handlebar Pivot

$

$

Not available

16

MTD 1763767

Knurled Knob, Handlebar Pivot

$

$

Not available

16A

Troy-Bilt 1107382

Washer, Flat, 5/16"
(Superseded to 936-0275)

$

$

Not available

17

Troy-Bilt 1904193

Screw, Slotted Hex Hd., 1/4"-14 x 3/4"

$

$

Currently unavailable

18

MTD 1909766

Spring, Handlebar Pivot

$

$

Not available

19

Engine, 2HP Tecumseh

Note: (Contact your Authorized Engine Dealer)

$

$

Not available

20

MTD 1909670001

Lower Handlebar, Right Side

$

$

Not available

21

Troy-Bilt 1909669001

Lower Handlebar, Left Side

$

$

Currently unavailable

22

MTD 1983663

Bolt, Hex Hd., 1/4"-20 x 5"

$

$

Not available

23

Troy-Bilt 1107381

Flat Washer, 1/4" I.D.
(Superseded to 936-3020)

$

$

Not available

24

Troy-Bilt 1817146

Locknut, 1/4"-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

25

MTD 1909720

Foam Sleeve, Lower Handlebar

$

$

Not available

26

Troy-Bilt 1916443

Hood Assy.

Note: Incl. Ref, #27, #28 & #29

$

$

Currently unavailable

27

MTD 1904552

Decal, Warning

$

$

Not available

28

MTD 1904553

Decal, Warning

$

$

Not available

29

MTD 1904549

Decal, Hot Surface Warning

$

$

Not available

30

Troy-Bilt 1909540

Tine, Outer, Right-Hand Side

$

$

Not available

31

Troy-Bilt 1909539

Tine, Inner, Right-Hand Side

$37.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 1909712

Tine, Outer, Left-Hand Side

$

$

Not available

33

Troy-Bilt 1909711

Tine, Inner, Left-Hand Side

$

$

Not available

34

Troy-Bilt 1904321

Ring Lock Pin
(Superseded to 753-04070)

$9.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 1909680

Wheel Bracket

$

$

Currently unavailable

37

Troy-Bilt 1917627

Logo Decal

$

$

Currently unavailable

38

Troy-Bilt 1729775

E-Rings
(Superseded to GW-9532)

$3.49

$

Usually ships in 3-6 days

0

39

MTD 1909517001

Axle

$

$

Not available

40

MTD 1909853

Wheel

$

$

Not available

41

MTD 1100807

Screw, Hex Cap, 1/4"-20 x 2"

$

$

Not available

42

Troy-Bilt 1100241

Washer, Lock 1/4"-20
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

43

MTD 1909838

Spacer, Engine Mounting

$

$

Not available

44

94019

Washer, Flat

$

$

Not available

45

Troy-Bilt 1817146

Locknut, 1/4"-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 1100069

Screw, 1/4"-20 x 1"
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 19

0

47

Troy-Bilt 1949835

Knob

$

$

Currently unavailable

48

Troy-Bilt 90077

Carriage Bolt

$

$

Currently unavailable

49

Troy-Bilt 1909487

Clutch Rotor with Washer
(Superseded to 1909487P)

$61.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 1909803

Transmission Assembly
(Superseded to 986-04000)

Note: (See "Transmission Assembly Components")

$

$

Not available

34

Troy-Bilt 1893445

Flat Washer
(Superseded to 936-0133)

Note: EDGER ATTACHMENT COMPONENT

$

$

Not available

?34A

Troy-Bilt 1177548

Lockwasher, External Tooth, 5/16"
(Superseded to 736-0607)

Note: EDGER ATTACHMENT COMPONENT

$3.99

$

In Stock, Qty 20+

0

?35

Troy-Bilt 1909835

Knurled Retaining Knob, Tire Shaft

Note: EDGER ATTACHMENT COMPONENT

$

$

Not available

51

Troy-Bilt 1903777

Edger Wheel

Note: EDGER ATTACHMENT COMPONENT

$16.99

$

Usually ships in 3-6 days

0

52

MTD 1903781

Edger Tine

Note: EDGER ATTACHMENT COMPONENT

$

$

Not available

53

Troy-Bilt 1983648

Long Bushing

Note: EDGER ATTACHMENT COMPONENT

$5.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 1903778

Short Bushing

Note: EDGER ATTACHMENT COMPONENT

$

$

Not available

MTD 12575

Power Lawn Rake Attachment

Note: ADDITIONAL ATTACHMENT

$

$

Not available

MTD 12574

Lawn Aerator Attachment

Note: ADDITIONAL ATTACHMENT

$

$

Not available
