12215 - Troy-Bilt Mini-Tiller (SN: 122151100101 - 122151199999) Transmission Assembly Components Parts Diagram

Mini-Tiller

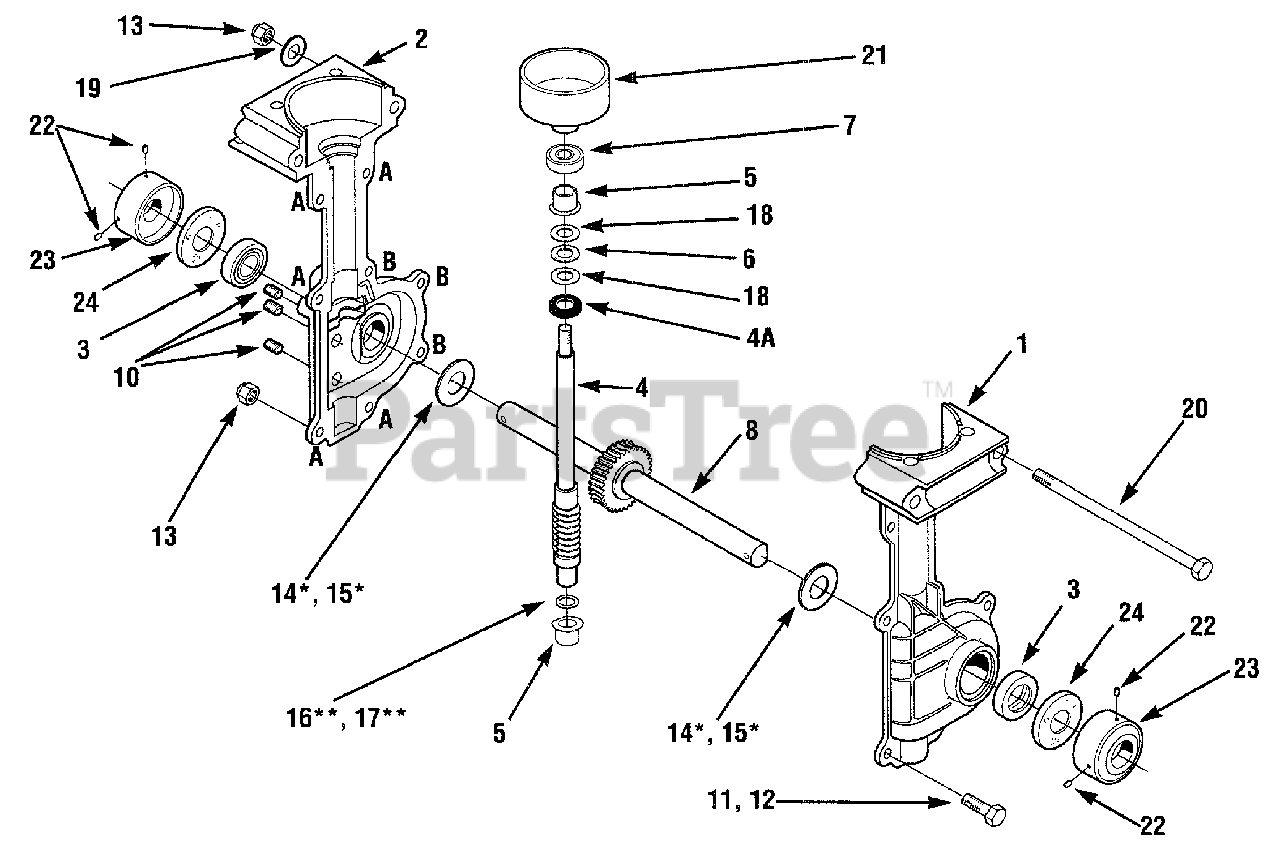

Transmission Assembly Components Parts Diagram

  • Title

1

Troy-Bilt 1915039

Transmission Case, with pressed-in bushing, left-side

$

$

Not available

2

MTD 1915040

Transmission Case, with pressed-in bushing, right-side

$

$

Not available

3

Troy-Bilt 1983632

Oil Seal
(Superseded to 921-04044)

$9.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 1983634

Shaft, worm-input
(Superseded to 1918307)

$57.99

$

Usually ships in 3-6 days

0

4A

MTD 1909923

Oil Seal, input
(Superseded to 921-04032)

$

$

Not available

5

Troy-Bilt 1983731

Bearing, input

$12.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1983636

Bearing, thrust
(Superseded to 741-04052)

$

$

Not available

7

Troy-Bilt 1983637

Ball Bearing

$38.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1904416

Shaft Assembly

Note: Includes pressed-on worm gear and two ring lock pins

$

$

Not available

10

Troy-Bilt 1185741

Plug, 1/8"
(Superseded to 737-04178)

$4.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 1111600

Screw, 1/4"-20 x 7/8"
(Superseded to 710-0206)

Note: (Five locations, identified as "A" on transmission case)

$4.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 1100069

Screw, 1/4"-20 x 1"
(Superseded to 710-0597)

Note: (Three locations, identified as "B" on transmission case)

$3.99

$

In Stock, Qty 18

0

13

Troy-Bilt 1817146

Lock Nut, Nyloc, 1/4"-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 20+

0

14

MTD 1983635

Thrust Washer, output (.050")

$

$

Not available

15

Troy-Bilt 1983640

Thrust washer, output (.040")

$6.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 1983641

Thrust Washer, input (.020")

$3.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 1983642

Thrust Washer, input (.035")
(Superseded to 936-0616)

$4.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 1983638

Thrust washer

$

$

Not available

19

Troy-Bilt 1107381

Flat Washer, 1/4"
(Superseded to 936-3020)

$

$

Not available

20

MTD 1983663

Screw, Hex Hd., 1/4"-20 x 5"

$

$

Not available

21

Troy-Bilt 1909486

Clutch Drum and Hub

$57.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1747166

Set Screw, 1/4"-28 x 3/8"

$4.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1915055

Dust Cover

$11.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 1983713

Felt washer

$5.49

$

Usually ships in 3-6 days

0

$

$

Not available
