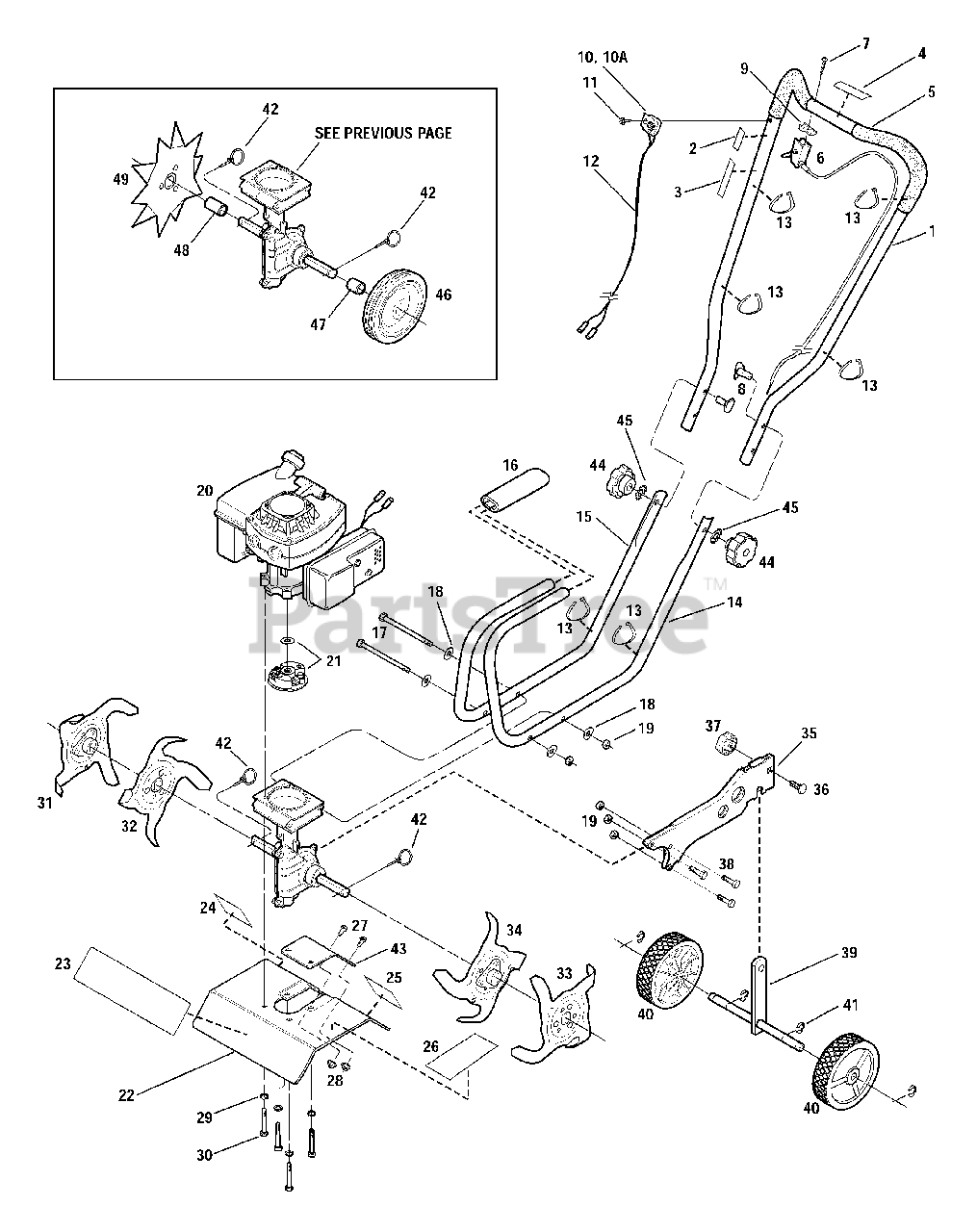

12215 - Troy-Bilt Mini-Tiller (SN: 122151200101 - 122151299999) General Assembly Parts Diagram

Mini-Tiller

General Assembly Parts Diagram

  • Title

1

MTD 1918303

Handlebar Assy.

Note: (Incl. Refs. 2, 3, 4 & 5)

$

$

Not available

2

MTD 1909936

Decal - On/Off Ignition Switch

$

$

Not available

3

MTD 1909939

Decal - Starting Stabilization

$

$

Not available

4

Troy-Bilt 1918221

Decal - Throttle Lever Operation

$

$

Currently unavailable

5

MTD 1917451

Handlebar Grip, PVC

$

$

Not available

6

Troy-Bilt 1918123

Throttle Lever and Cable
(Superseded to 1918123P)

$33.99

$

Usually ships in 3-6 days

0

7

MTD 1750608

Pan Hd. Screw, #10-16 x 1-1/2

$

$

Not available

8

Troy-Bilt 1731025

Saddle Hd. Screw, 5/16-18 x 2
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1909775

Spacer, Throttle Lever

$

$

Not available

10

Troy-Bilt 1983718

On/Off Ignition Switch

$

$

Not available

10A

Troy-Bilt 1981012001

Bracket - On/Off Ignition Switch

$

$

Not available

11

MTD 1766503

Phillips Hd. Screw, #12-24

$

$

Not available

12

Troy-Bilt 1918088

Wire Assy. - On/Off Ignition Switch

$

$

Currently unavailable

13

Troy-Bilt 1763682

Plastic Wire Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

14

MTD 1918120001

Lower Handlebar - Left-Side

$

$

Not available

15

Troy-Bilt 1918121001

Lower Handlebar - Right-Side

$

$

Not available

16

MTD 1909720

Foam Sleeve

$

$

Not available

17

MTD 1983663

Hex Hd. Screw, 1/4-20 x 5

$

$

Not available

18

Troy-Bilt 1107381

Flat Washer, 1/4-20
(Superseded to 936-3020)

$

$

Not available

19

Troy-Bilt 1817146

Hex Locknut, 1/4-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

20

Engine

Note: Order parts from your local authorized engine dealer. Refer to engine nameplate for model/type number.

$

$

Not available

21

Troy-Bilt 1909487

Clutch Rotor and Washer
(Superseded to 1909487P)

$61.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1918309

Tine Shield

Note: (Incl. Refs. 23, 24, 25 & 26)

$

$

Currently unavailable

23

Troy-Bilt 1918061

Decal - Logo

$

$

Currently unavailable

24

MTD 1904553

Decal - Warning, Rotating TInes

$

$

Not available

25

MTD 1904549

Decal - Warning, Hot Surfaces

$

$

Not available

26

MTD 1904552

Decal - Caution, Operation Hazards

$

$

Not available

27

MTD 1186292

Hex Hd. Screw, #10-24 x 1/2

$

$

Not available

28

Troy-Bilt 1186387

Flange Locknut, #10-24

$

$

Not available

29

Troy-Bilt 1100241

Lock Washer, 1/4-20
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

30

MTD 1100807

Hex Hd. Cap Screw, 1/4-20 x 2

$

$

Not available

31

Troy-Bilt 1909540

Outer Tine - Right-Hand Side

$

$

Not available

32

Troy-Bilt 1909539

Inner Tine - Right-Hand Side

$37.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 1909712

Outer Tine - Left-Hand Side

$

$

Not available

34

Troy-Bilt 1909711

Inner Tine - Left-Hand Side

$

$

Not available

35

Troy-Bilt 1909680001

Wheel Bracket

$

$

Not available

36

Troy-Bilt 90077

Carriage Bolt

$

$

Currently unavailable

37

Troy-Bilt 1909835

Knob

$

$

Not available

38

Troy-Bilt 1100069

Hex Hd. Screw, 1/4-20 x 1
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 19

0

39

MTD 1909517001

Axle

$

$

Not available

40

Troy-Bilt 1917754

Wheel
(Superseded to 734-04261)

$19.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 1729775

E-Ring
(Superseded to GW-9532)

$3.49

$

Usually ships in 3-6 days

0

42

Troy-Bilt 1904321

Ring Lock Pin
(Superseded to 753-04070)

$9.49

$

In Stock, Qty 20+

0

43

MTD 1981022010

Tine Hood Cover

$

$

Not available

44

MTD 1763767

Knob

$

$

Not available

45

Troy-Bilt 1177038

Lock Washer, 5/16

$

$

Not available

46

Troy-Bilt 1903777

Edger Wheel

Note: EDGER ATTACHMENT

$16.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 1903778

Bushing - Short

Note: EDGER ATTACHMENT

$

$

Not available

48

Troy-Bilt 1983648

Bushing - Long

Note: EDGER ATTACHMENT

$5.99

$

Usually ships in 3-6 days

0

49

MTD 1915054

Edger Tine

Note: EDGER ATTACHMENT

$

$

Not available

MTD 12575

Power Lawn Rake Attachment

Note: OPTIONAL ATTACHMENTS

$

$

Not available

MTD 12574

Lawn Aerator Attachment

Note: OPTIONAL ATTACHMENTS

$

$

Not available
