1222 EE (1696755-00) - Simplicity 22" Snow Thrower, 11.5hp Light Panel Group Parts Diagram

22" Snow Thrower, 11.5hp

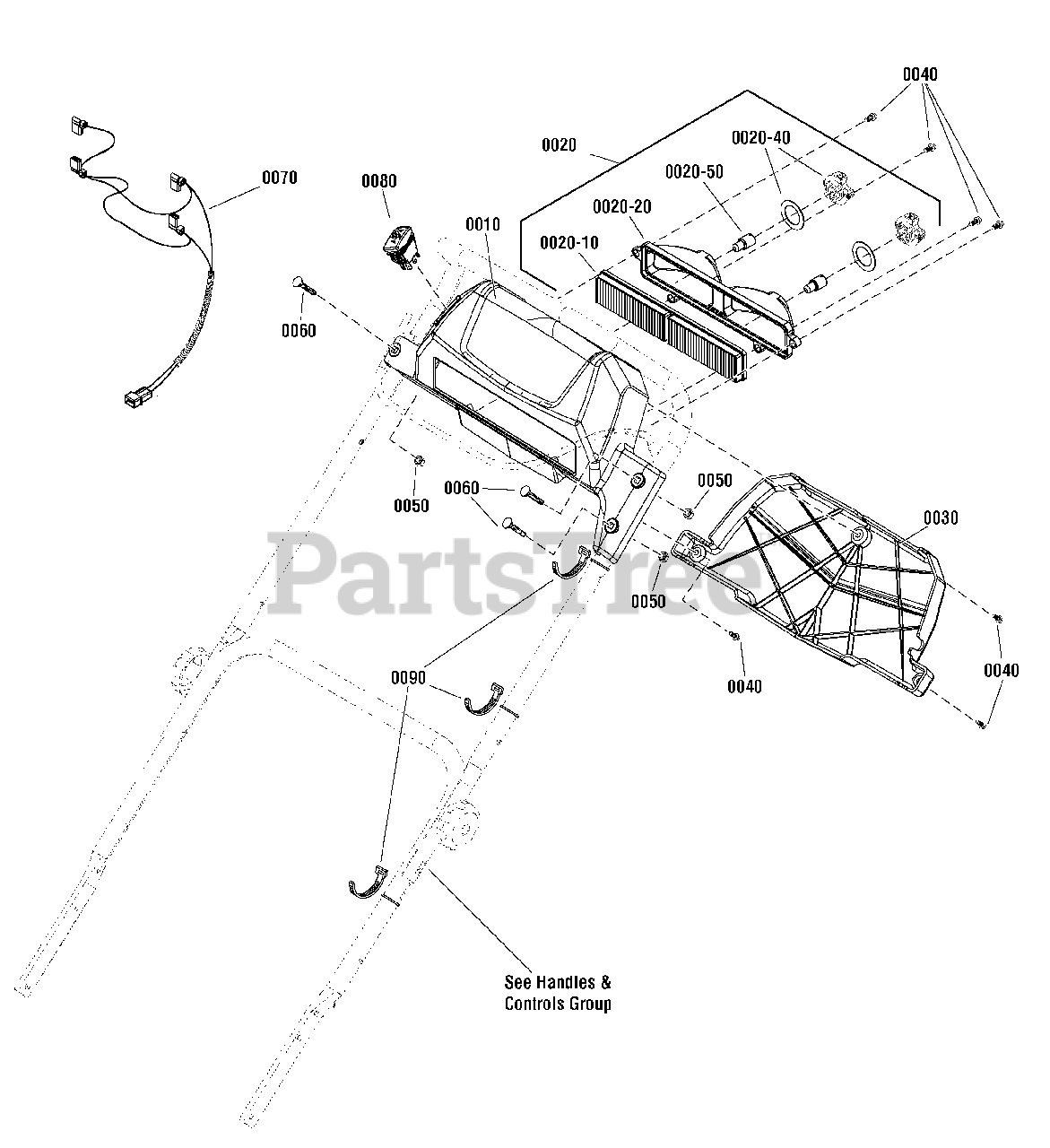

Light Panel Group Parts Diagram

  • Title

0010

Simplicity 706501

PANEL, Orange

$69.99

$

In Stock, only 2 left!

0

0020

Simplicity 1736176YP

HEADLIGHT ASSEMBLY

Note: (Includes Ref. Nos. 0020-10, 0020-20, 0020-40 & 0020-50)

$68.99

$

Usually ships in 2-12 days

0

0020-10

LENS, Twin Light

$

$

Not available

0020-20

DEFLECTOR

$

$

Not available

0020-40

SOCKET & GASKET ASSEMBLY, Headlight

$

$

Not available

0020-50

BULB, Headlight, 12V 15W (1156)

$

$

Not available

0030

Simplicity 706481

COVER, Light Panel

$35.99

$

Usually ships in 2-12 days

0

0040

Simplicity 7091105YP

SCREW, Hex Washer Head, #10-16 x 1/2
(Superseded to 26X245MA)

$4.49

$

In Stock, Qty 10

0

0050

Simplicity 703232

NUT, Nylock, 1/4

$4.49

$

In Stock, Qty 20+

0

0060

Simplicity 708701

SCREW, Allen Head, 1/4-20 x 1-1/2

$3.99

$

Usually ships in 2-12 days

0

0070

Simplicity 706483

HARNESS, Wiring

$35.99

$

Usually ships in 2-12 days

0

0070

Simplicity 708158

HARNESS, Wiring with Remote Rectifier

Note: (use with Engine Model: 15C107-0014-F8)

$63.99

$

In Stock, only 1 left!

0

0080

Simplicity 1754865YP

SWITCH, Chute Rotation
(Superseded to 1687904)

$87.99

$

In Stock, only 3 left!

0

0090

Simplicity 7024649YP

WIRE TIE, 11"

$5.49

$

Usually ships in 2-12 days

0
