1222 EE (1697293-00) - Briggs & Stratton 22" Snow Thrower, 11.5 Gross TP (2020) Cover & Wheel Group Parts Diagram

22" Snow Thrower, 11.5 Gross TP

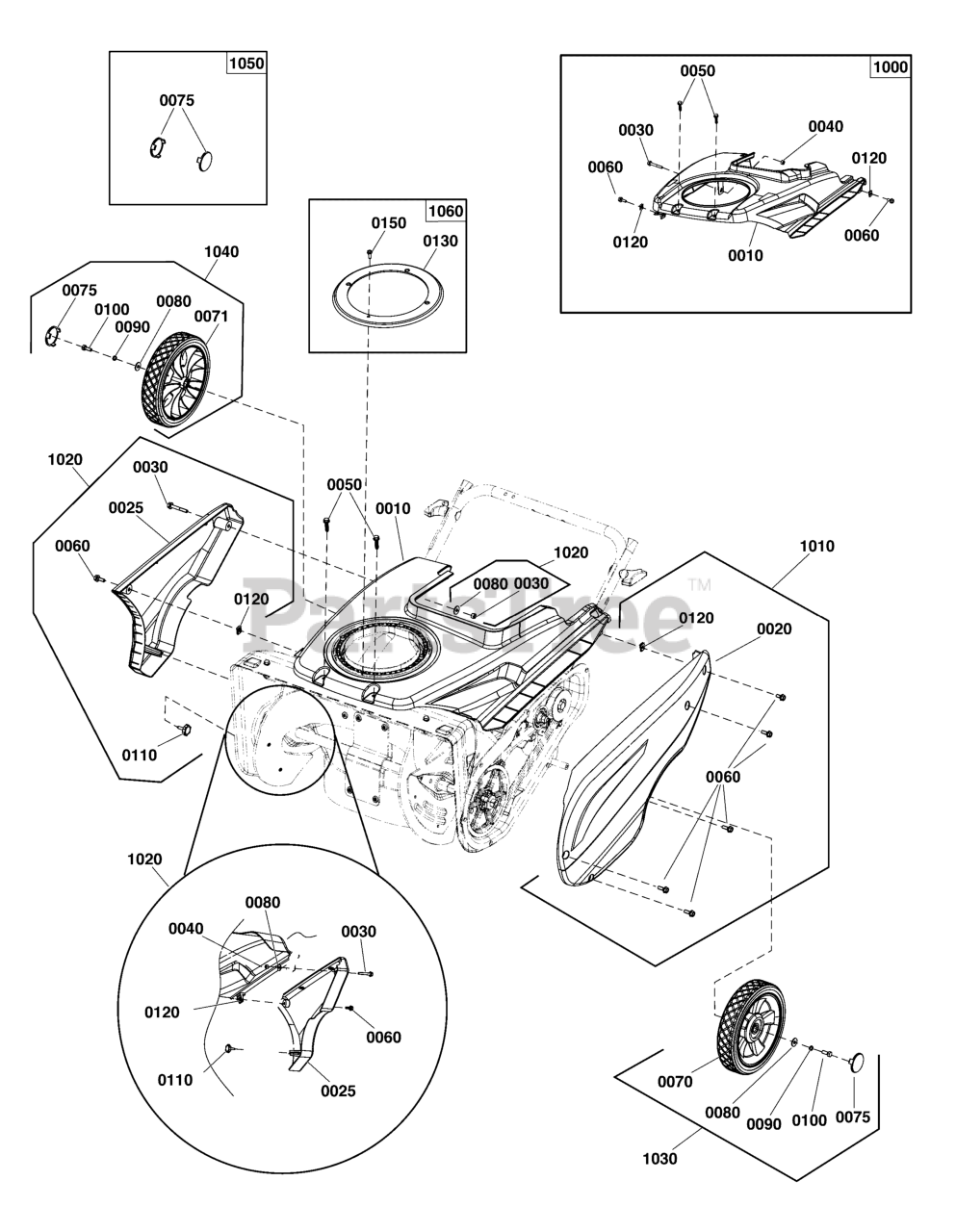

Cover & Wheel Group Parts Diagram

  • Title

1000

Murray 770586

KIT, COVER, Top

Note: (Incl. Ref. Nos. 0010, 0030, 0040, 0050, 0060 & 0120)

$178.99

$

Usually ships in 2-12 days

0

0010

COVER, Top

$

$

Not available

0030

SCREW, M6x40, Hex Flange Head

$

$

Not available

0040

NUT, M6, Lock

$

$

Not available

0050

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ
(Superseded to 1960728SM)

$3.99

$

In Stock, only 4 left!

0

0060

SCREW, M6x16, Hex Washer Head

$

$

Not available

0120

NUT, M6, CLIP

$

$

Not available

1010

Murray 709896

KIT, DRIVE CASE COVER

Note: (Incl. Ref. Nos. 0020, 0060 & 0120)

$64.99

$

Usually ships in 2-12 days

0

0020

COVER, Drive Case, Black

$

$

Not available

0060

SCREW, M6x16, Hex Washer Head

$

$

Not available

0120

NUT, M6, CLIP

$

$

Not available

1020

Murray 709916

KIT, SIDE COVER, RIGHT

Note: (Incl. Ref. Nos. 0025, 0030, 0040, 0060, 0080,0110 & 0120)

$68.99

$

Usually ships in 2-12 days

0

0025

COVER, Side, Orange

$

$

Not available

0030

SCREW, M6x40, Hex Flange Head

$

$

Not available

0040

NUT, M6, Lock

$

$

Not available

0060

SCREW, M6x16, Hex Washer Head

$

$

Not available

0080

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0110

SCREW, M5x20, Knob, Self-Tapping

$

$

Not available

0120

NUT, M6, CLIP

$

$

Not available

1030

Murray 709885

KIT, WHEEL, LEFT, PEWTER

Note: (Incl. Ref. Nos. 0070, 0075, 0080, 0090, 0100)

$76.99

$

Usually ships in 2-12 days

0

0070

WHEEL, Left, 1.75 X 8, Pewter

$

$

Not available

0075

COVER, End, Wheel, Pewter

$

$

Not available

0080

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0090

WASHER, M6, Split Lock, MC

$

$

Not available

0100

BOLT, M6x16, Hex Head

$

$

Not available

1040

Murray 770059

KIT, WHEEL, RIGHT, PEWTER

Note: (Incl. Ref. Nos. 0071, 0075, 0080, 0090, 0100)

$65.99

$

Usually ships in 2-12 days

0

0070

WHEEL, Right, 1.75 X 8, Pewter

$

$

Not available

0075

COVER, End, Wheel, Pewter

$

$

Not available

0080

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0090

WASHER, M6, Split Lock, MC

$

$

Not available

0100

BOLT, M6x16, Hex Head

$

$

Not available

1050

Murray 709883

KIT, Wheel Cover, Pewter

Note: (Incl. Ref. Nos. 0075)

$15.99

$

In Stock, only 1 left!

0

0075

COVER, End, Wheel, Pewter

$

$

Not available

1060

Murray 709887

KIT, CHUTE MOISTURE COVER

Note: (Incl. Ref. Nos. 0130 & 0150)

$25.99

$

Usually ships in 2-12 days

0

0130

COVER, Chute Moisture

$

$

Not available

0150

Murray 316042MA

CAPSCREW, Hex Washer Head, #10-HL x 5/8

$4.49

$

Usually ships in 2-12 days

0
