1222 EED (1696507-00) - Briggs & Stratton 22" Snow Thrower, 11.5 Gross TP (2015) Chute Rotation Group - Electric Parts Diagram

22" Snow Thrower, 11.5 Gross TP

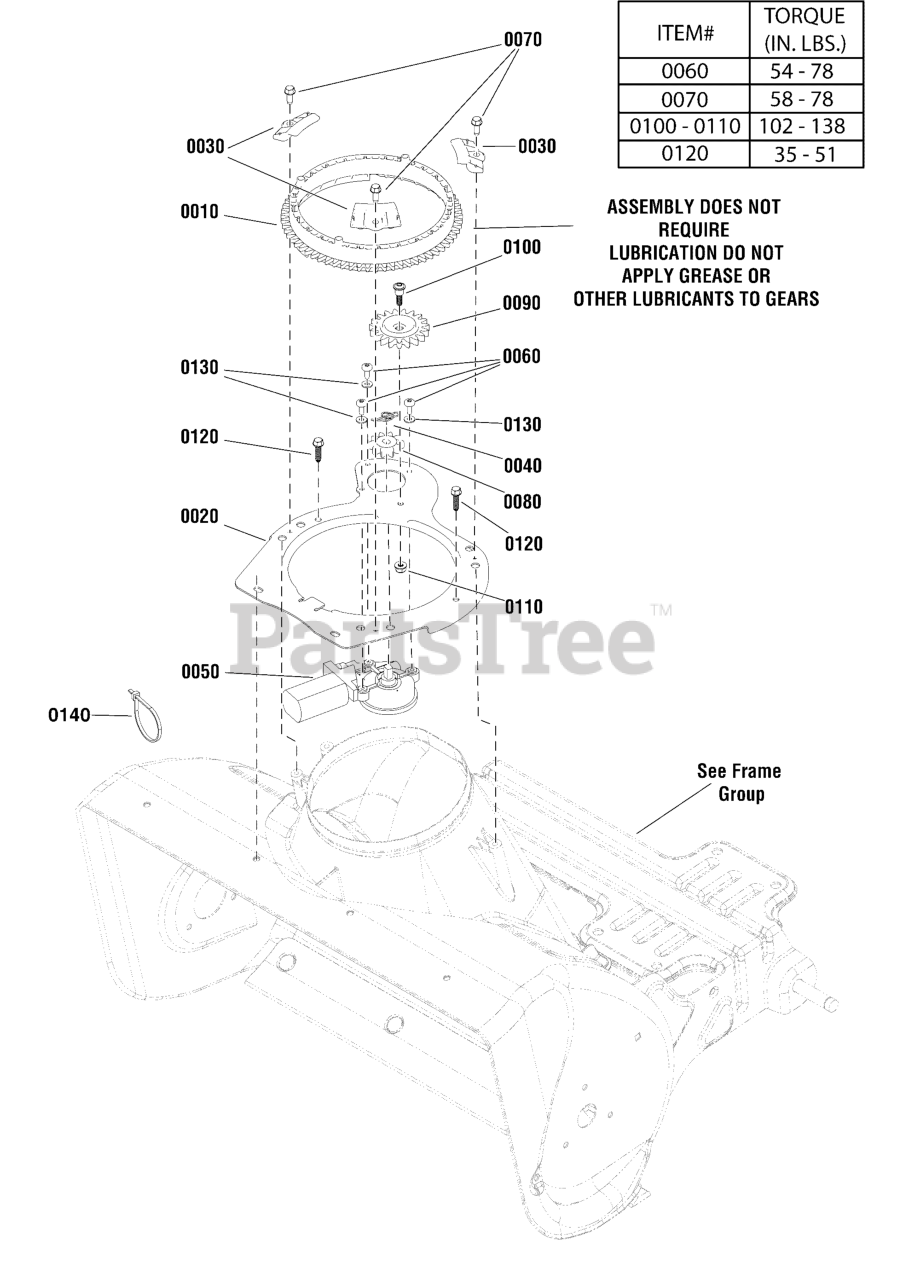

Chute Rotation Group - Electric Parts Diagram

  • Title

0010

Murray 706509

GEAR, Chute Rotation

$38.99

$

In Stock, only 1 left!

0

0020

Murray 706510

PLATE, Chute Mounting

$56.99

$

Usually ships in 2-12 days

0

0030

RETAINER, Chute

$

$

Not available

0040

Murray 7091594SM

PIN, Cotter, 1/2

$2.99

$

In Stock, only 2 left!

0

0050

Murray 1739309YP

MOTOR, Chute Rotation
(Superseded to 708703)

$86.99

$

In Stock, Qty 20+

0

0060

Murray 1739621YP

SCREW, Torx Button Head, M5 x .8 x 14

$4.49

$

In Stock, Qty 6

0

0070

Murray 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

0080

Murray 706512

GEAR, 10T

$9.49

$

In Stock, only 3 left!

0

0090

Murray 706513

GEAR, 19T

$14.99

$

Usually ships in 2-12 days

0

0100

Murray 706514

SCREW, Shoulder Button Washer Head, 1/4-20 x 1.00

$7.49

$

In Stock, only 1 left!

0

0110

Murray 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, only 1 left!

0

0120

Murray 706516

SCREW, High-Low, 1/4-15 x 1.00

$3.49

$

In Stock, only 2 left!

0

0130

Murray 7091552SM

WASHER, Flat, 1/4

$3.99

$

In Stock, only 4 left!

0

0140

Murray 7024649YP

WIRE TIE,11 Inch Standard Black Nylon

$5.49

$

Usually ships in 2-12 days

0
