1225 (132-201F100) - Cub Cadet Lawn Tractor (SN: 207401 - 239300) Engine Flywheel, Ring Gear, Blower Housing & Screen Parts Diagram

Lawn Tractor

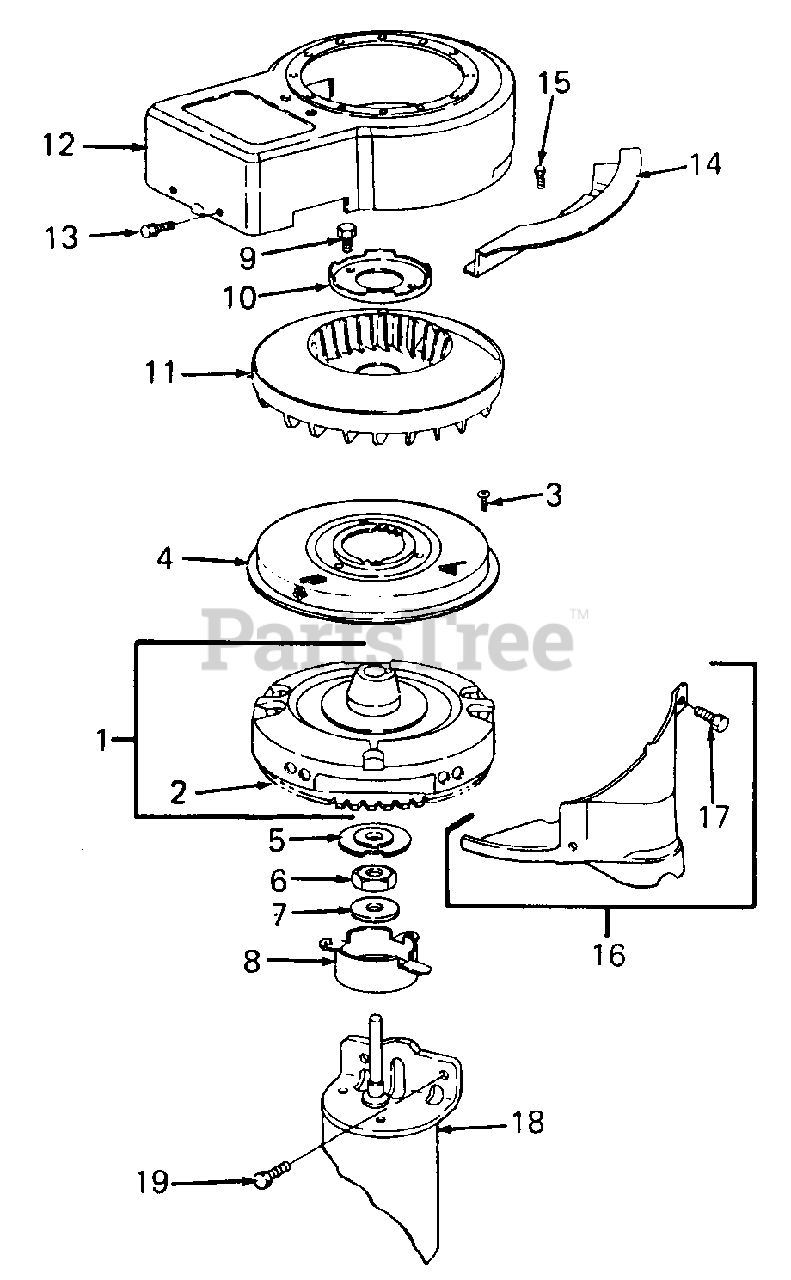

Engine Flywheel, Ring Gear, Blower Housing & Screen Parts Diagram

  • Title

1

Cub Cadet BS-492325

Flywheel & Ring Gear Assy - Magneto
(Superseded to BS-693556)

$

$

Not available

2

Cub Cadet BS-399676

Gear, Ring
(Superseded to BS-696537)

Note: (Includes Mounting Hardware)

$50.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-93805

Screw, Sems
(Superseded to BS-691655)

$3.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-222562

Screen, Flush Rotating
(Superseded to BS-691748)

$232.99

$

In Stock, only 1 left!

0

5

Cub Cadet BS-280848

Spacer

$

$

Not available

6

Cub Cadet BS-92284

Nut, Hex
(Superseded to 712-3056)

$4.49

$

In Stock, Qty 11

0

7

Cub Cadet BS-224061

Washer, Spring

$

$

Not available

8

Cub Cadet BS-222561

Cup, Screen Mounting

$

$

Not available

9

Cub Cadet BS-93535

Screw, Sems

$

$

Not available

10

Cub Cadet BS-224413

Retainer, Fan
(Superseded to BS-690452)

$10.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-280687

Fan, Flywheel

$

$

Not available

12

Cub Cadet BS-494269

Housing, Blower

$

$

Not available

13

Cub Cadet BS-94608

Screw, Hex Washer Head
(Superseded to BS-692198)

$5.99

$

In Stock, only 3 left!

0

14

Cub Cadet BS-223752

Guard, Flywheel

$

$

Currently unavailable

15

Cub Cadet BS-93705

Screw, Hex Head
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 20+

0

16

Cub Cadet BS-490324

Cover, Starter

$26.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-94073

Screw, Sems
(Superseded to BS-691002)

$8.49

$

In Stock, only 2 left!

0

18

Cub Cadet BS-394805

Motor, Starting
(Superseded to BS-497595)

$110.99

$

In Stock, Qty 5

0

19

Cub Cadet BS-94627

Screw, Sems

$

$

Not available
