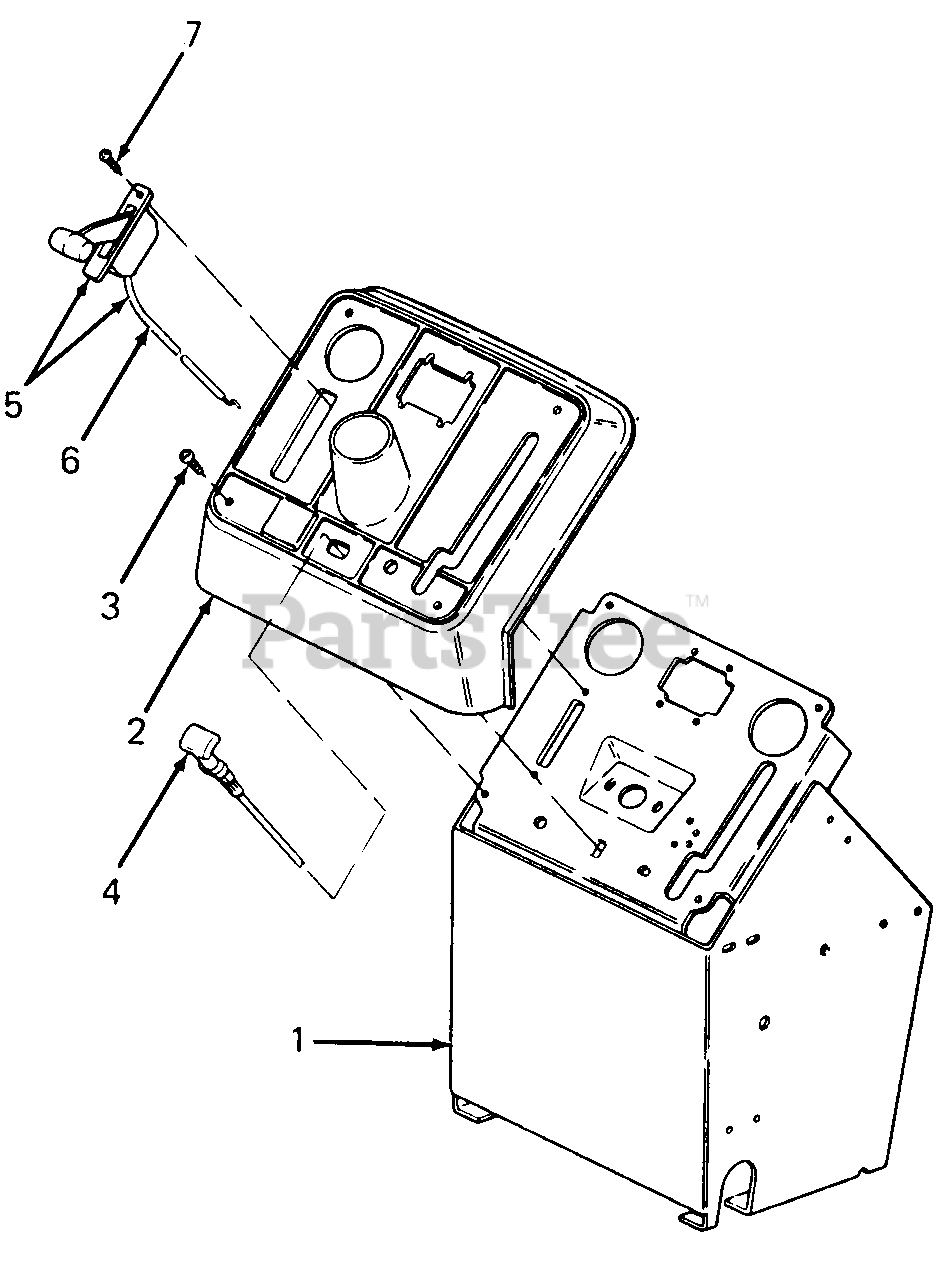

1225 (132-201F100) - Cub Cadet Lawn Tractor (SN: 207401 - 239300) Pedestal, Engine Controls & Instrument Panel Parts Diagram

Lawn Tractor

Pedestal, Engine Controls & Instrument Panel Parts Diagram

  • Title

1

Cub Cadet 703-1527

Pedestal

$

$

Not available

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 726-3028

Retainer, Push-on Bolt, 3/8 ID
(Superseded to 926-3028)

$

$

Not available

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0206

Washer, Flat, .378 X 1.0 X .125 Thk
(Superseded to 936-0206)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 11

0

Cub Cadet 712-3005

Nut, Hex Flange Lock, 3/8-16 GR5

$7.49

$

In Stock, Qty 5

0

2

Cub Cadet 731-3075

Panel, Dash
(Superseded to 931-3075)

$

$

Not available

3

Cub Cadet 710-3009

Screw, Pan Hd Cutting, #10-24 X .75 Lg

$7.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 746-3021

Control, Choke

$26.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 846-0500A6

Control Assy, Throttle - Complete
(Superseded to 946-0500A6)

Note: (Includes Ref No. 6 & 7 Plus P/N 831-0823A)

$70.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 746-0500

Wire, Throttle Control
(Superseded to 946-0500)

$16.99

$

In Stock, only 4 left!

0

7

Cub Cadet 710-0779

Screw, Truss Mach AB Tapp, #10 X .50 Lg
(Superseded to 710-0779A)

$4.99

$

In Stock, Qty 8

0
