1227 MD (1696619-02) - Briggs & Stratton 27" Snow Thrower, 11.5 Gross TP (2018) Discharge Chute Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

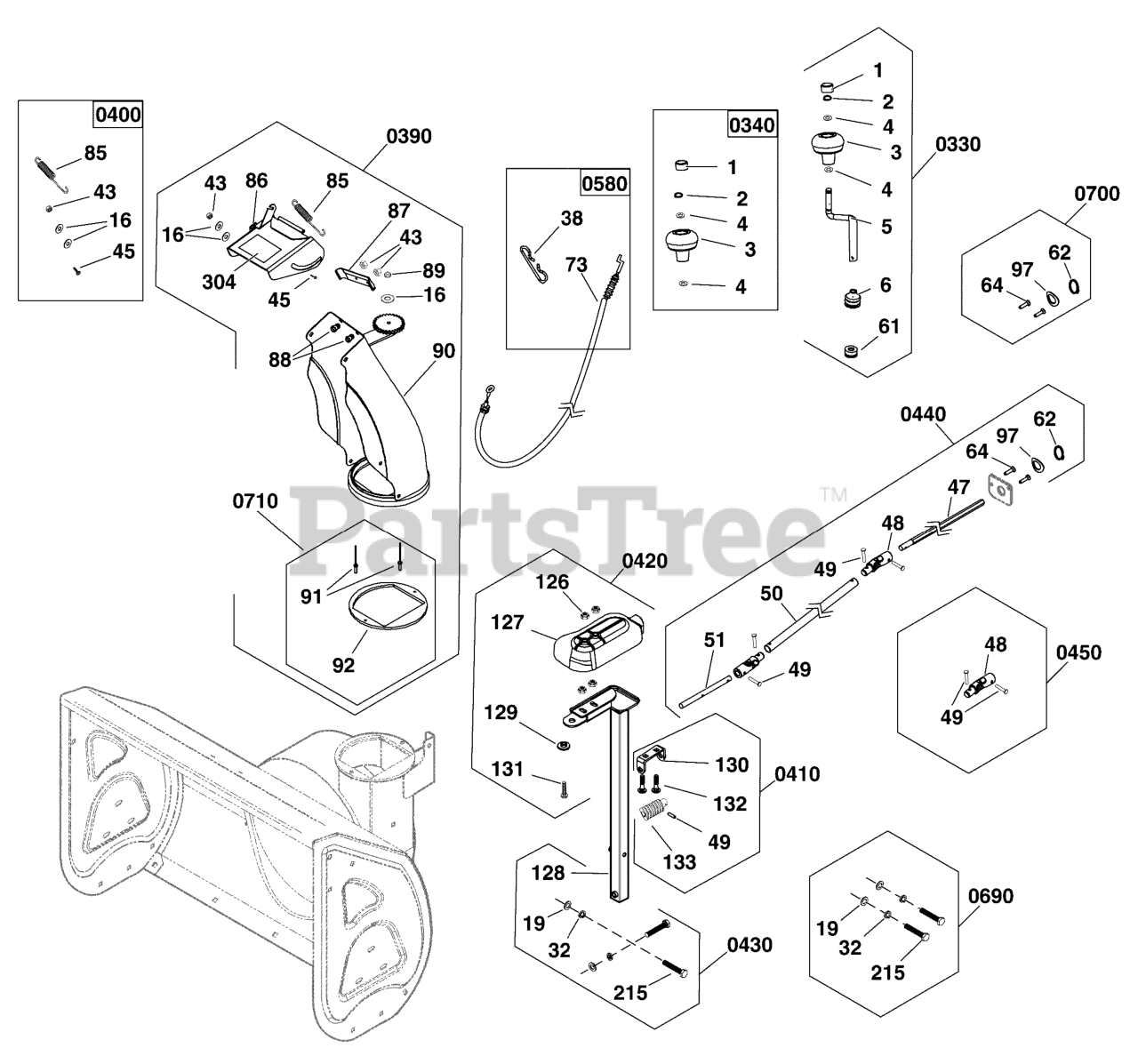

Discharge Chute Group Parts Diagram

  • Title

0330

Murray 707503

KIT, Chute Rotation

Note: (Incl. Ref. Nos. 1, 2, 3, 4, 5, 6, 61)

$28.99

$

Usually ships in 2-12 days

0

1

*COVER, Lever Knob, Chute Rotater

$

$

Not available

2

*C-Clip, Shaft

$

$

Not available

3

*KNOB, Lever, Chute Rotater

$

$

Not available

4

*WASHER, Flat

$

$

Not available

5

*LEVER, Chute Rotater

$

$

Not available

6

*SLEEVE, Rubber

$

$

Not available

61

*SLEEVE, Damping, Chute Rotater Lever

$

$

Not available

0340

Murray 707502

KIT, Chute Knob

Note: (Incl. Ref. Nos. 1, 2, 3, 4)

$11.99

$

Usually ships in 2-12 days

0

1

*COVER, Lever Knob, Chute Rotater

$

$

Not available

2

*C-CLIP, Shaft

$

$

Not available

3

*KNOB, Lever, Chute Rotater

$

$

Not available

4

*WASHER, Flat

$

$

Not available

0390

Murray 707562

KIT, Chute Assembly

Note: (Incl. Ref. Nos. 16, 43, 45, 85, 86, 87, 88, 89, 90, 91, 92, 304)

$142.99

$

Usually ships in 2-12 days

0

16

*WASHER, Flat

$

$

Not available

43

*NUT, Hex Head Lock, Non-metal

$

$

Not available

45

*SCREW, Non-standard

$

$

Not available

85

*SPRING, Tensioned, Chute Deflector

$

$

Not available

86

*DEFLECTOR, Chute

$

$

Not available

87

*PAD, Chute Rubber

$

$

Not available

88

*SCREW, Hex Head

$

$

Not available

89

*NUT, Hex Head Lock, Non-metal

$

$

Not available

90

*CHUTE

$

$

Not available

91

RIVET, 4 X 13

$

$

Not available

92

ADAPTER, Chute Ring

$

$

Not available

304

Murray 1737865YP

DECAL, Danger Chute Warning, FR/ENG

Note: (Not Illustrated)

$11.99

$

In Stock, only 1 left!

0

0400

Murray 707563

KIT, Spring, Chute

Note: (Incl. Ref. Nos. 16, 43, 45, 85)

$10.99

$

Usually ships in 2-12 days

0

16

*WASHER, Flat

$

$

Not available

43

*NUT, Hex Head Lock, Non-metal

$

$

Not available

45

*SCREW, Non-standard

$

$

Not available

85

Label-Emissions

$

$

Not available

0410

Murray 707543

KIT, Worm Gear Hardware, Chute

Note: (Incl. Ref. Nos. 49, 130, 132, 133)

$34.99

$

Usually ships in 2-12 days

0

49

*SPRING, Splitpin

$

$

Not available

130

*BRACKET, Worm

$

$

Not available

132

*BOLT, Square Neck

$

$

Not available

133

*WORM, Turning

$

$

Not available

0420

Murray 707544

KIT, Cover, Chute Rotation

Note: (Incl. Ref. Nos. 126, 127, 129, 131)

$34.99

$

Usually ships in 2-12 days

0

126

*NUT

$

$

Not available

127

*HEAD, Chute Rotation

$

$

Not available

129

*SELF-LOCK, Assembly, Chute Deflector

$

$

Not available

131

*SCREW, Hex Head

$

$

Not available

0430

Murray 772072

KIT, Chute Rotation Bracket

Note: (Incl. Ref. Nos. 19, 32, 128, 215)

$67.99

$

Usually ships in 2-12 days

0

19

WASHER, FLAT, 8X16X1.2

$

$

Not available

32

WASHER, M10, Split Lock

$

$

Not available

128

BRACKET, Chute Rotation Upper

$

$

Not available

215

SCREW, Hex Head, M8 X 45

$

$

Not available

0440

Murray 707525

KIT, Chute Rotaion Rod

Note: (Incl. Ref. Nos. 47, 48, 49, 50, 51 62, 64, 97)

$122.99

$

Usually ships in 2-12 days

0

47

*ROD, Hex, Chute Rotation

$

$

Not available

48

*JOINT, Cardan

$

$

Not available

49

*SPRING, Splitpin

$

$

Not available

50

*ROD, Rotation, Chute

$

$

Not available

51

*ROD, Rotation, Chute

$

$

Not available

62

*C-CLIP, Shaft

$

$

Not available

64

*SCREW, Hex Head

$

$

Not available

97

WASHER, Wave, 20

$

$

Not available

0450

Murray 707524

KIT, Cardan Joint

Note: (Incl. Ref. Nos. 48, 49)

$67.99

$

Usually ships in 2-12 days

0

48

*JOINT, Cardan

$

$

Not available

49

*SPRING, Splitpin

$

$

Not available

0580

Murray 707516

KIT, Cable-Chute Deflector

Note: (Incl. Ref. Nos. 38, 73)

$42.99

$

In Stock, only 3 left!

0

38

*HOOK, Cable

$

$

Not available

73

*CABLE, Chute Deflector

$

$

Not available

0690

Murray 771021

KIT, Hardware, Chute Rotation Bracket

Note: (Incl. Ref. Nos. 18, 19, 42)

$5.49

$

Usually ships in 2-12 days

0

19

WASHER, FLAT, 8X16X1.2

$

$

Not available

32

WASHER, M10, Split Lock

$

$

Not available

215

SCREW, Hex Head, M8 X 45

$

$

Not available

0700

Murray 770077

KIT, Chute Rotation Bracket Hardware

Note: (Incl. Ref. Nos. 62, 64, 97)

$7.49

$

Usually ships in 2-12 days

0

62

RING, External Retaining, 20

$

$

Not available

64

SCREW, Hex Washer Head, M6 X 10

$

$

Not available

97

WASHER, Wave, 20

$

$

Not available

0710

Murray 84002905

KIT, Hardware, Chute Rotation

Note: (Incl. Ref. Nos. 91, 92)

$9.49

$

Usually ships in 2-12 days

0

91

RIVET, 4 X 13

$

$

Not available

92

ADAPTER, Chute Ring

$

$

Not available
