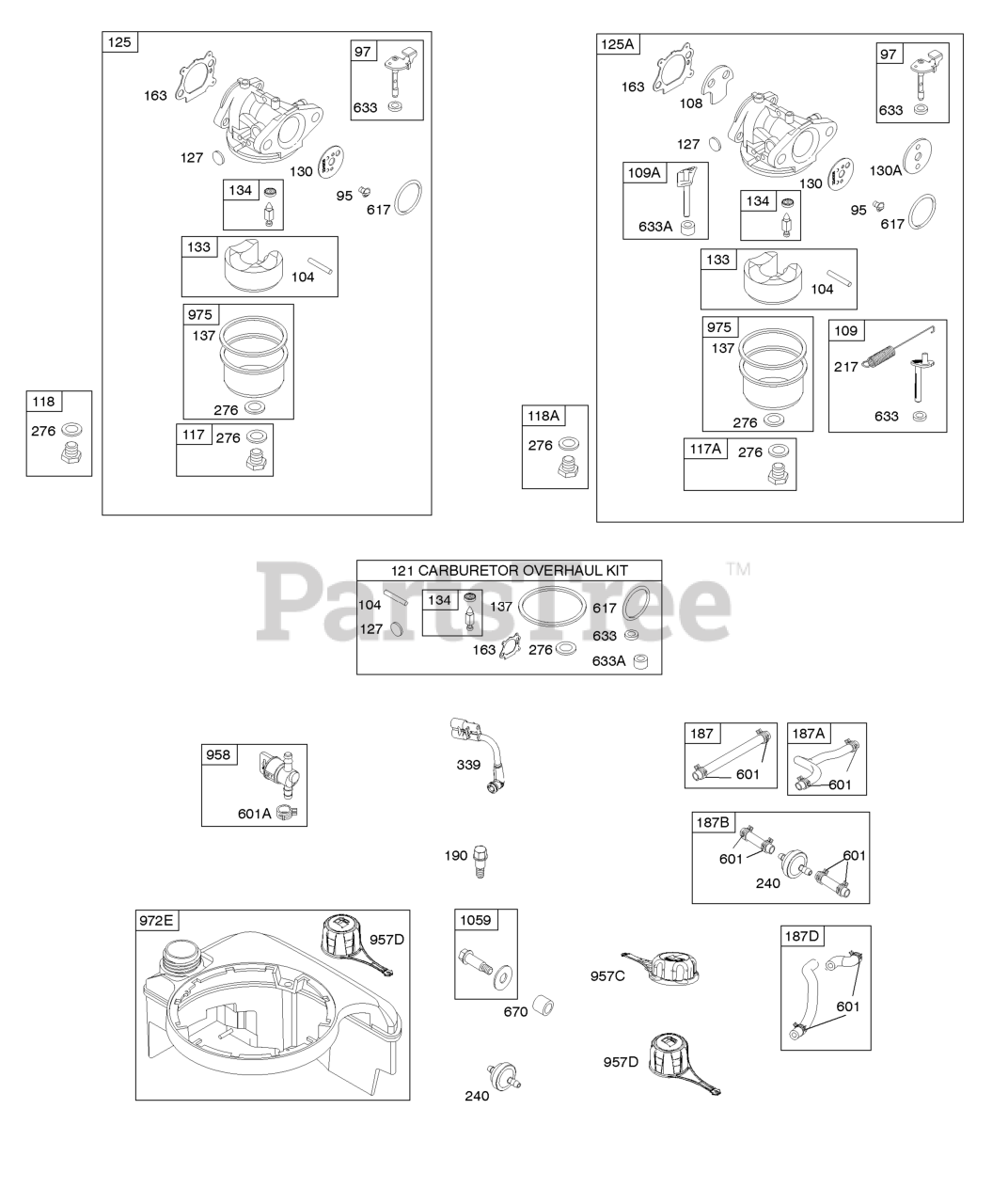

122L05-5768-F1 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply Parts Diagram

Vertical Engine

Carburetor, Fuel Supply Parts Diagram

  • Title

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 493267

Shaft-Throttle

Note: (Metal)

$16.99

$

In Stock, only 1 left!

0

97

Briggs & Stratton 696565

Shaft-Throttle

Note: (Plastic)

$15.99

$

In Stock, only 4 left!

0

104

Briggs & Stratton 797622

Pin-Float Hinge

$3.99

$

In Stock, only 4 left!

0

108

Briggs & Stratton 691182

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 494218

Shaft-Choke

$14.99

$

In Stock, only 4 left!

0

109A

Briggs & Stratton 498593

Shaft-Choke

$15.99

$

In Stock, only 1 left!

0

117

Briggs & Stratton 494870

Jet-Main

Note: (Standard)

$14.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 498981

Jet-Main

Note: (Standard)

$19.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 497315

Jet-Main

Note: (High Altitude)

$13.99

$

Usually ships in 2-12 days

0

118A

Briggs & Stratton 494870

Jet-Main

Note: (High Altitude)

$14.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 498260

Kit-Carburetor Overhaul

$16.99

$

In Stock, Qty 20+

0

125

Briggs & Stratton 799872

Carburetor

Note: (Primer System)

$

$

Not available

125A

Briggs & Stratton 799869

Carburetor

Note: (Choke System)

$67.99

$

In Stock, only 4 left!

0

127

Briggs & Stratton 694468

Plug-Welch

$4.49

$

In Stock, Qty 7

0

130

Briggs & Stratton 696564

VALVE-THROTTLE

$8.99

$

Usually ships in 2-12 days

0

130A

Briggs & Stratton 691203

VALVE-THROTTLE

$9.49

$

In Stock, only 1 left!

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 10

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

Note: (1/16" Thick)

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 796610

Gasket-Float Bowl

$6.99

$

In Stock, Qty 13

0

163

Briggs & Stratton 795629

Gasket-Air Cleaner

$3.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 791873

Line-Fuel

Note: (Molded)

$15.99

$

In Stock, only 2 left!

0

187B

Briggs & Stratton 791891

Line-Fuel

Note: (Includes Filter)

$18.99

$

In Stock, Qty 7

0

187D

Briggs & Stratton 795090

Line-Fuel

Note: (Molded)

$29.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 690940

Screw

Note: (Fuel Tank)

$3.99

$

In Stock, only 4 left!

0

217

Briggs & Stratton 690354

Spring-Choke Return

$7.49

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 298090S

Filter-Fuel

$5.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.49

$

In Stock, Qty 20+

0

339

Briggs & Stratton 794797

Tube/Connector Assembly

$17.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

601A

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

617

Briggs & Stratton 270344S

Seal-O Ring

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 691321

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

633A

Briggs & Stratton 693867

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 3 left!

0

670

Briggs & Stratton 692294

Spacer-Fuel Tank

$4.99

$

In Stock, Qty 12

0

957C

Briggs & Stratton 794793

Cap-Fuel Tank

$17.99

$

Usually ships in 2-12 days

0

957D

Briggs & Stratton 796577

Cap-Fuel Tank

$16.99

$

In Stock, Qty 13

0

958

Briggs & Stratton 698183

VALVE, Fuel Shut Off(PLT)

$8.49

$

In Stock, Qty 6

0

972E

Briggs & Stratton 796578

TANK-FUEL

$119.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 796611

Bowl-Float

$6.49

$

In Stock, Qty 18

0

1059

Briggs & Stratton 692311

Kit-Screw/Washer

$7.49

$

In Stock, Qty 10
