122T02-0234-H1 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply Parts Diagram

Vertical Engine

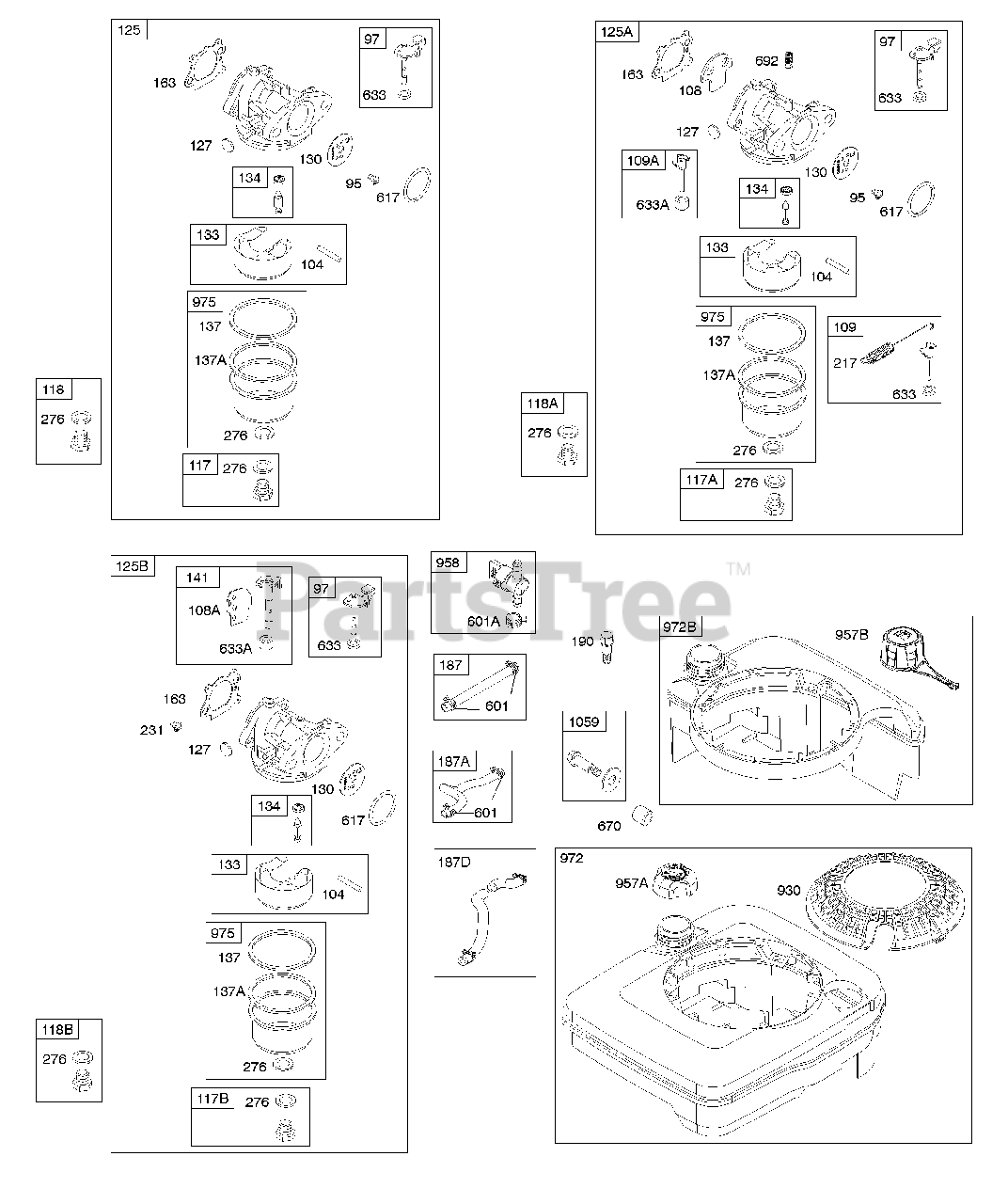

Carburetor, Fuel Supply Parts Diagram

  • Title
95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, Qty 5

0

97

Briggs & Stratton 696565

Shaft-Throttle

Note: (Plastic)

$14.99

$

In Stock, Qty 11

0

104

Briggs & Stratton 797622

Pin-Float Hinge

$3.99

$

In Stock, Qty 10

0

108

$8.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 795935

Valve-Choke

Note: Used After Code Date 08031200

$8.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 790844

Valve-Choke

Note: Used Before Code Date 08031300

$8.49

$

In Stock, only 1 left!

0

109

$13.99

$

In Stock, Qty 6

0

109A

$14.99

$

In Stock, only 1 left!

0

117

Briggs & Stratton 798661

Jet-Main

Note: (Standard)

$17.99

$

In Stock, Qty 5

0

118

Briggs & Stratton 799604

Jet-Main

Note: (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 799872

Carburetor

Note: (Primer System)

$68.99

$

Usually ships in 2-12 days

0

127

$3.99

$

In Stock, Qty 14

0

130

Briggs & Stratton 696564

Valve-Throttle

$7.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.49

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$7.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 796610

Gasket-Float Bowl

$7.49

$

In Stock, Qty 20+

0

137A

Briggs & Stratton 693981

Gasket-Float Bowl

Note: (1/16" Thick)

$3.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 796193

Kit-Choke Shaft

$12.99

$

In Stock, only 3 left!

0

163

Briggs & Stratton 795629

Gasket-Air Cleaner

$3.99

$

In Stock, Qty 20+

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 791873

Line-Fuel

Note: (Molded)

$14.99

$

In Stock, Qty 9

0

187D

Briggs & Stratton 795090

Line-Fuel

Note: (Molded)

$28.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 690940

Screw

Note: (Fuel Tank)

$3.99

$

In Stock, Qty 20+

0

217

Briggs & Stratton 690354

Spring-Choke Return

$6.99

$

In Stock, Qty 20+

0

231

Briggs & Stratton 691636

Screw

Note: (Choke Valve)

$3.99

$

In Stock, Qty 5

0

276

Briggs & Stratton 271716

Washer-Sealing

$5.49

$

In Stock, Qty 20+

0

601

$3.49

$

In Stock, Qty 20+

0

601A

$3.99

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344S

Seal-O Ring

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 691321

Seal-Choke/Throttle Shaft

$4.49

$

In Stock, Qty 10

0

633A

Briggs & Stratton 693867

Seal-Choke/Throttle Shaft

$4.49

$

In Stock, Qty 13

0

670

Briggs & Stratton 692294

Spacer-Fuel Tank

$4.49

$

In Stock, Qty 12

0

692

Briggs & Stratton 590931

Spring-Detent

$4.99

$

In Stock, only 3 left!

0

930

$25.99

$

In Stock, only 1 left!

0

957A

Briggs & Stratton 692046

Cap-Fuel Tank

$5.99

$

In Stock, Qty 20+

0

957B

Briggs & Stratton 796577

Cap-Fuel Tank

$17.99

$

In Stock, Qty 20+

0

958

Briggs & Stratton 698183

VALVE, Fuel Shut Off(PLT)

$9.49

$

In Stock, Qty 20+

0

972

$82.99

$

In Stock, Qty 17

0

972B

$69.99

$

In Stock, Qty 20+

0

975

$7.49

$

In Stock, Qty 20+

0

1059

Briggs & Stratton 692311

Kit-Screw/Washer

$6.49

$

In Stock, Qty 12

0
