123-236A190 - White Outdoor 22" Walk-Behind Mower (1993) 22" ERS Mower Parts Diagram

22" Walk-Behind Mower

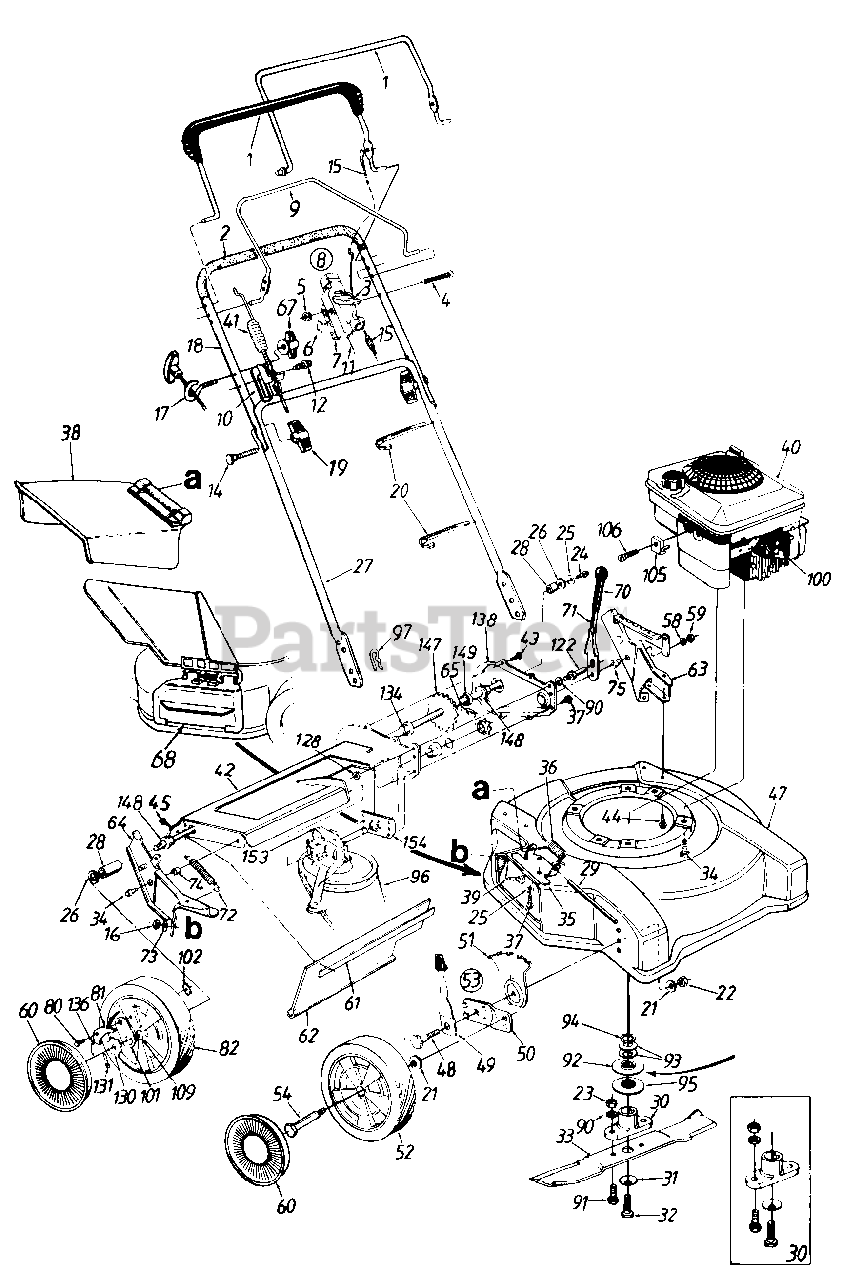

22" ERS Mower Parts Diagram

  • Title

1

White Outdoor 747-0824

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Variations

White Outdoor 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

2

UNKNOWN

$

$

Not available

3

White Outdoor 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.99

$

In Stock, only 1 left!

0

4

White Outdoor 710-0605

Oval C-Sunk Scr.

$4.99

$

In Stock, only 2 left!

0

5

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, only 4 left!

0

6

White Outdoor 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$7.49

$

Usually ships in 3-6 days

0

7

White Outdoor 746-0875

Throttle Body
(Superseded to 946-0875)

$9.99

$

In Stock, Qty 6

0

8

White Outdoor 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 3, 4, 5, 6, 7)

$38.99

$

In Stock, only 4 left!

0

9

White Outdoor 747-0854

S.P. Bail Ass'y.
(Superseded to 747-0854-0637)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 747-0854-0637

LEVER-DRIVE CONTRO - POWDER BLACK (0637)

$

$

Not available

$

$

10

White Outdoor 16309A

Cable Bracket

$

$

Not available

11

White Outdoor 746-0843

Throttle Cable 55" Lg.
(Superseded to 946-0671A)

$14.99

$

In Stock, Qty 8

0

12

White Outdoor 710-0726

Hex Wash. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 710-1174

Curved Hd. Bolt 5/16-18 x 2"

$7.99

$

In Stock, Qty 16

0

15

White Outdoor 746-0550

Control Cable 39" Lg.
(Superseded to 946-0550)

$22.99

$

In Stock, Qty 5

0

16

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

17

White Outdoor 710-1205

Rope Guide

$4.49

$

In Stock, Qty 12

0

18

White Outdoor 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

White Outdoor 749-0538C-0637

UPPER HANDLE BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

19

White Outdoor 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 6

0

20

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88"

$4.99

$

In Stock, Qty 20+

0

22

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

23

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 12

0

24

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .93"

$4.49

$

Usually ships in 3-6 days

0

27

White Outdoor 749-0928

Lower Handle
(Superseded to 749-0928A)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$35.99

$

In Stock, only 3 left!

0

$35.99

$

In Stock, only 3 left!

0

28

White Outdoor 748-0190

Spacer .513" I.D. x .703"

$6.99

$

In Stock, Qty 6

0

29

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 753-0484

Blade Adapter Kit

$24.99

$

In Stock, only 4 left!

0

31

White Outdoor 736-0452

Bell-Wash. .39" I.D.

$4.99

$

In Stock, only 4 left!

0

32

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 742-0622

22" Blade
(Superseded to 942-0622)

$

$

Not available

White Outdoor 742-0722

Mulching Blade
(Superseded to 942-0722)

Note: (Optional)

$33.99

$

Usually ships in 3-6 days

0

34

White Outdoor 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$4.99

$

In Stock, Qty 20+

0

35

White Outdoor 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 1 left!

0

36

White Outdoor 732-0593

Torsion Spring
(Superseded to 932-0593)

$5.49

$

In Stock, only 3 left!

0

37

White Outdoor 710-0599

Hex Self-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$

$

Not available

39

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

40

Engine

$

$

Not available

41

White Outdoor 746-0594

Drive Cable - 41.5" Lg.
(Superseded to 946-0594)

$

$

Not available

42

White Outdoor 17055B

Chain - Axle Ass'y.

Variations

White Outdoor 17055B-0483

No Longer Available Axle Assy-chain - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17055B-0498

AXLE ASSY-CHAIN - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 17055B-0629

No Longer Available Axle Assy-chain - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17055B-0637

AXLE ASSY-CHAIN - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17055B-0638

AXLE ASSY-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17055B-0648

No Longer Available AXLE ASSY-CHAIN - TECH GRAY (0648)

$

$

Not available

White Outdoor 17055B-0650

AXLE ASSY-CHAIN - RED METALLIC (0650)

$

$

Not available

White Outdoor 17055B-0662

No Longer Available Axle Assy-chain - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17055B-0665

AXLE ASSY-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17055B-0667

AXLE ASSY-CHAIN - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 17055B-0691

AXLE ASSY-CHAIN - BLACK JACK (0691)

$

$

Not available

$

$

43

White Outdoor 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

44

White Outdoor 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18

$5.49

$

Usually ships in 3-6 days

0

45

White Outdoor 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 8

0

47

MTD 682-0001

22" Deck Ass'y.

Variations

White Outdoor 682-0001-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-0001-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-0001-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

48

White Outdoor 738-0507B

Shld. Bolt .5" Dia. x .357

$4.99

$

In Stock, Qty 14

0

49

White Outdoor 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$11.99

$

In Stock, Qty 6

0

50

152628

Pivot Bar

$

$

Not available

51

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

Usually ships in 3-6 days

0

52

White Outdoor 634-0020

Wheel Ass'y. Comp.

$42.99

$

In Stock, Qty 8

0

53

White Outdoor 14578

Height Adj. Ass'y. Comp. - R.H.
(Superseded to 753-06761)

$69.99

$

In Stock, Qty 7

0

White Outdoor 14579

Height Adj. Ass'y. Comp. - L.H.
(Superseded to 753-06761)

$69.99

$

In Stock, Qty 7

0

54

White Outdoor 738-0102

Shld. Bolt .498" Dia. x 1.45"

$10.99

$

In Stock, Qty 5

0

58

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87"

$4.99

$

In Stock, Qty 20+

0

59

White Outdoor 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

60

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$11.99

$

In Stock, Qty 6

0

61

White Outdoor 14835

Retaining Strip

$

$

Not available

62

White Outdoor 731-0672A

Rear Flap

$31.99

$

Usually ships in 3-6 days

0

63

White Outdoor 16137B

L.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16137C-0637)

$

$

Not available

64

White Outdoor 16136B

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

65

White Outdoor 713-0353

#48 Chain .5" Pitch x 30 Links
(Superseded to 913-0353)

$

$

Not available

67

White Outdoor 712-0397

Wing Nut 1/4-20 Thd.
(Superseded to 712-0397A)

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 731-1386A

Mulching Baffle
(Superseded to 731-1386D)

Note: (Optional)

$

$

Not available

70

White Outdoor 720-0223

Grip

$15.99

$

In Stock, only 4 left!

0

71

White Outdoor 732-0606

Height Adj. Lever

$

$

Not available

72

White Outdoor 732-0481

Ext. Spring .5" O.D. x 3.8" Lg.
(Superseded to 932-0481)

$

$

Not available

73

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

74

White Outdoor 750-0736

Spacer .383" I.D. x .503"
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

White Outdoor 750-0624

Shld. Spacer .5" Dia.

$

$

Not available

80

White Outdoor 738-0137

Shld. Scr. .342" Dia. x .268"

$

$

Not available

81

White Outdoor 748-0188B

Pawl
(Superseded to 948-0188B)

$

$

Not available

82

White Outdoor 634-0020

Wheel Ass'y. Comp.

$42.99

$

In Stock, Qty 8

0

90

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

91

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1.0" Lg.

$5.49

$

Usually ships in 3-6 days

0

92

White Outdoor 756-0962

Upper Pulley Half

$

$

Not available

93

White Outdoor 736-0473

Bell-Wash. 7/8" I.D.

$

$

Not available

94

White Outdoor 748-0358

Crankshaft Spacer

$

$

Not available

95

White Outdoor 756-0961

Lower Pulley Half

$

$

Not available

96

White Outdoor 754-0369

"V"-Belt
(Superseded to 954-0369)

$30.99

$

In Stock, only 4 left!

0

97

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 16

0

100

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

101

White Outdoor 16855

Pawl Plate

$6.99

$

In Stock, Qty 20+

0

102

White Outdoor 712-0414

Weld L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

105

White Outdoor 751-0568

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, Qty 11

0

106

White Outdoor 710-1237

Hex Wash. Hd. Scr. #10-32 x .62" Lg.

$4.99

$

Usually ships in 3-6 days

0

109

White Outdoor 741-0486B

Sleeve Brg. 1/2" I.D.

$

$

Not available

122

White Outdoor 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

128

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

130

White Outdoor 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 9

0

131

White Outdoor 714-0115

Cotter Pin 1/8" Dia.

$4.49

$

In Stock, only 1 left!

0

134

White Outdoor 741-0522

Hex Flange Bearing

$9.49

$

In Stock, only 1 left!

0

136

White Outdoor 10622B

Spring - Nylon

$5.49

$

In Stock, Qty 20+

0

138

White Outdoor 17053A

Chain Cover

Variations

White Outdoor 17053A-0480

No Longer Available COVER-CHAIN - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 17053A-0483

No Longer Available COVER-CHAIN - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17053A-0637

No Longer Available COVER-CHAIN - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17053A-0638

No Longer Available COVER-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17053A-0650

No Longer Available COVER-CHAIN - RED METALLIC (0650)

$

$

Not available

White Outdoor 17053A-0662

No Longer Available COVER-CHAIN - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17053A-0665

No Longer Available COVER-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17053A-0674

No Longer Available COVER-CHAIN - YARDMAN YELLOW (0674)

$

$

Not available

$

$

147

White Outdoor 738-0719A

Rear Shaft Ass'y. 21.94" Lg.
(Superseded to 938-0719A)

$

$

Not available

148

White Outdoor 741-0324

Hex Flange Bearing
(Superseded to 741-0324A)

$8.49

$

In Stock, only 3 left!

0

149

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .93"

$4.49

$

Usually ships in 3-6 days

0

153

White Outdoor 717-0417B

Transmission Comp
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

154

White Outdoor 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

White Outdoor 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0
