123 C - Husqvarna String Trimmer (2004-01) Shaft / Tube Parts Diagram

String Trimmer

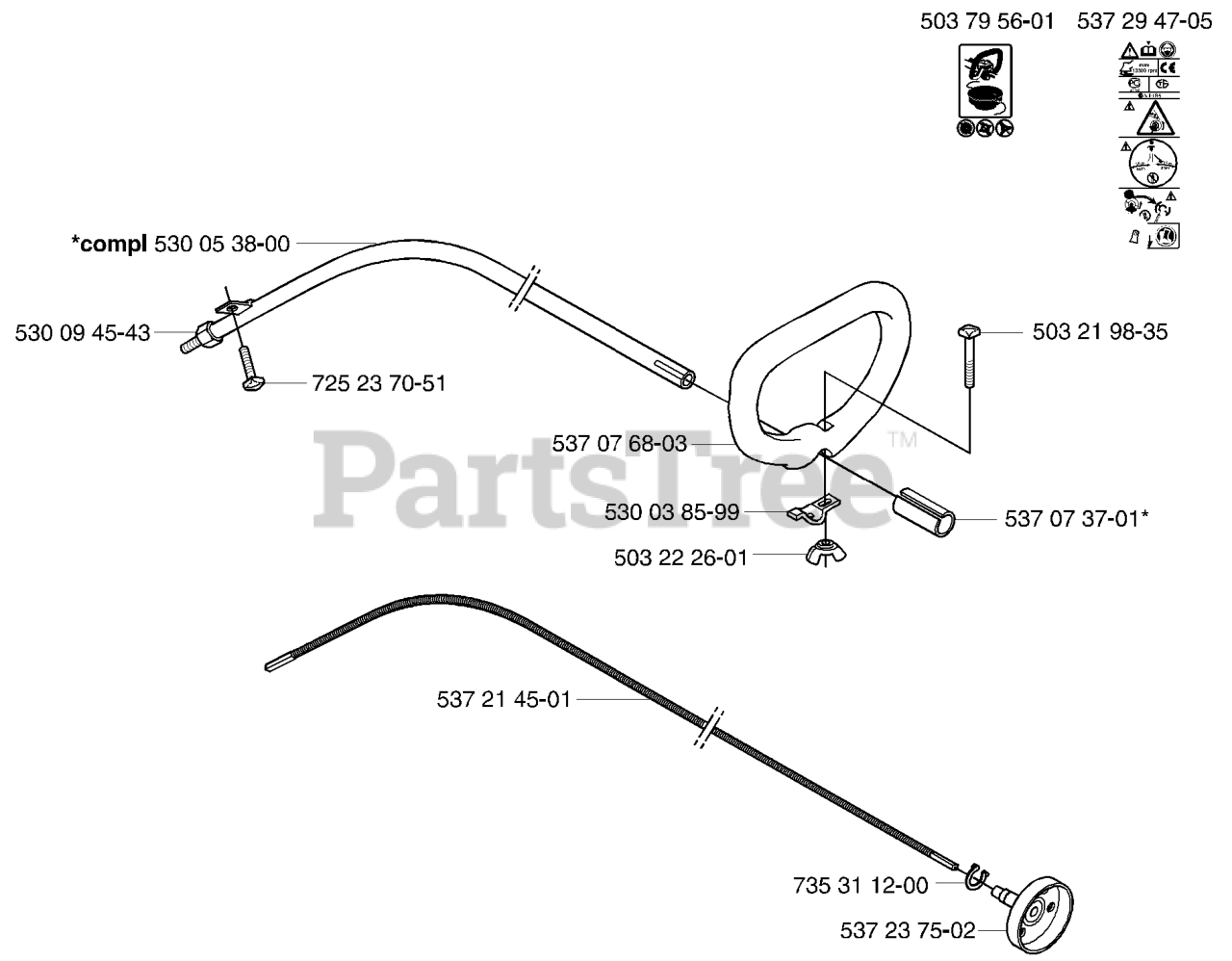

Shaft / Tube Parts Diagram

  • Title

503219835

Husqvarna 503219835

SCREW

$4.99

$

In Stock, only 2 left!

0

503222601

Husqvarna 503222601

WING NUT

$4.99

$

In Stock, only 1 left!

0

503795601

Husqvarna 503795601

DECAL WARNING "NO BLADES"

$3.49

$

Usually ships in 3-10 days

0

530038599

Husqvarna 530038599

CLAMP

$3.49

$

In Stock, Qty 5

0

530053800

Husqvarna 530053800

SHAFT ASSEMBLY

$37.99

$

In Stock, only 1 left!

0

530094543

Husqvarna 530094543

DUST CUP

$

$

Not available

537073701

Husqvarna 537073701

SLEEVE ALUMINUM

$4.99

$

In Stock, only 2 left!

0

537076803

Husqvarna 537076803

HANDLE, LOOP
(Superseded to 537076801)

$17.99

$

Usually ships in 3-10 days

0

537214501

Husqvarna 537214501

DRIVE SHAFT FLEX 123C

$51.99

$

In Stock, only 1 left!

0

537237502

Husqvarna 537237502

CLUTCH DRUM

$

$

Not available

537294705

Husqvarna 537294705

LABEL WARNING 123C

$

$

Not available

725237051

Husqvarna 725237051

SCREW M6S 6X20
(Superseded to 725237071)

$3.49

$

Usually ships in 3-10 days

0

735311200

Husqvarna 735311200

RETAINING RING SGA 10

$3.49

$

In Stock, only 2 left!

0
