1238 (132-552F100) - Cub Cadet Rear-Engine Riding Mower Engine (1992) B&S 12 HP Flywheel & Ring Gear Ass'y Parts Diagram

Rear-Engine Riding Mower Engine

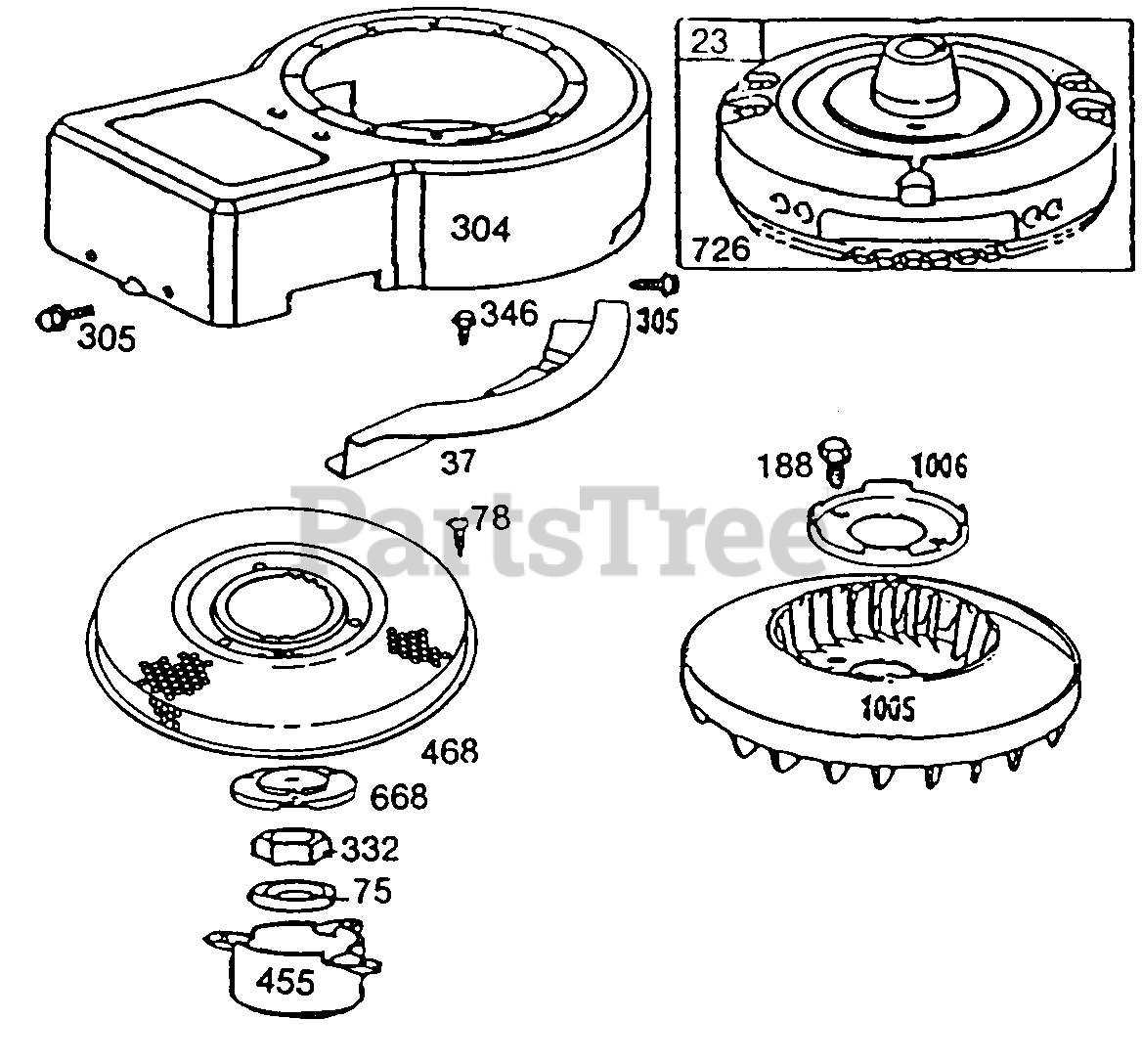

B&S 12 HP Flywheel & Ring Gear Ass'y Parts Diagram

  • Title

23

Cub Cadet BS-492326

Flywheel and Ring Gear Ass'y.--Magneto
(Superseded to BS-693557)

$

$

Not available

37

Cub Cadet BS-223752

Guard--Flywheel

$

$

Currently unavailable

75

Cub Cadet BS-224061

Washer--Spring

$

$

Not available

78

Cub Cadet BS-93805

Screw--Sem
(Superseded to BS-691655)

$3.99

$

Usually ships in 2-12 days

0

188

Cub Cadet BS-93535

Screw--Sem

$

$

Not available

304

Cub Cadet BS-494269

Housing--Blower

$

$

Not available

305

Cub Cadet BS-94608

Screw--Hex Washer Head
(Superseded to BS-692198)

$5.99

$

In Stock, only 3 left!

0

332

Cub Cadet BS-92284

Nut--Hex
(Superseded to 712-3056)

$4.49

$

In Stock, Qty 11

0

346

Cub Cadet BS-93705

Screw--Hex Head
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 20+

0

?363

Cub Cadet BS-19203

Puller--Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Cub Cadet BS-222561

Cup--Screen Mounting

$

$

Not available

468

Cub Cadet BS-222562

Screen--Flush Rotating
(Superseded to BS-691748)

$232.99

$

In Stock, only 1 left!

0

668

Cub Cadet BS-280848

Spacer

$

$

Not available

726

Cub Cadet BS-392134

Gear--Ring
(Superseded to BS-696537)

Note: (Includes Mounting Parts)

$50.99

$

Usually ships in 2-12 days

0

1005

Cub Cadet BS-280687

Fan--Flywheel

$

$

Not available

1006

Cub Cadet BS-224413

Retainer--Fan
(Superseded to BS-690452)

$10.99

$

Usually ships in 2-12 days

0
