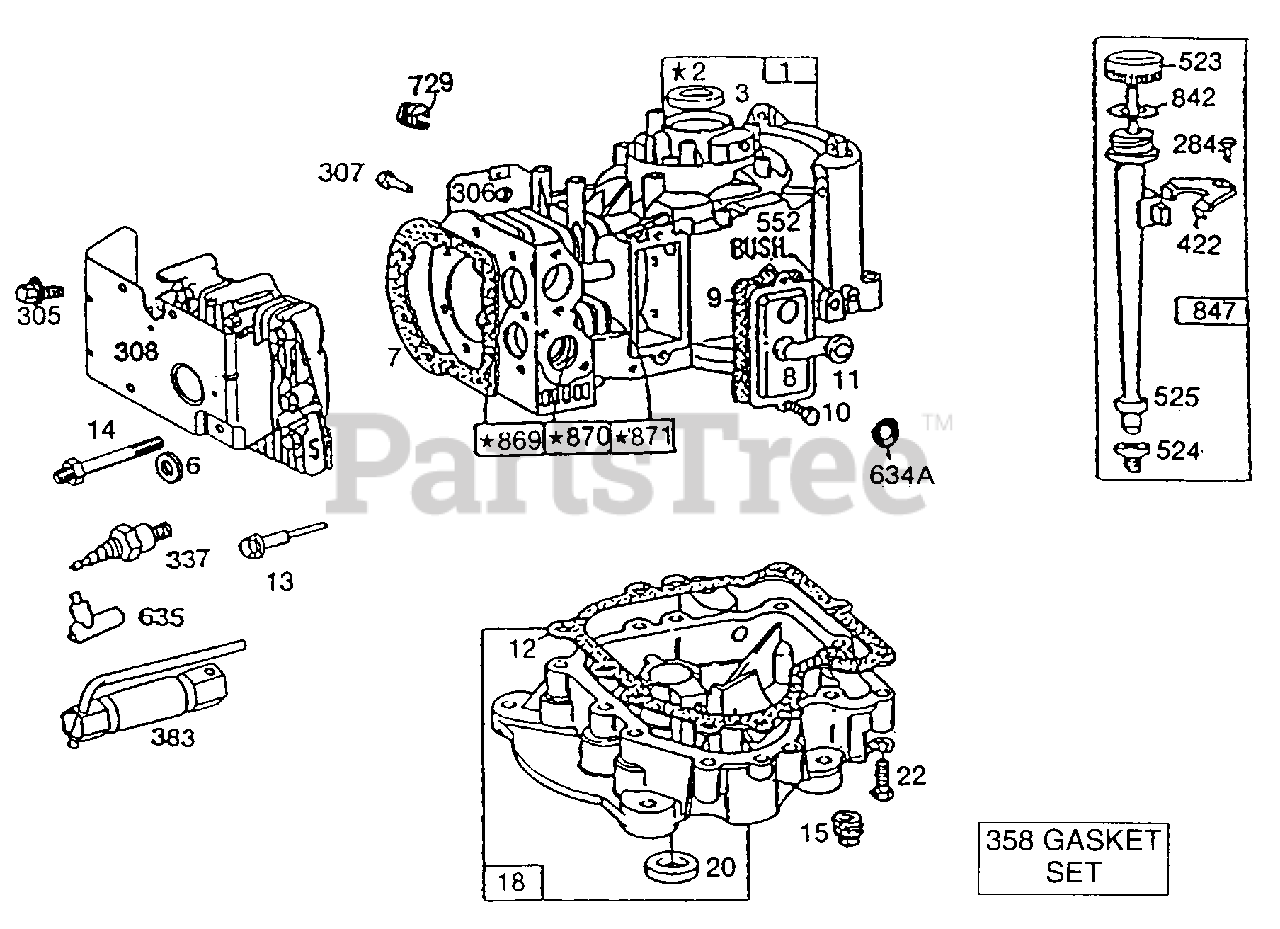

1238 (132-552F100) - Cub Cadet Rear-Engine Riding Mower Engine (1992) B&S 12 HP Short Block Ass'y Parts Diagram

Rear-Engine Riding Mower Engine

B&S 12 HP Short Block Ass'y Parts Diagram

  • Title

Cub Cadet BS-490763

Short Block

$

$

Not available

1

Cub Cadet BS-490450

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-399265

Bearing--Cylinder
(Superseded to BS-797673)

Note: (Requires Special Tools for Installation.)

$18.99

$

In Stock, only 3 left!

0

3

Cub Cadet BS-391086

Seal--Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-494240

Head--Cylinder

$110.99

$

Usually ships in 2-12 days

0

6

UNKNOWN

$

$

Not available

7

Cub Cadet BS-271866

Gasket--Cylinder Head
(Superseded to BS-271866S)

$9.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-391406

Breather Assembly
(Superseded to BS-495735)

$63.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-27803

Gasket--Valve Cover
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-93394

Screw--Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-280100

Tube--Breather
(Superseded to BS-692253)

$9.99

$

In Stock, Qty 8

0

12

Cub Cadet BS-271916

Gasket--Crankcase Cover (1/64" Thick)
(Superseded to BS-692226)

$6.99

$

In Stock, only 2 left!

0

Cub Cadet BS-271997

Gasket--Crankcase Cover (.005" Thick)
(Superseded to BS-692406)

$9.49

$

In Stock, only 1 left!

0

Cub Cadet BS-271996

Gasket--Crankcase Cover (.009" Thick)
(Superseded to BS-692405)

$6.49

$

In Stock, only 1 left!

0

13

Cub Cadet BS-93723

Screw--Cylinder Head

$

$

Not available

14

UNKNOWN

$

$

Not available

15

Cub Cadet BS-94239

Plug--Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 17

0

18

Cub Cadet BS-494238

Base--Engine

$

$

Not available

20

Cub Cadet BS-291675

Seal--Oil
(Superseded to BS-291675S)

$6.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-94305

Screw--Base Mounting
(Superseded to BS-692125)

$4.99

$

In Stock, only 2 left!

0

284

Cub Cadet BS-94419

Screw--Clamp Mtg.
(Superseded to BS-691693)

$3.99

$

In Stock, only 3 left!

0

305

Cub Cadet BS-94608

Screw--Hex Washer Hd.
(Superseded to BS-692198)

$5.99

$

In Stock, only 3 left!

0

306

Cub Cadet BS-224545

Shield--Cylinder

$

$

Not available

307

Cub Cadet BS-93949

Screw--Cylinder Shield Mtg.

$

$

Not available

308

Cub Cadet BS-491490

Cover--Cylinder Head

$

$

Not available

337

Cub Cadet 759-3338

Plug--Spark

$3.49

$

In Stock, Qty 20+

0

358

Cub Cadet BS-494241

Gasket Set

$39.99

$

In Stock, only 2 left!

0

383

Cub Cadet BS-89838

Wrench--Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, Qty 5

0

422

Cub Cadet BS-223721

Clamp--Oil Filler Tube
(Superseded to BS-224390)

$5.99

$

Usually ships in 2-12 days

0

523

Cub Cadet BS-490327

Cap and Dipstick--Oil Filler
(Superseded to BS-692014)

$25.99

$

In Stock, only 1 left!

0

524

Cub Cadet BS-68838

Seal--Filler Tube
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

525

Cub Cadet BS-280741

Tube--Oil Filler

$

$

Not available

552

Cub Cadet BS-231597

Bushing--Gov. Crank

$

$

Not available

634A

Cub Cadet BS-491323

Seal--Governor
(Superseded to BS-692407)

$7.99

$

In Stock, Qty 11

0

635

Cub Cadet BS-66538

Elbow--Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 14

0

729

Cub Cadet BS-281159

Clip--Lead Wire

$

$

Not available

842

Cub Cadet BS-270920

Seal--Oil Filler Cap
(Superseded to BS-691870)

$4.49

$

In Stock, only 2 left!

0

847

Cub Cadet BS-490474

Fill Group--Oil

$

$

Not available

869

Cub Cadet BS-261463

Seat--Intake Valve
(Superseded to BS-691802)

$17.99

$

Usually ships in 2-12 days

0

870

Cub Cadet BS-213316

Seat--Exhaust Valve
(Superseded to BS-691844)

$18.99

$

In Stock, only 1 left!

0

871

Cub Cadet BS-261961

Guide--Exhaust Valve

Note: (BS-231218 Guide--Intake Valve (Brass) See Repair Manual.)

$14.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-231218

Guide--Intake VAlve (Brass)

Note: See Repair Manual

$14.99

$

In Stock, only 2 left!

0
