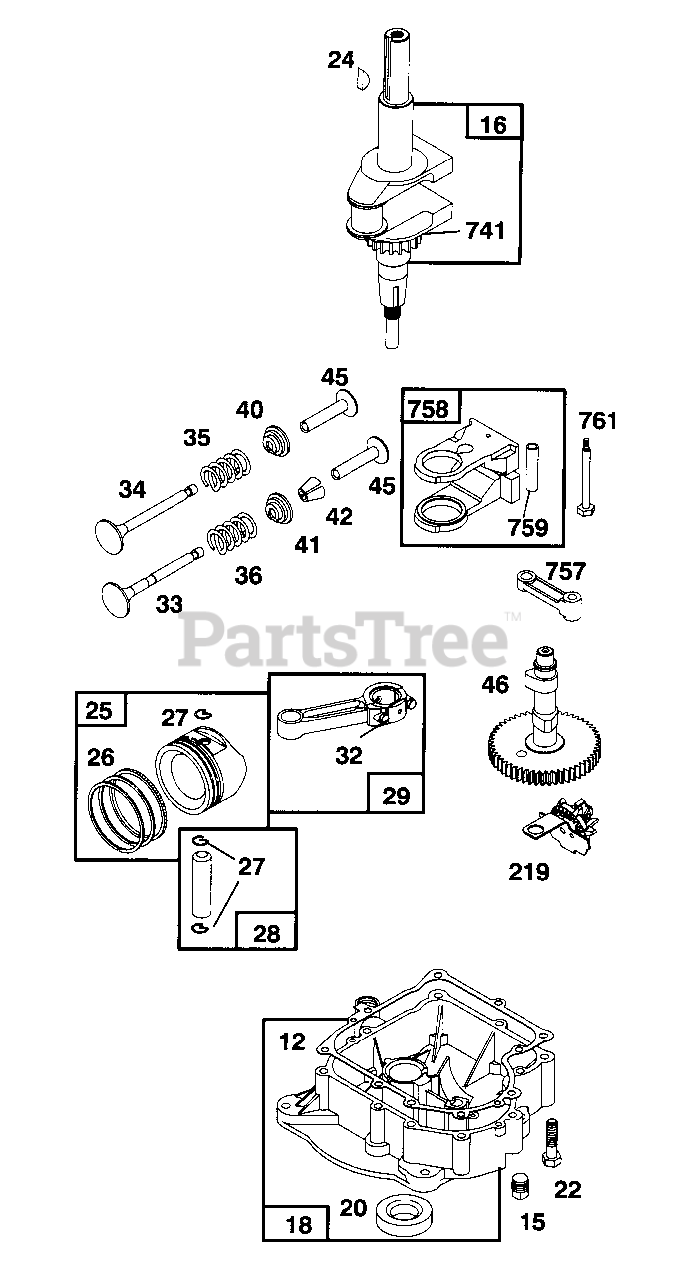

1238 (133I582B100) - Cub Cadet Rear-Engine Riding Mower Engine (1993) B&S 12 HP Crankcase, Crankshaft and Piston Ass'y Parts Diagram

Rear-Engine Riding Mower Engine

B&S 12 HP Crankcase, Crankshaft and Piston Ass'y Parts Diagram

  • Title

12

Cub Cadet BS-271916

Gasket--Crankcase Cover (1/64" Thick)
(Superseded to BS-692226)

$6.99

$

In Stock, Qty 8

0

Cub Cadet BS-271997

Gasket--Crankcase Cover (.005" Thick)
(Superseded to BS-692406)

$9.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-271996

Gasket--Crankcase Cover (.009" Thick)
(Superseded to BS-692405)

$6.99

$

In Stock, Qty 9

0

15

Cub Cadet BS-94239

Plug--Oil Drain
(Superseded to BS-690946)

$6.49

$

In Stock, Qty 8

0

16

Cub Cadet BS-495162

Crankshaft

Note: Order Part Number BS-94196 For Timing Gear Key

$

$

Not available

18

Cub Cadet BS-494238

Base Engine

$

$

Not available

20

Cub Cadet BS-291675

Seal--Oil
(Superseded to BS-291675S)

$7.49

$

In Stock, Qty 12

0

22

Cub Cadet BS-94624

Screw--Base Mtg. Sem
(Superseded to BS-692125)

$4.99

$

In Stock, only 3 left!

0

24

Cub Cadet BS-222698

Key--Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 9

0

25

Cub Cadet BS-394661

Piston Ass'y. (Std.)
(Superseded to BS-499284)

$

$

Not available

Cub Cadet BS-394662

Piston Ass'y. (.010" O.S.)
(Superseded to BS-499288)

$

$

Not available

Cub Cadet BS-394663

Piston Ass'y. (.020" O.S.)

$

$

Not available

Cub Cadet BS-394664

Piston Ass'y. (.030" O.S.)

$

$

Not available

26

Cub Cadet BS-391780

Ring Set--Piston (Std.)
(Superseded to BS-499996)

Note: Chrome Ring Set (Standard Size), Part No. BS-392331

$64.99

$

In Stock, Qty 8

0

Cub Cadet BS-391781

Ring Set--Piston (.010" O.S.)

Note: Chrome Ring Set (Standard Size), Part No. BS-392331

$

$

Not available

Cub Cadet BS-391782

Ring Set--Piston (.020" O.S.)

Note: Chrome Ring Set (Standard Size), Part No. BS-392331

$

$

Not available

Cub Cadet BS-391783

Ring Set--Piston (.030" O.S.)

Note: Chrome Ring Set (Standard Size), Part No. BS-392331

$

$

Not available

27

Cub Cadet BS-260924

Lock--Piston Pin

$

$

Not available

28

Cub Cadet BS-299691

Pin Assembly--Piston (Standard)

$19.99

$

In Stock, only 1 left!

0

Cub Cadet BS-391286

Pin Ass'y.--Piston (.005" O.S.)

$

$

Currently unavailable

29

Cub Cadet BS-490348

Rod Assembly--Connecting

Note: For Connecting Rod With (.020" Undersize) Crankpin Bore. Order No. BS-49046

$55.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-94671

Screw--Connecting Rod

$

$

Not available

33

Cub Cadet BS-262246

Valve--Exhaust

$

$

Not available

34

Cub Cadet BS-262247

Valve--Intake
(Superseded to BS-262247S)

$

$

Not available

35

Cub Cadet BS-65906

Spring--Intake Valve

$

$

Not available

36

Cub Cadet BS-26828

Spring--Exhaust Valve

$

$

Not available

40

Cub Cadet BS-221596

Retainer--Intake Valve
(Superseded to BS-690656)

$

$

Not available

41

Cub Cadet BS-292260

Rotocoil--Exhaust Valve
(Superseded to BS-691939)

$29.99

$

In Stock, Qty 5

0

42

Cub Cadet BS-93630

Retainer--Exhaust Valve Rotocoil
(Superseded to BS-494553)

$8.49

$

In Stock, only 1 left!

0

45

Cub Cadet BS-262248

Tappet--Valve

$

$

Not available

46

Cub Cadet BS-212897

Gear--Cam

$

$

Not available

219

Cub Cadet BS-490815

Oil Slinger, Gov. Gear Assembly
(Superseded to BS-691968)

$41.99

$

In Stock, Qty 14

0

741

Cub Cadet BS-262135

Gear--Timing
(Superseded to BS-691284)

$

$

Not available

757

Cub Cadet BS-213998

Link--Counterweight

$

$

Not available

758

Cub Cadet BS-399891

Counterweight Ass'y.
(Superseded to BS-692423)

$244.99

$

Usually ships in 2-12 days

0

759

Cub Cadet BS-298909

Pin--Counterweight

$9.99

$

In Stock, only 2 left!

0

761

Cub Cadet BS-94593

Screw--Counterweight

$

$

Not available

Cub Cadet BS-494241

Gasket Set

$40.99

$

In Stock, only 3 left!

0

Cub Cadet BS-94196

Timing Gear Key

$

$

Not available

Cub Cadet BS-392331

Chrome Ring Set (Standard Size)

$

$

Not available

Cub Cadet BS-490469

.020" Undersize Crankpin Bore

$

$

Not available
