1238 (133I582B100) - Cub Cadet Rear-Engine Riding Mower Engine (1993) B&S 12 HP Ignition Ass'y Parts Diagram

Rear-Engine Riding Mower Engine

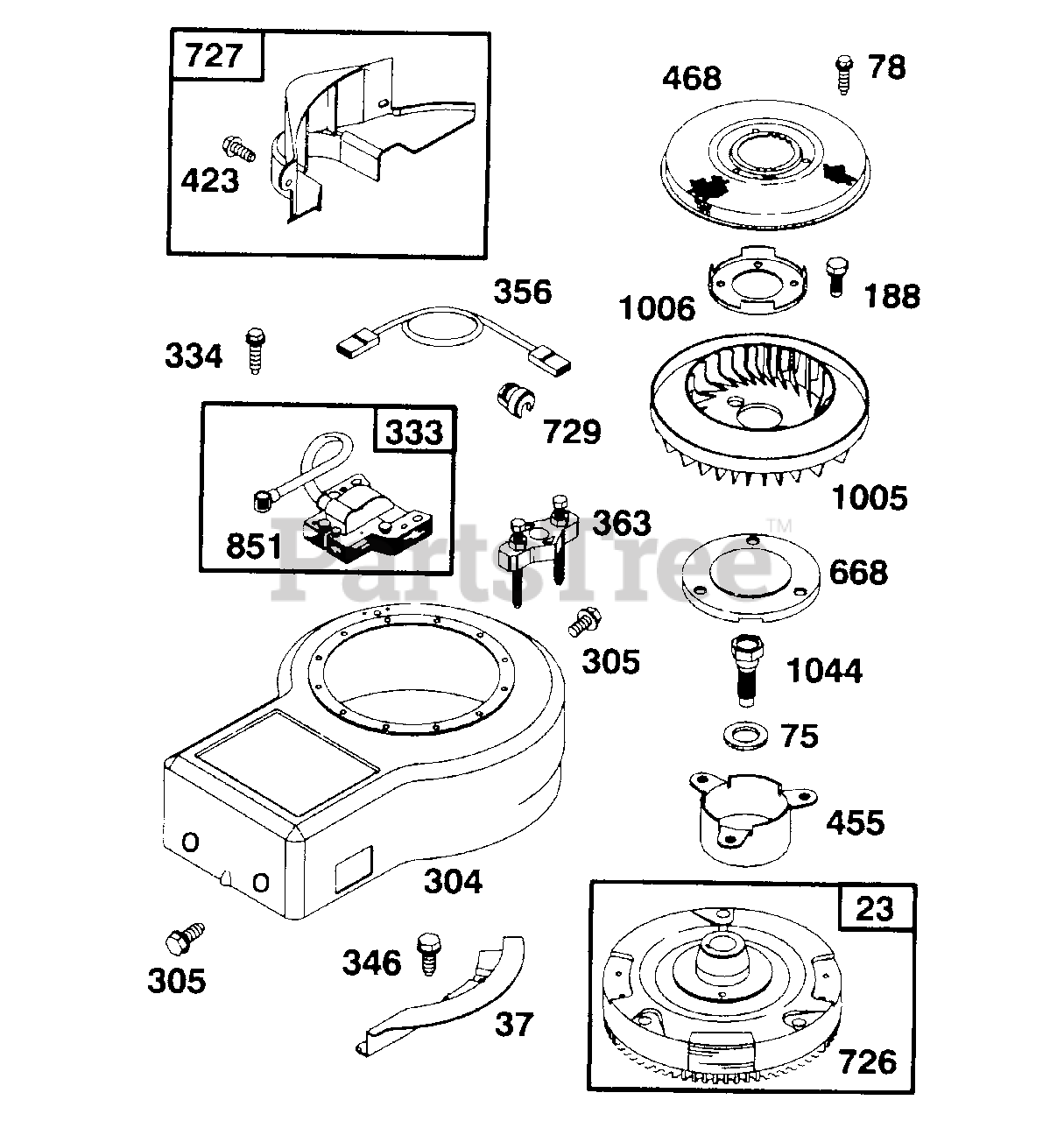

B&S 12 HP Ignition Ass'y Parts Diagram

  • Title

23

Cub Cadet BS-492326

Flywheel and Ring Gear Ass'y.--Magneto
(Superseded to BS-693557)

$

$

Not available

37

Cub Cadet BS-224502

Guard--Flywheel

$

$

Not available

75

Cub Cadet BS-224061

Washer--Spring

$

$

Not available

78

Cub Cadet BS-94626

Screw--Sem
(Superseded to BS-691655)

$3.99

$

Usually ships in 2-12 days

0

188

Cub Cadet BS-93535

Screw--Sem (3/4" Long)

$

$

Not available

304

Cub Cadet BS-494269

Housing--Blower

$

$

Not available

305

Cub Cadet BS-94619

Screw--Blower Housing Mounting Sem
(Superseded to BS-692198)

$5.99

$

In Stock, only 3 left!

0

333

Cub Cadet BS-492341

Armature--Magneto
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

334

Cub Cadet BS-93381

Screw Armature Mounting Sem

$

$

Not available

346

Cub Cadet BS-93705

Screw--Hex Head
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 20+

0

356

Cub Cadet BS-494328

Wire Assembly

$

$

Not available

363

Cub Cadet BS-19203

Puller--Flywheel

$23.99

$

In Stock, only 1 left!

0

423

Cub Cadet BS-94625

Screw--Sem

$

$

Currently unavailable

455

Cub Cadet BS-222561

Cup--Screen Mounting

$

$

Not available

468

Cub Cadet BS-222562

Screen--Flush Rotating
(Superseded to BS-691748)

$232.99

$

In Stock, only 1 left!

0

668

Cub Cadet BS-280848

Spacer

$

$

Not available

726

Cub Cadet BS-392134

Gear--Ring
(Superseded to BS-696537)

Note: (Includes Mtg. Hardware)

$50.99

$

Usually ships in 2-12 days

0

727

Cub Cadet BS-490324

Cover--Starter

$26.99

$

Usually ships in 2-12 days

0

729

Cub Cadet BS-281159

Clip--Lead Wire

$

$

Not available

851

Cub Cadet BS-221798

Terminal--Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

1005

Cub Cadet BS-280687

Fan--Flywheel

$

$

Not available

1006

Cub Cadet BS-224413

Retainer--Fan
(Superseded to BS-690452)

$10.99

$

Usually ships in 2-12 days

0

1044

Cub Cadet BS-94673

Screw--Hex Head
(Superseded to BS-698139)

$5.99

$

In Stock, Qty 5

0
