1238 (133I582B100) - Cub Cadet Rear-Engine Riding Mower Engine (1993) B&S 12 HP Motor Starter Ass'y Parts Diagram

Rear-Engine Riding Mower Engine

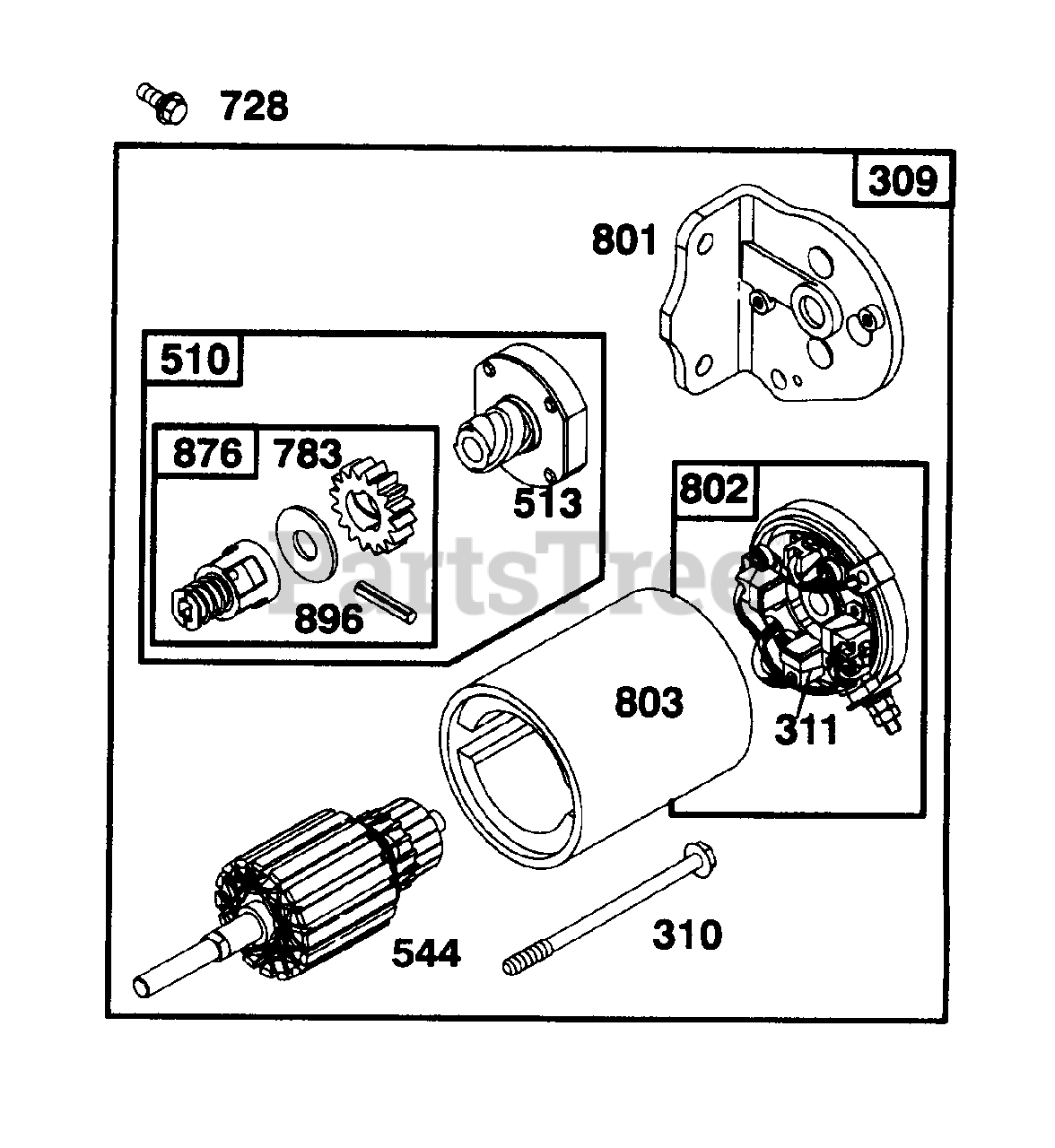

B&S 12 HP Motor Starter Ass'y Parts Diagram

  • Title

309

Cub Cadet BS-394805

Motor-Starter Assy.
(Superseded to BS-497595)

$110.99

$

In Stock, only 4 left!

0

310

Cub Cadet BS-94003

Bolt-Hex Hd.

$

$

Currently unavailable

311

Cub Cadet BS-395538

Brush Assy.

$24.99

$

Usually ships in 2-12 days

0

510

Cub Cadet BS-495878

Starter Drive Group
(Superseded to BS-696540)

$29.99

$

In Stock, only 1 left!

0

513

Cub Cadet BS-398003

Clutch Assy.
(Superseded to BS-692024)

$21.99

$

Usually ships in 2-12 days

0

544

Cub Cadet BS-390837

Armature Assy.

$159.99

$

In Stock, only 1 left!

0

728

Cub Cadet BS-94627

Screw-Hex Hd.

$

$

Not available

783

Cub Cadet BS-280104

Gear
(Superseded to BS-695708)

$6.99

$

In Stock, Qty 20+

0

801

Cub Cadet BS-394857

Drive End Cap Assy.

$56.99

$

Usually ships in 2-12 days

0

802

Cub Cadet BS-395537

End Cap Ass'y.- Commutator

$54.99

$

In Stock, only 1 left!

0

803

Cub Cadet BS-398159

Housing Ass'y.

$80.99

$

Usually ships in 2-12 days

0

876

Cub Cadet BS-495877

Retainer and Pin
(Superseded to BS-696540)

$29.99

$

In Stock, only 1 left!

0

896

Cub Cadet BS-94288

Pin-Roll
(Superseded to BS-691641)

$4.99

$

In Stock, only 1 left!

0
